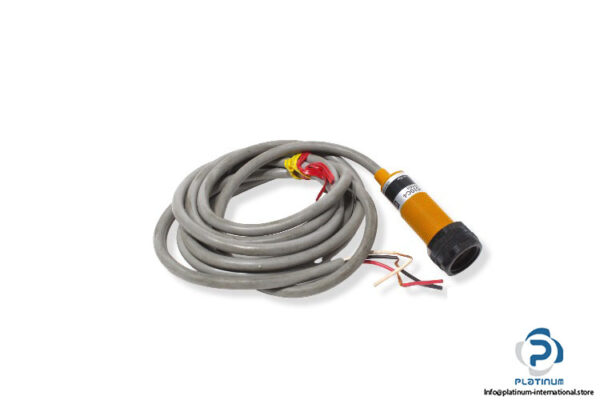

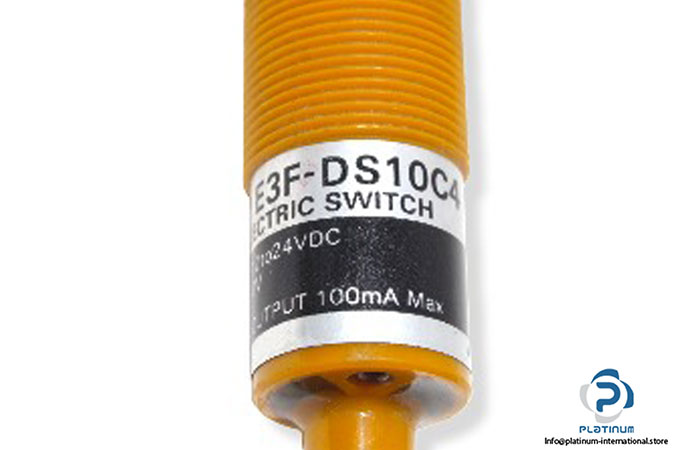

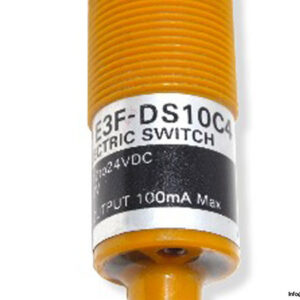

Omron E3F-DS10C4 Photoelectric Diffuse Sensor
The Omron E3F-DS10C4 is a reliable photoelectric diffuse sensor designed for precise object detection in industrial environments. With a compact housing, wide operating voltage, and robust IP54“IP67 enclosure, it delivers stable performance even in challenging conditions.
Manufacturer: Omron
Type: Photoelectric Diffuse Sensor
Model: E3F-DS10C4
Technical information
- Sensing Range: 100 mm
- Operating Voltage: 12 / 24 V DC
- Current Consumption: 8 / 15 mA
- Electrical Design: NPN
- Switching Output: Normally Open / Normally Closed
- Connector Type: PVC Cable, 2 m
- Enclosure Rating: IP54“IP67
- Ambient Operating Temperature: “25 / +65 °C
- Diameter, Housing Length: 18 mm, 60 mm
- Housing Material: Plastic
- Sensing Face Material: Heat-Resistant ABS
