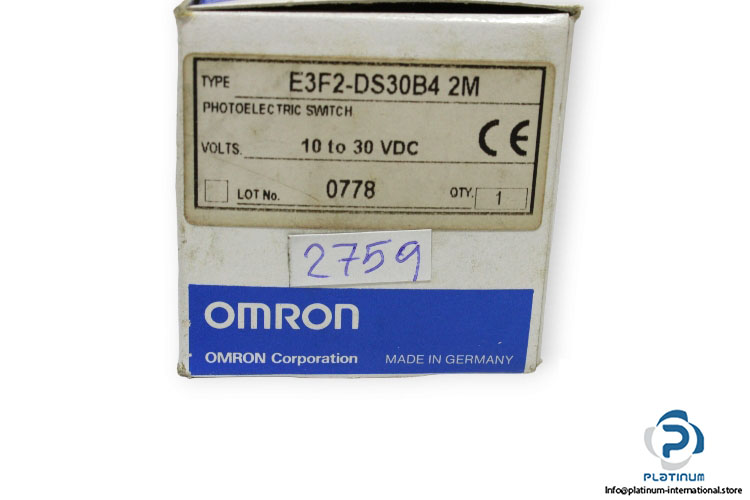

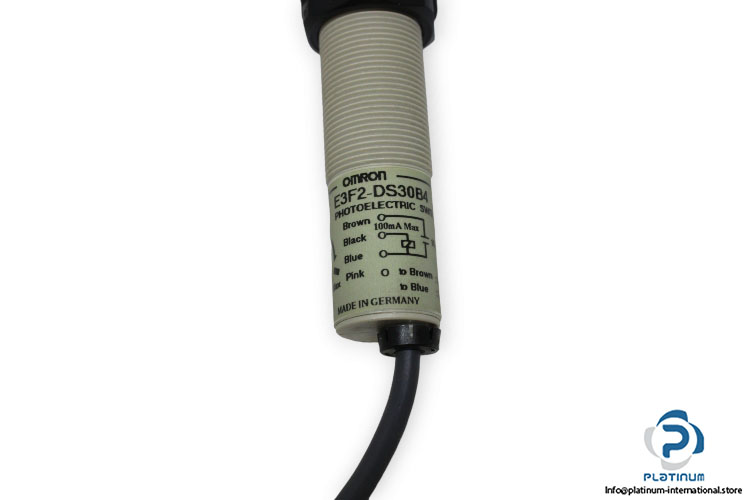

Omron E3F2DS30B4 Photoelectric Sensor (Diffuse Reflective)

The Omron E3F2DS30B4 is a compact and reliable photoelectric sensor with diffuse-reflective sensing technology. Designed for accurate object detection up to 300 mm, it offers flexible wiring options, PNP output, and IP67 protection for use in demanding industrial automation environments.

Manufacturer: Omron
Type: Photoelectric Sensor / Diffuse Reflective
Model: E3F2DS30B4

Technical information

• Sensing Method: Diffuse-Reflective
• Sensing Distance: 300 mm
• Connection Method: Pre-wired (2 m)
• Operating Voltage: 10 / 30 V DC
• Current Consumption: 30 mA max
• Operating Current: 100 mA max
• Response Time: 2.5 ms max
• Electrical Design: PNP
• Control Output: Transistor (open collector), load current 100 mA max
• Protection Degree: IP67
• Light Source (Wavelength): Infrared LED (880 nm)

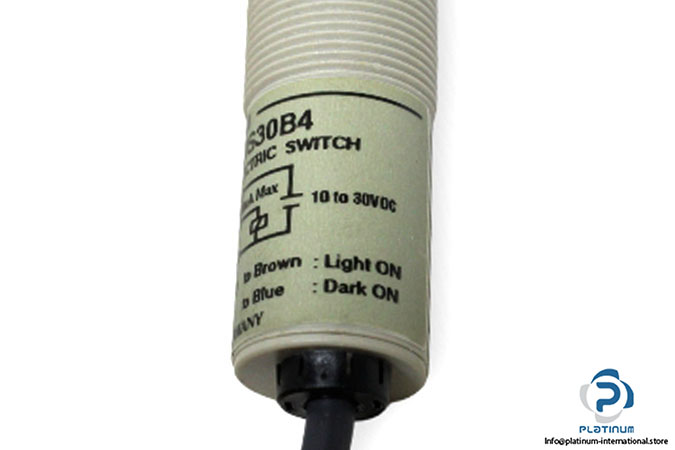

• Operation Mode: Light-ON or Dark-ON selectable by wiring

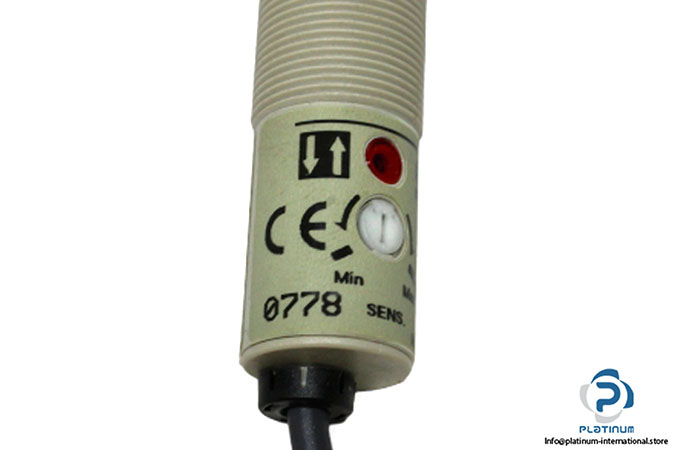

• Sensitivity Adjustment: Adjustable
• Ambient Temperature: -25 / 55 °C
• Housing Material (Case): Plastic
