Manufacturer: Omron
Type: Photoelectric Sensor

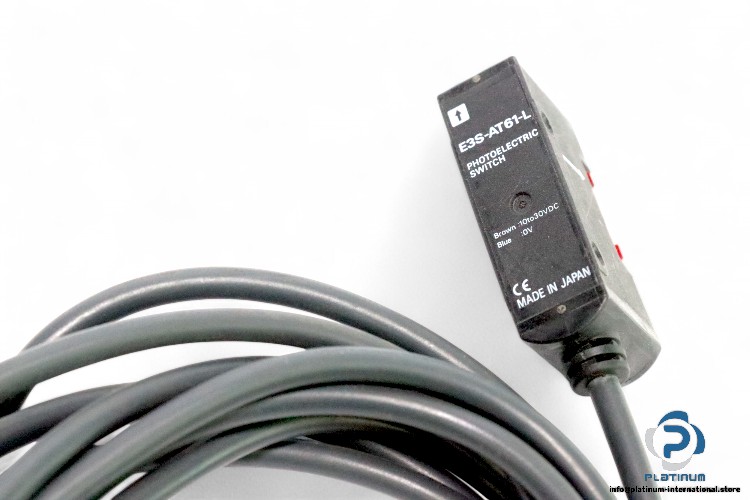

Model: E3S-AT61-L

Method of detection: Through-beam
Sensing distance: 7 m
Supply voltage: 10 to 30 VDC, ±10%
Current consumption: 40 mA Max
Output Configuration: NPN
Connection Method: M12 Connector, 4 Pin
Light source: Pulse modulated red LED (700 nm)
Operation mode: Light-ON/Dark-ON operation, switch selectable
Degree of protection (IP): IP67
Operating Temperature: -25 … 55°C
Sensitivity: Adjustable, 2-turn knob with clutch and indicator
