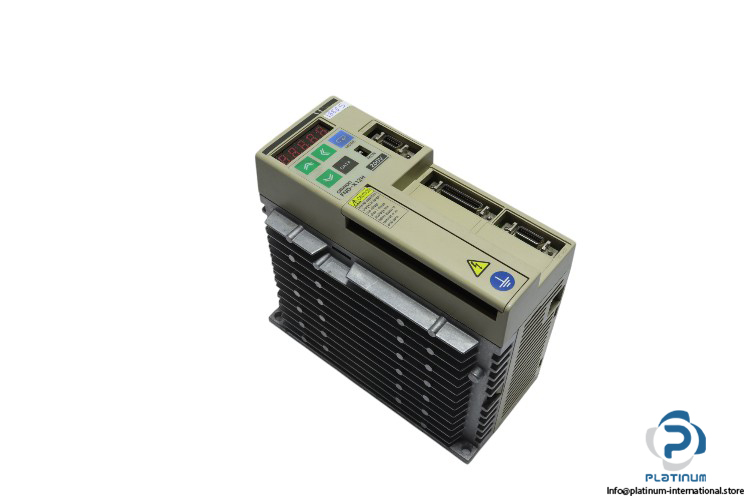

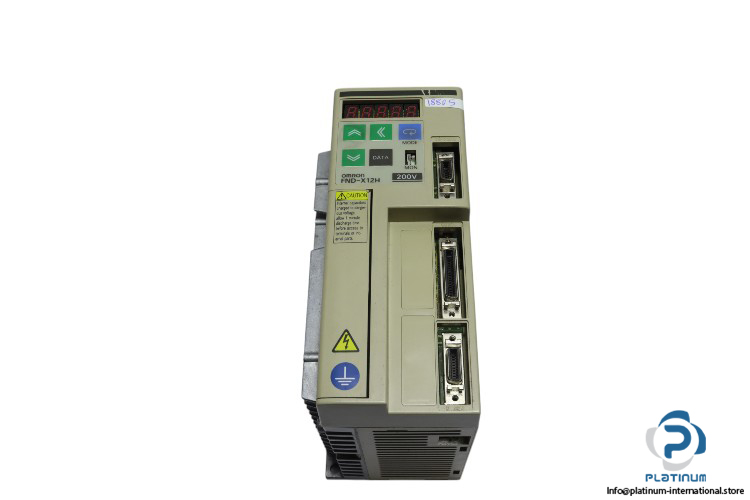

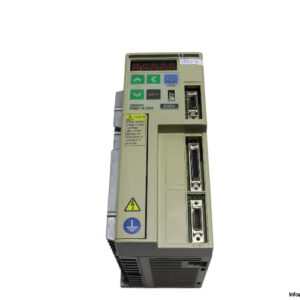

Omron FNDX12H Position Driver
The Omron FNDX12H Position Driver from the **FND-X series** is designed to offer reliable and precise control for motors in industrial systems. With a **single-phase input voltage** of **200/240 VAC** and a **frequency** range of **50/60 Hz**, it ensures smooth operation across various systems. The driver offers a **momentary maximum output current** of **12 A** and a **continuous output current** of **4.8 A**, making it ideal for heavy-duty applications. The **motor output terminals effective current** is rated at **3.4 A**, and the unit also provides a **power output** of **23 W**. The driver utilizes a **PWM method based on IGBT** with a **PWM frequency of 10 kHz**, offering excellent speed control with a **frequency response of 100 Hz**. With its compact size of **170 x 80 x 150 mm**, this unit is designed for easy integration into your industrial setup.
- Manufacturer: Omron
- Type: Position Driver
- Model: FNDX12H
- Series: FND-X
Technical Information
- Input Voltage: Single-phase 200/240 VAC
- Input Frequency: 50/60 Hz
- Momentary Maximum Output Current (0-P): 12 A
- Continuous Output Current (0-P): 4.8 A
- Power: 23 W
- Motor Output Terminals Effective Current: 3.4 A
- Tightening Torque: 1.3 N.m
- Inverter Method: PWM method based on IGBT
- PWM Frequency: 10 kHz
- Frequency Response (Speed Control): 100 Hz
- Dimensions: 170 x 80 x 150 mm
The Omron FNDX12H Position Driver is an excellent solution for controlling motors in industrial settings, offering reliable speed control and effective current management for demanding applications.
