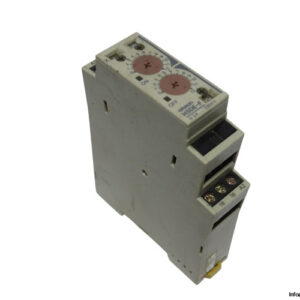

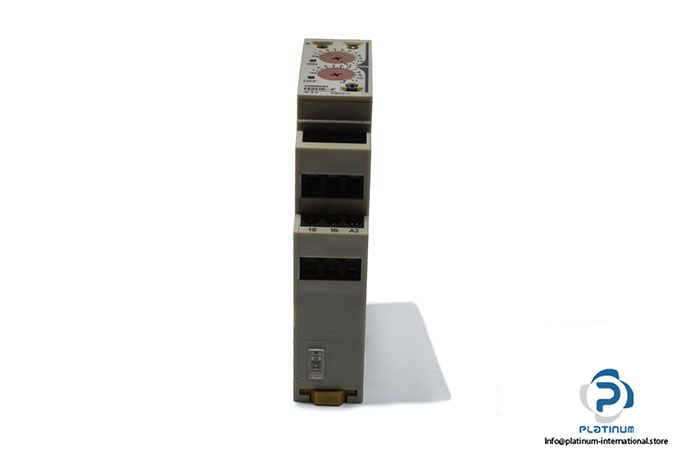

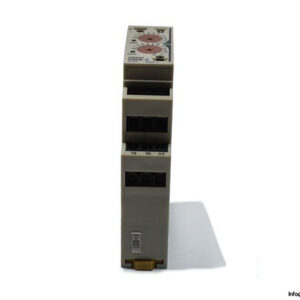

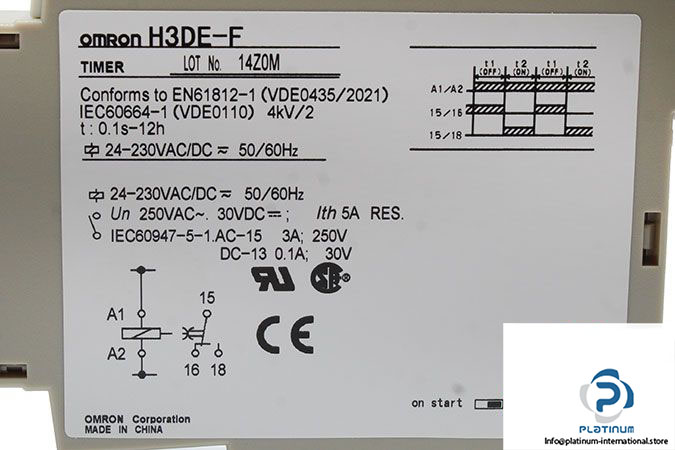

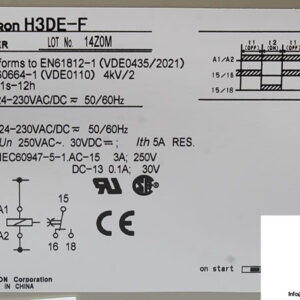

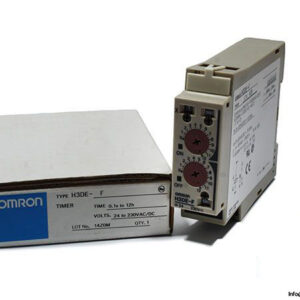

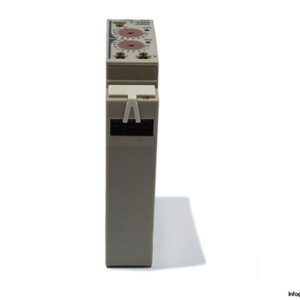

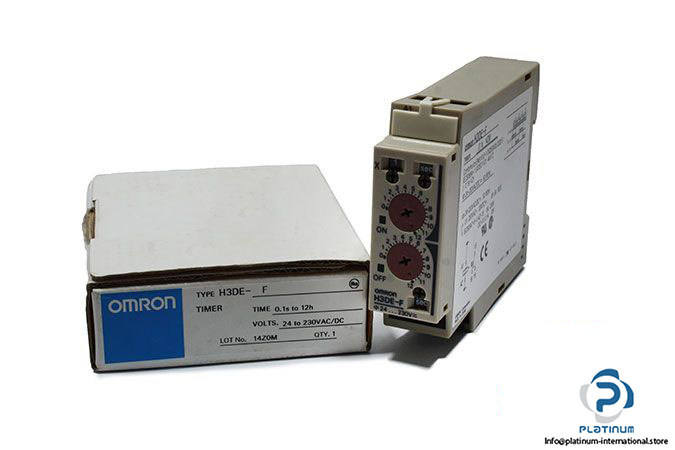

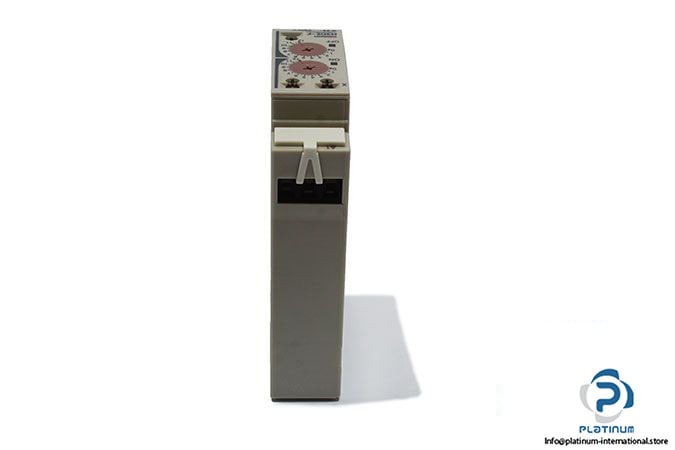

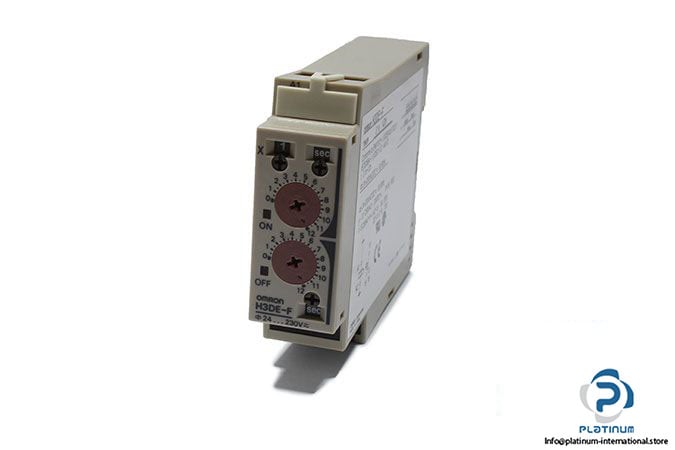

Manufacturer: OMRON

Type: Soli-State Twin Timer

Model: H3DE-F

Rated Supply Voltage: 24 … 230 VAC/VDC

Frequency: 50/60 Hz

Power Reset: Min. power-off time: 0.1 s

Reset Voltage: 2.4 VAC/DC max.

Power Consumption: AC: Approx. 3.1 VA (1.8 W) at 230 VAC / DC: Approx. 0.8 W at 24 VDC

Control Output:

• 5 A at 250 VAC with resistive load (cosφ = 1)
• 5 A at 30 VDC with resistive load (cosφ = 1)

Output Type: Relay: SPDT

Time Setting: 0.1 s … 12 h

Case Color: Light gray

Degree of Protection: IP30 (IP20 for terminal block)

Ambient Temperature: −10 … 55°C

Dimensions: 22.5 X 100 X 75 mm

Weight: Approx. 0.11 Kg
