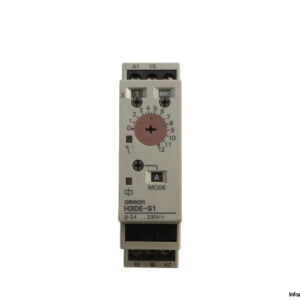

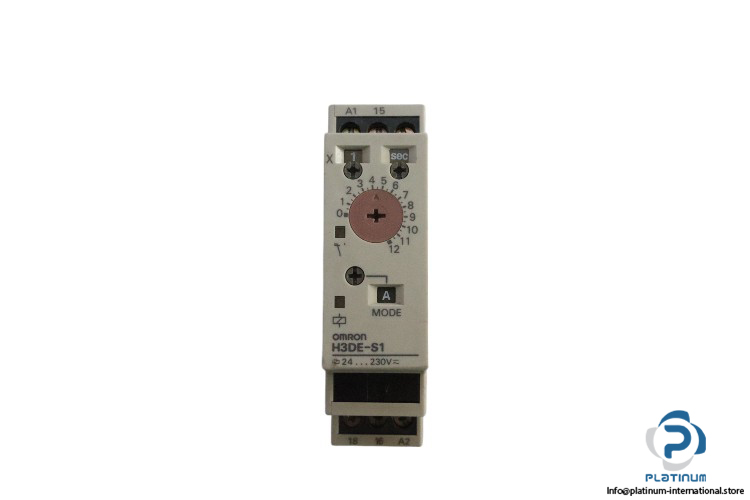

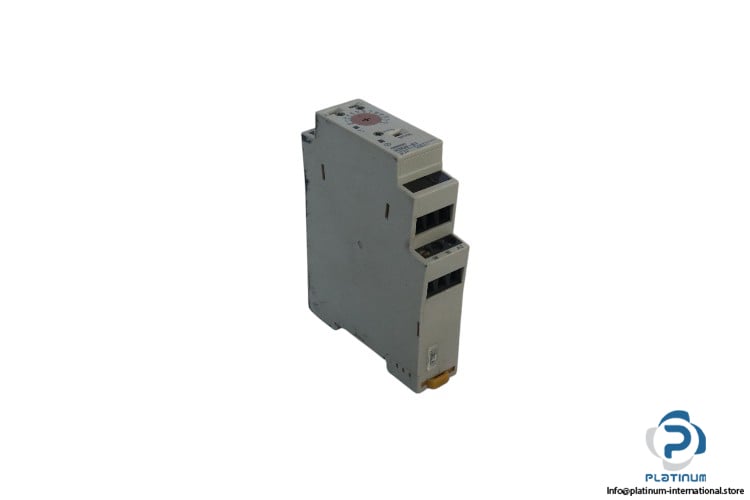

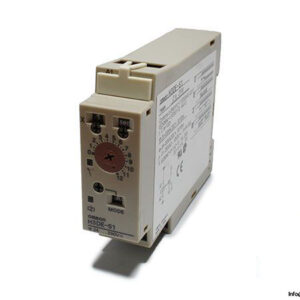

Omron Solid-State Timer H3DES1

Omron Solid-State Timer H3DES1 is designed for accurate time delay control in various industrial applications. It offers precise timing functions with a wide range of time settings and voltage ratings. Below are the key technical specifications:

• Manufacturer: Omron
• Type: Solid-State Timer
• Model: H3DES1

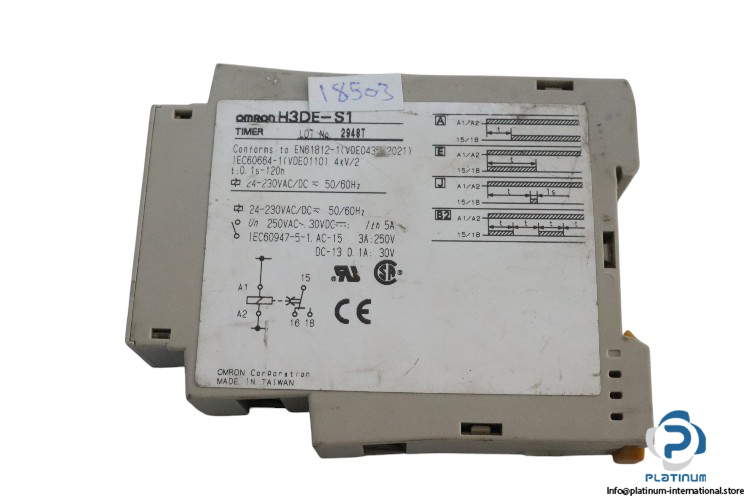

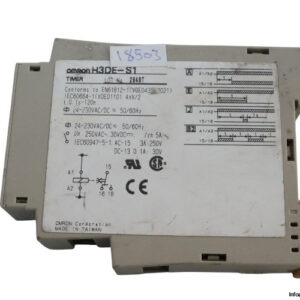

• Lot No.: 2948T

Technical Data:

• Rated Supply Voltage: 24 to 230 V AC/DC
• Frequency: 50/60 Hz
• Time Setting: 0.1 s to 120 hr
• Power Consumption: AC: approx. 2.7 VA (1.6 W) at 230 VAC / DC: approx. 0.7 W at 24 VDC
• Thermal Current Ith: 5 A
• Nominal Voltage Un: 250 V AC, 30 V DC
• Contact Output: 5 A at 250 V AC with resistive load / 0.1 A at 30 VDC with resistive load
• Standard: IEC60947-5-1
• Ambient Temperature: -10 to 55°C
• Dimensions: 22.5 X 100 X 75.6 mm
