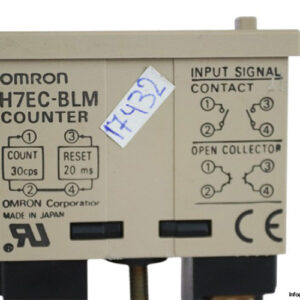

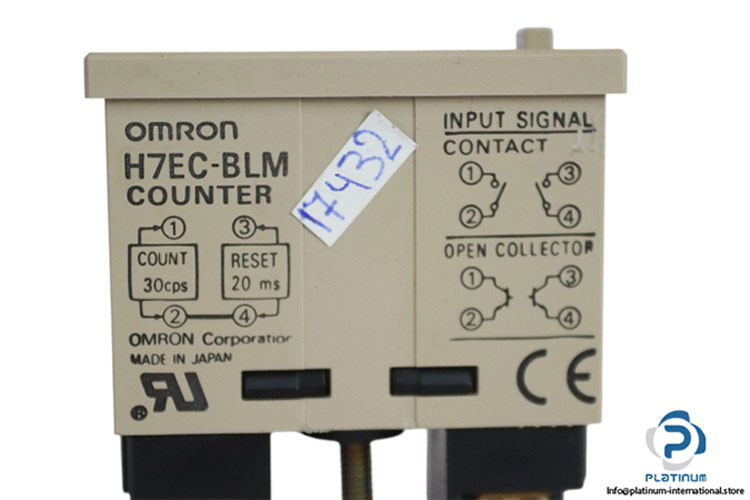

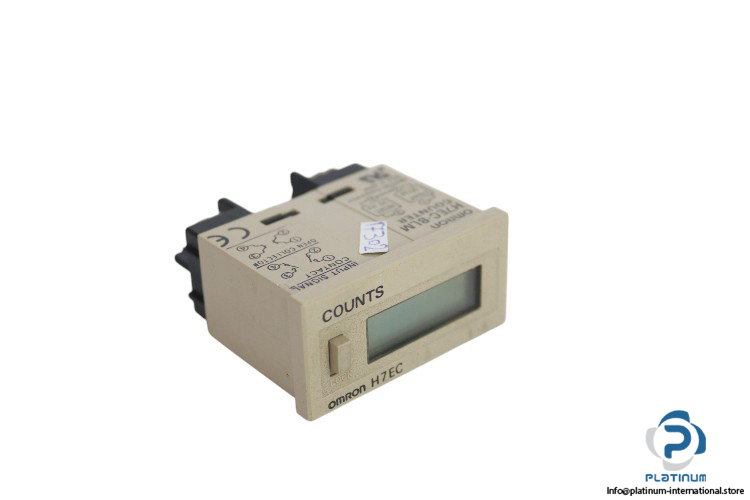

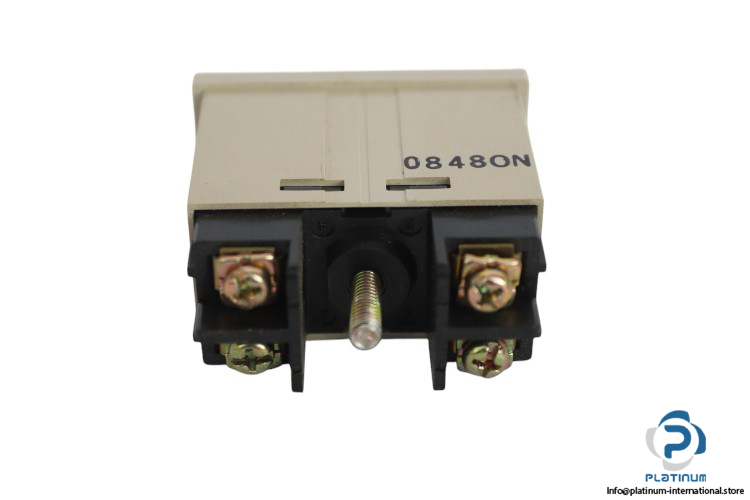

OMRON Self-Powered Counter H7EC-BLM
The OMRON H7EC-BLM is a robust and efficient self-powered counter featuring a 6-digit display for precise counting in industrial and commercial applications. It offers a maximum counting speed of 30 cp, a quick reset system at 20 ms, and high insulation resistance for enhanced reliability. The DIN-sized design and light gray case provide a professional and compact solution, capable of operating in a wide ambient temperature range.
Specifications:
- Manufacturer: OMRON
- Type: Self-Powered Counter
- Model: H7EC-BLM
- Number of Digits: 6
- Max. Counting Speed: 30 counts per second (cp)
- Reset System: 20 ms
- Insulation Resistance: 100 M„¦ min. (at 500 VDC)
- Impulse Withstand Voltage: 4.5 kV
- Size: DIN-sized 48 x 24 mm
- Case Color: Light Gray
- Ambient Temperature: “10°C to 55°C
