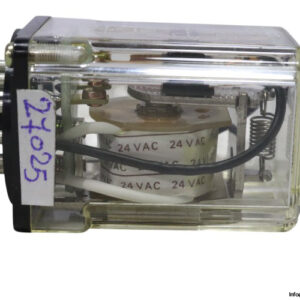

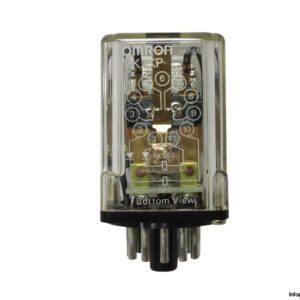

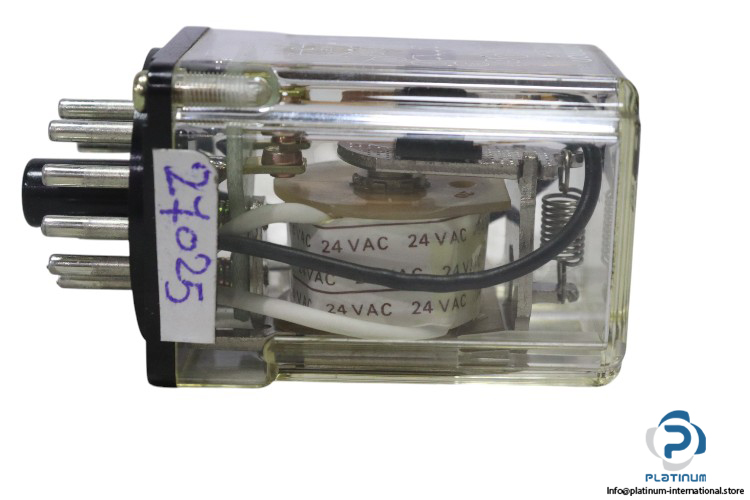

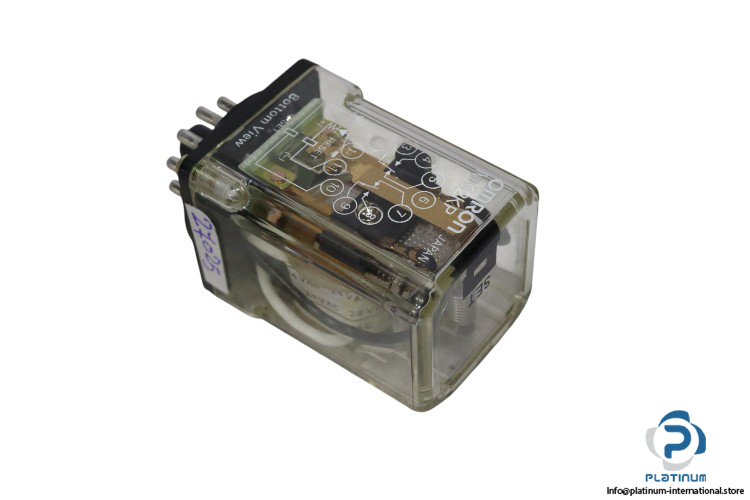

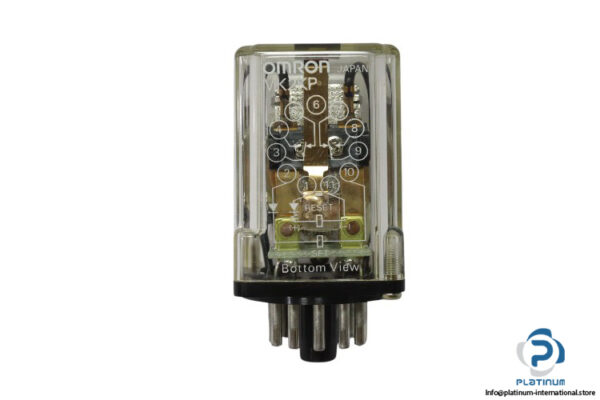

Omron MK2KP “ Latching Relay
The Omron MK2KP is a high-performance latching relay designed to deliver reliable switching for industrial and electrical applications. With a robust structure, it provides excellent performance with a wide range of voltage and current capacities.
- Manufacturer: Omron
- Type: Latching Relay
- Model: MK2KP

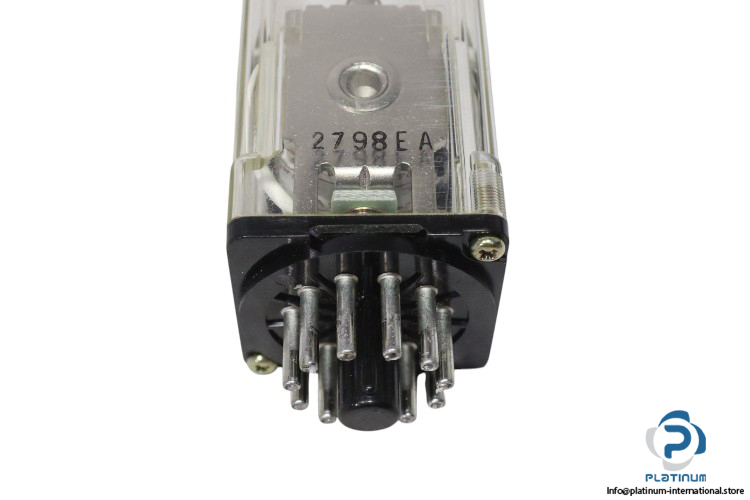

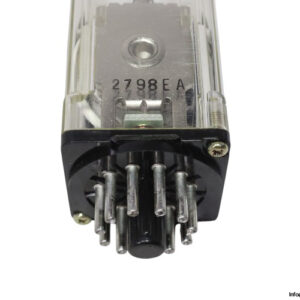

- Ref. No.: 2798EA
- Series: MK
Technical Information:
- Coil Voltage: 24 V AC
- Coil Resistance: 105 ohms at 66 mA, 965 ohms at 10.8 mA
- Release Time: 30 ms max.
- No. of Poles: 2
- No. of Pins: 11
- Contact Structure: Single
- Maximum Contact Voltage: 250 VAC, 250 VDC
- Maximum Contact Current: 5 A
- Contact Materials: Ag
- Ambient Operating Temperature: -10 to 40° C
- Dimensions: 34.5 X 52.5 X 34.5 mm
