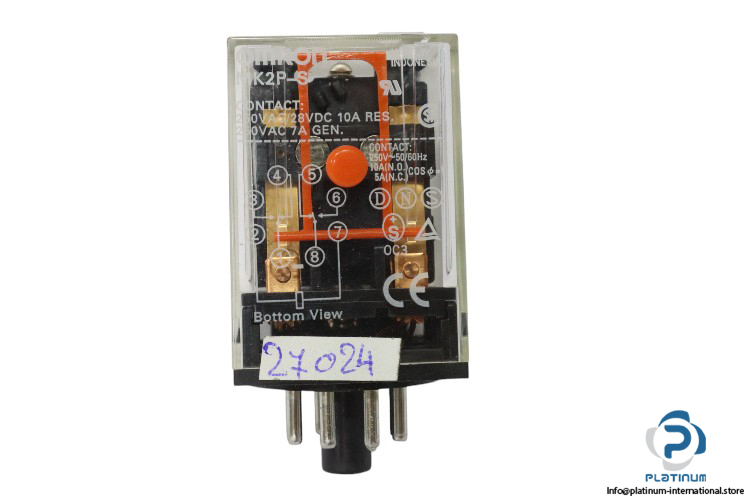

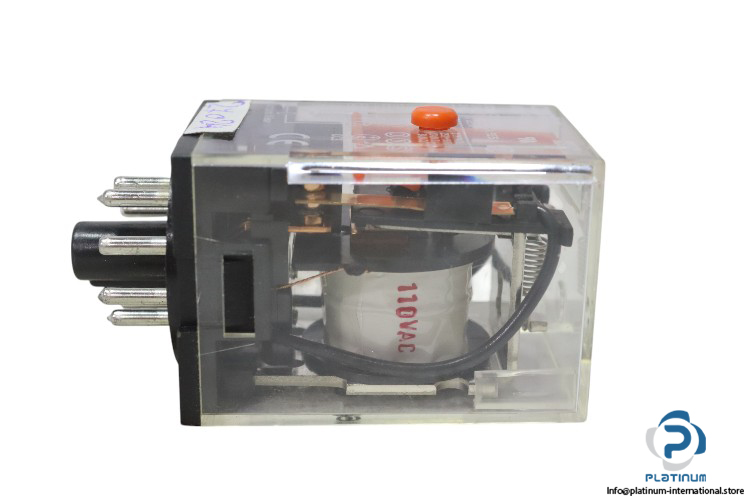

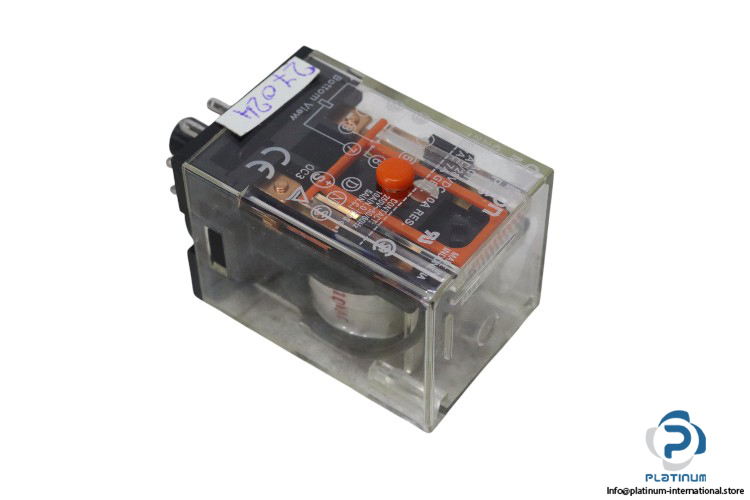

Omron MK2P-S “ General-purpose Relay

The Omron MK2P-S general-purpose relay is designed for versatile use in various industrial and automation systems. Featuring reliable Ag contact materials, a plug-in terminal, and a broad operating temperature range, it is perfect for both AC and DC circuits.

• Manufacturer: Omron
• Type: General-purpose Relay
• Model: MK2P-S

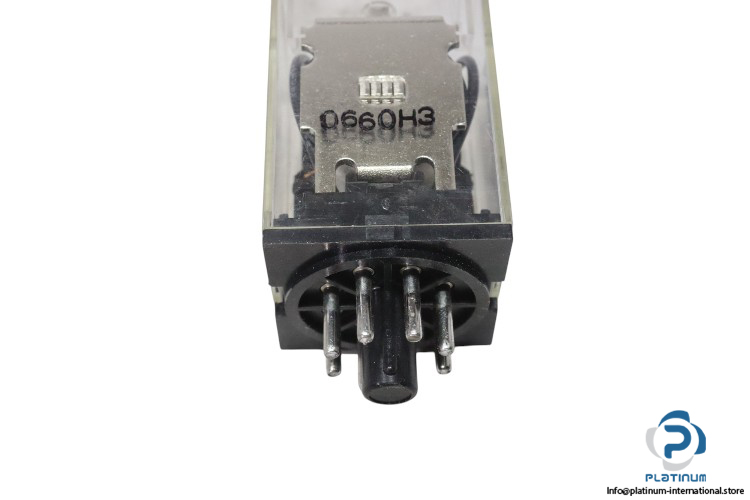

• Ref. No.: 0660H3
• Series: MK

Technical Information:

• Coil Voltage: 110 V AC
• Contact Resistance: 50 mohm
• Release Time: 20 ms max.
• No. of Poles: 2
• Contact Voltage: 250 V AC, 28 V DC
• Contact Current Rating: 10A, 7A
• Contact Materials: Ag
• Terminal: Plug-in
• Ambient Operating Temperature: -10 to 40° C
• Dimensions: 34.5 X 52.5 X 34.5 mm
