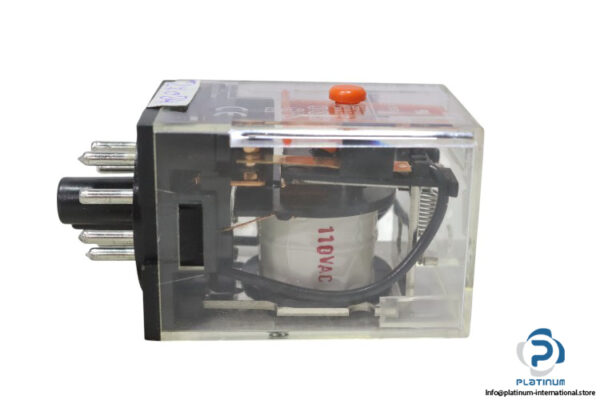

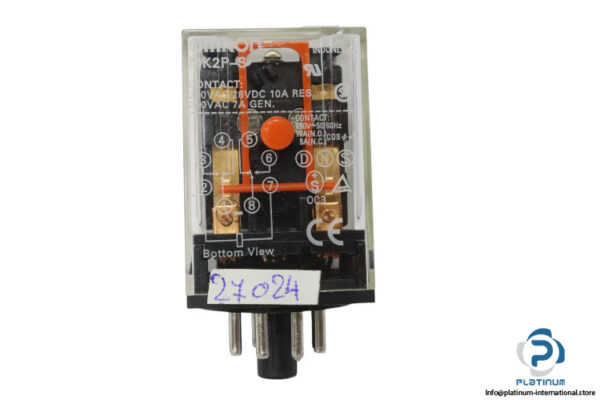

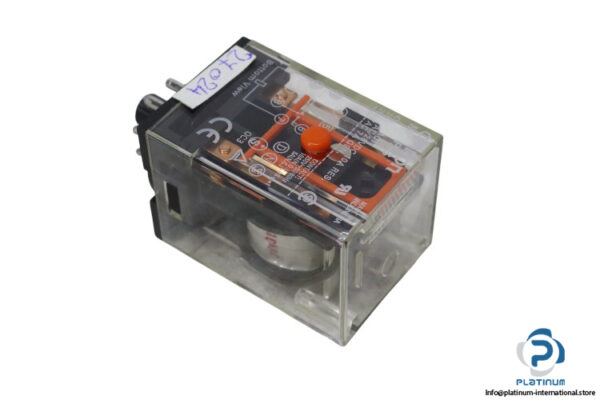

Omron MK2P-S “ General-purpose Relay
The Omron MK2P-S general-purpose relay is designed for versatile use in various industrial and automation systems. Featuring reliable Ag contact materials, a plug-in terminal, and a broad operating temperature range, it is perfect for both AC and DC circuits.
- Manufacturer: Omron
- Type: General-purpose Relay
- Model: MK2P-S

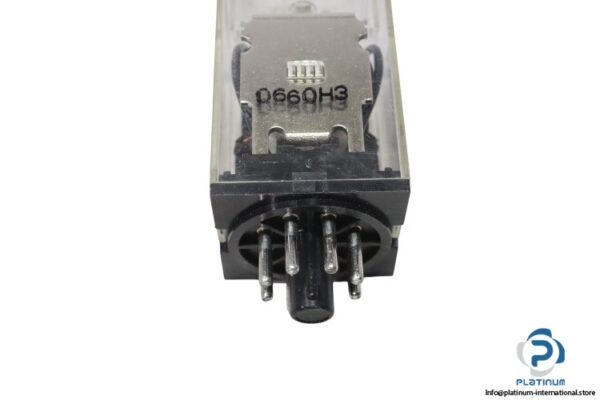

- Ref. No.: 0660H3
- Series: MK
Technical Information:
- Coil Voltage: 110 V AC
- Contact Resistance: 50 mohm
- Release Time: 20 ms max.
- No. of Poles: 2
- Contact Voltage: 250 V AC, 28 V DC
- Contact Current Rating: 10A, 7A
- Contact Materials: Ag
- Terminal: Plug-in
- Ambient Operating Temperature: -10 to 40° C
- Dimensions: 34.5 X 52.5 X 34.5 mm
