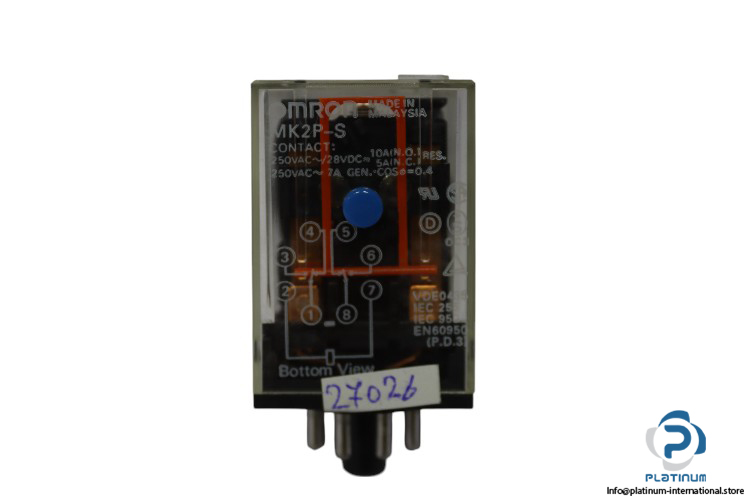

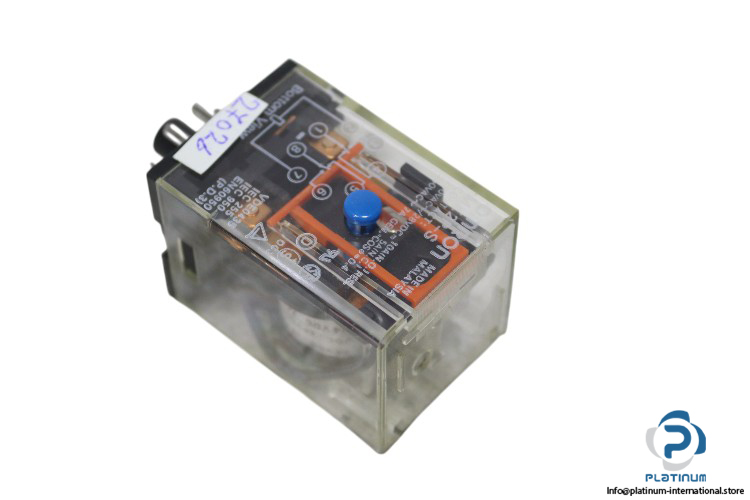

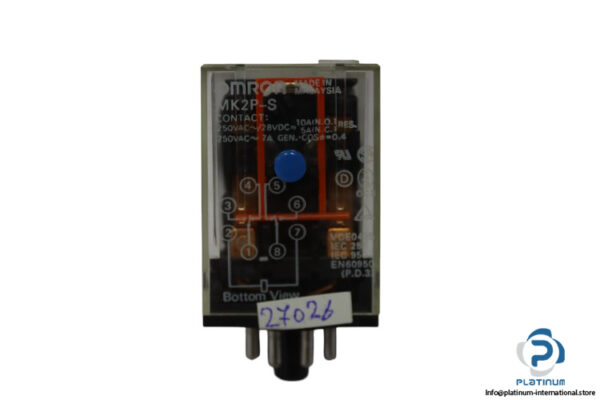

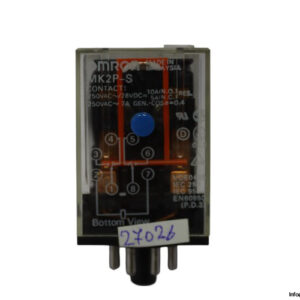

Omron MK2PS “ General-purpose Relay

The Omron MK2PS general-purpose relay is engineered for versatile use in electrical control systems. With a reliable design and high performance, it offers quick release times and an extended contact life, making it suitable for a variety of industrial and automation applications.

• Manufacturer: Omron
• Type: General-purpose Relay
• Model: MK2PS

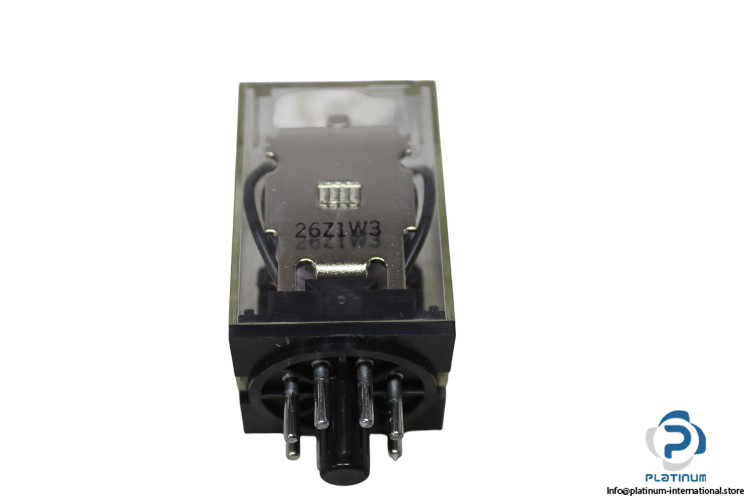

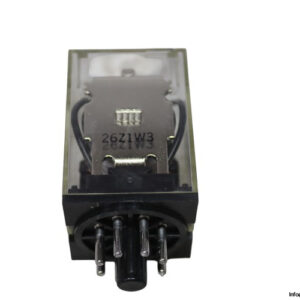

• Ref. No.: 26Z1W3
• Series: MK

Technical Information:

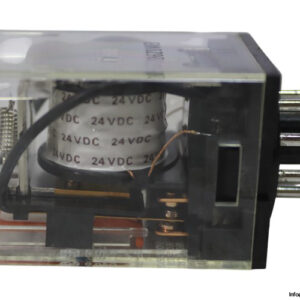

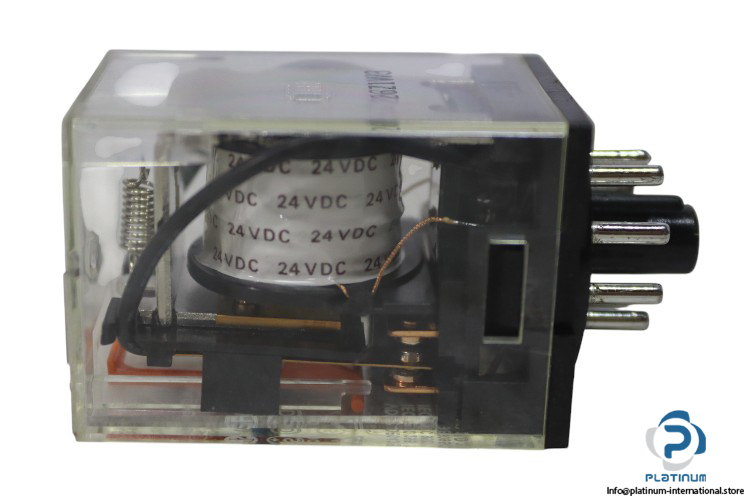

• Coil Voltage: 24 V DC
• Power Consumption: 1.5 W
• Contact Resistance: 50 mohm
• Coil Resistance: 430 ohm
• Release Time: 20 ms max.
• No. of Poles: 2
• No. of Pins: 8
• Contact Voltage: 250 V AC, 28 V DC
• Contact Current Rating: 10A, 5A
• Contact Form: DPDT
• Contact Materials: Ag
• Terminal: Plug-in
• Ambient Operating Temperature: -10 to 40°C
• Dimensions: 34.5 x 52.5 x 34.5 mm
