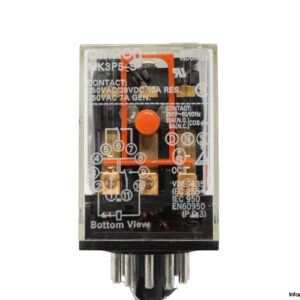

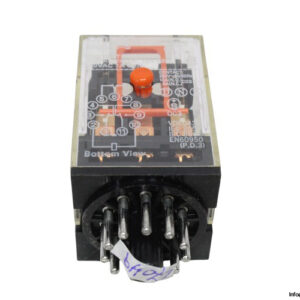

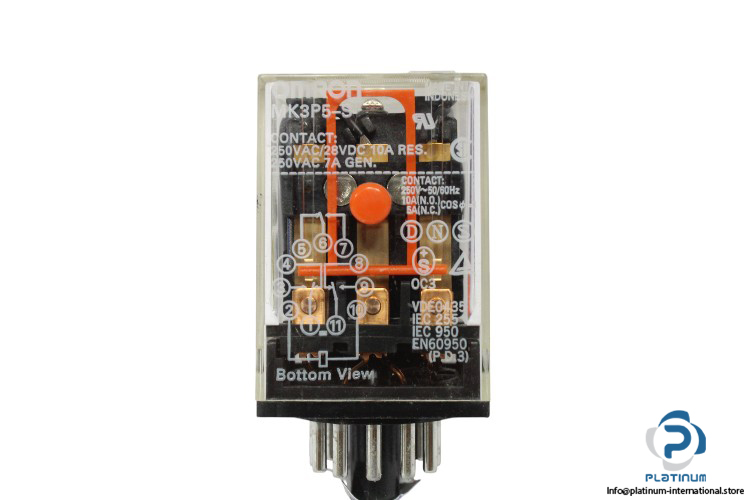

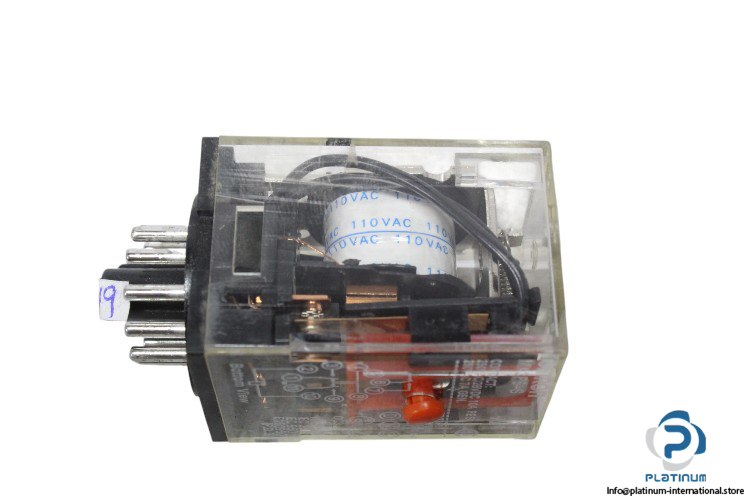

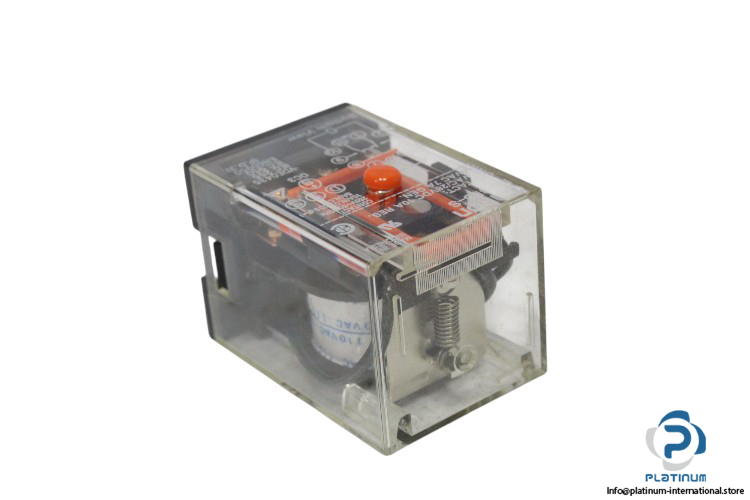

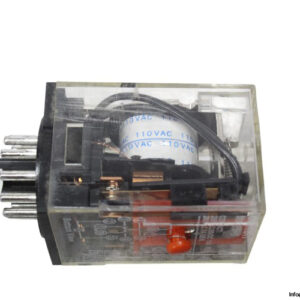

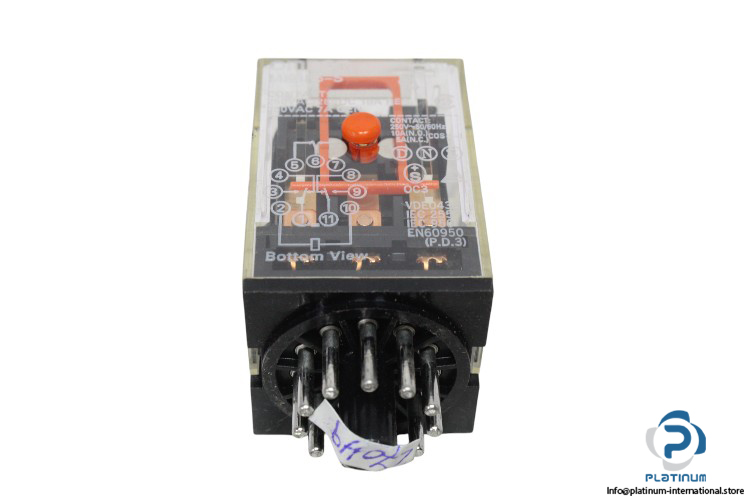

Omron MK3P-5-S “ General Purpose Relay

The Omron MK3P-5-S is a versatile and reliable general-purpose relay designed for various industrial and control applications. This plug-in relay offers high contact ratings and quick operate time, ensuring optimal performance across different operational environments.

• Manufacturer: Omron
• Type: General Purpose Relay
• Model: MK3P-5-S

Technical Information:

• Coil Voltage: 110 V AC
• Contact Rating: 3 PDT (250 V AC, 10A (NO), 250 V AC, 5A (NC))
• Frequency: 50/60 Hz
• Terminal: Plug-in
• Rated Current: 21 A
• Power Consumption: 2.3/2.7 VA, 50/60 Hz
• No. of Pins: 11
• Operate Time: 20 ms max.
• Operating Temperature: -10 to +40°C
• Dimensions: 34.5 x 34.5 x 52.5 mm
• Standard: VDE 0435, IEC 255, IEC 950, EN60950
