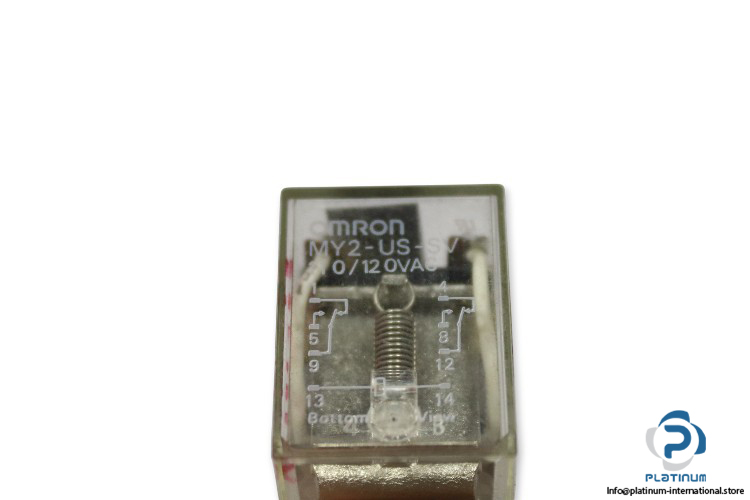

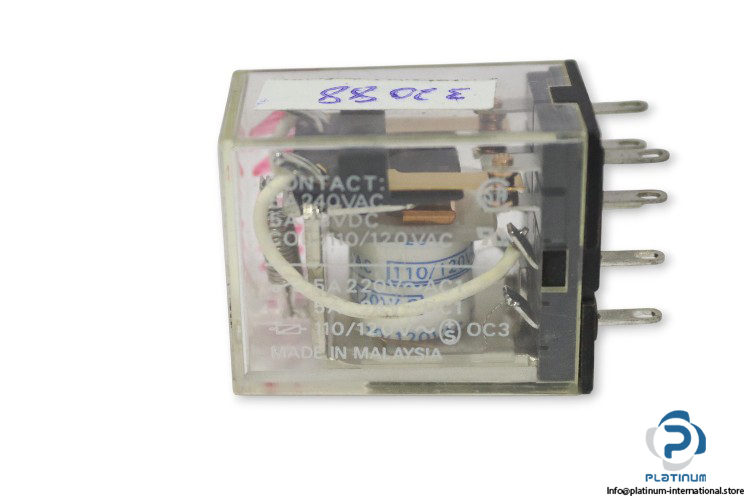

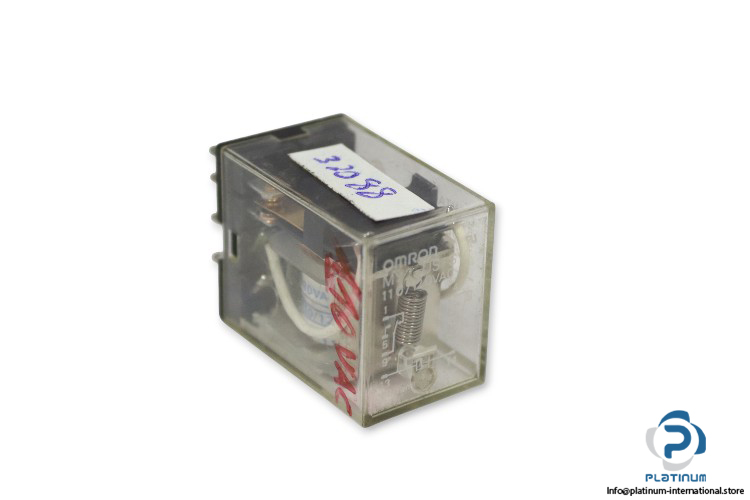

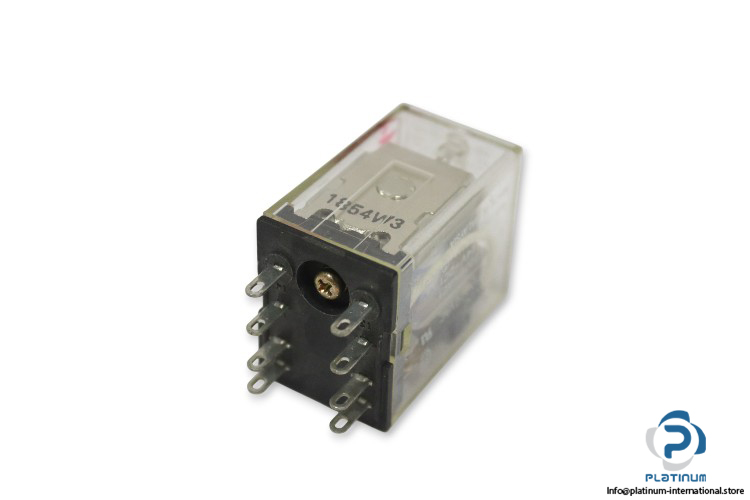

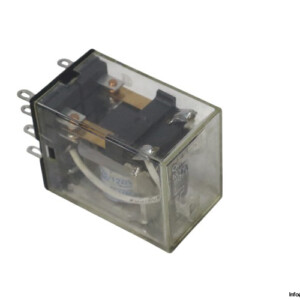

Omron MY2USSV Miniature Power Relay
The Omron MY2USSV Miniature Power Relay is a compact and reliable relay designed for general-purpose switching. With durable contacts, fast response time, and plug-in terminal design, it is suitable for a wide range of control and automation applications.
Manufacturer: Omron
Type: Miniature Power Relay
Model: MY2USSV
Ref. No.: 1854W3
Series: MY
Technical Information
- Coil Voltage: 110 to 120 V AC
- Power Consumption: Approx. 0.9 to 1.3 VA at 60 Hz
- Contact Resistance: 50 milliohm
- Coil Resistance: 4430 ohm
- Release Time: 20 milliseconds maximum
- No. of Poles: 2
- Contact Voltage: 220 V AC
- Contact Current Rating: 5 A
- Contact Form: DPDT
- Contact Method: Single
- Contact Materials: Silver (Ag)
- Terminal: Plug-in
- Ambient Operating Temperature: minus 55 to 70 degree Celsius
- Dimensions: 20 x 34 x 27 millimeters
