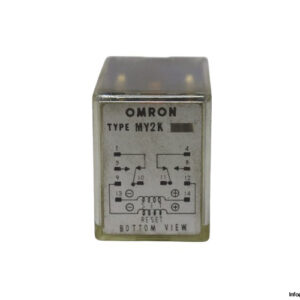

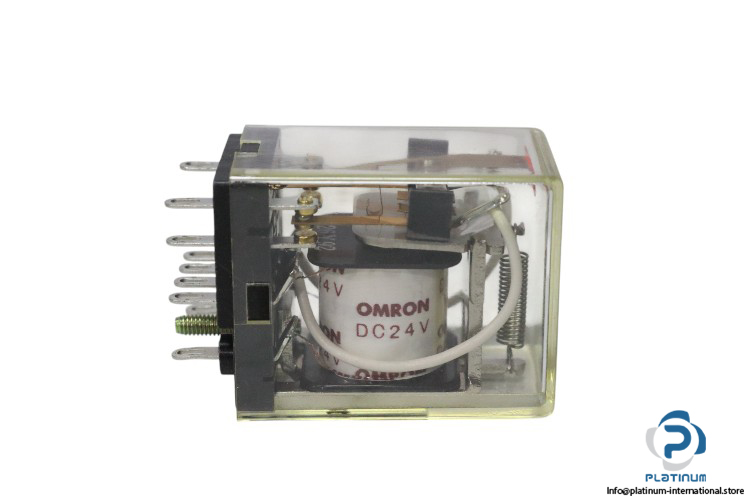

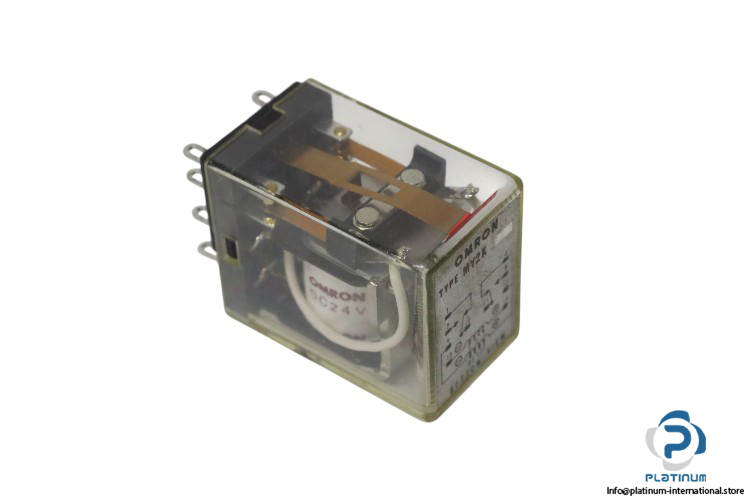

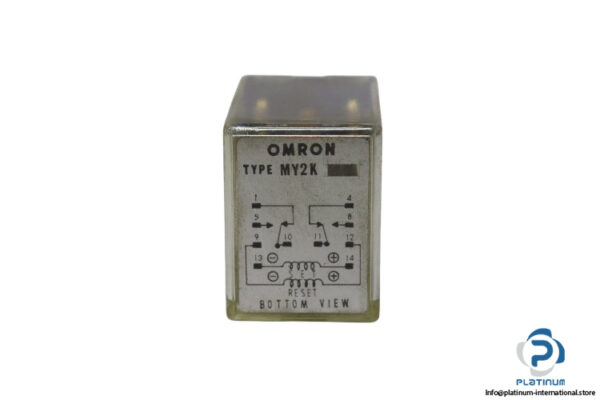

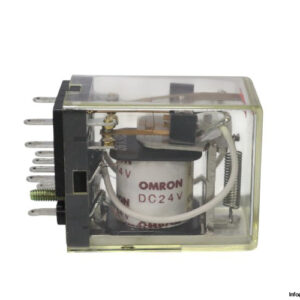

Omron MY2K “ General-purpose Latching Relay

The Omron MY2K is a versatile general-purpose latching relay designed for reliable operation in various electrical systems. With a compact design and gold-plated contacts, it ensures stable performance across a wide range of temperatures and applications.

• Manufacturer: Omron
• Type: General-purpose Latching Relay
• Model: MY2K

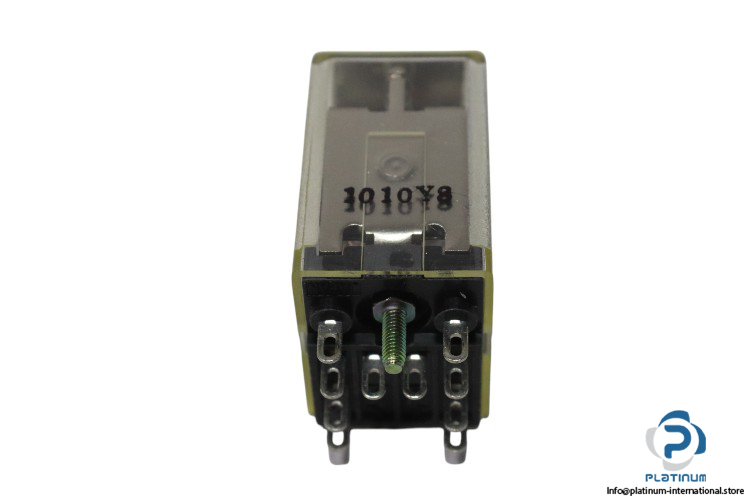

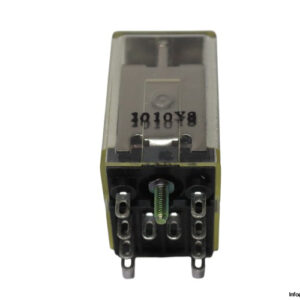

• Ref. No.: 1010Y8
• Series: MYK

Technical Information:

• Coil Voltage: 24 V DC
• Coil Resistance: 470 (Set Coil) ohm, 940 (Reset Coil) ohm
• Switching Current: 3 A
• Contact Configuration: DPDT
• No. of Poles: 2
• Maximum Switching Voltage: 250 V AC, 125 V DC
• Contact Structure: Single
• Contact Materials: Gold Plated
• Terminal Type: PCB Pin
• Ambient Operating Temperature: -55 to 60° C
• Dimensions: 28 X 36 X 21.5 mm
