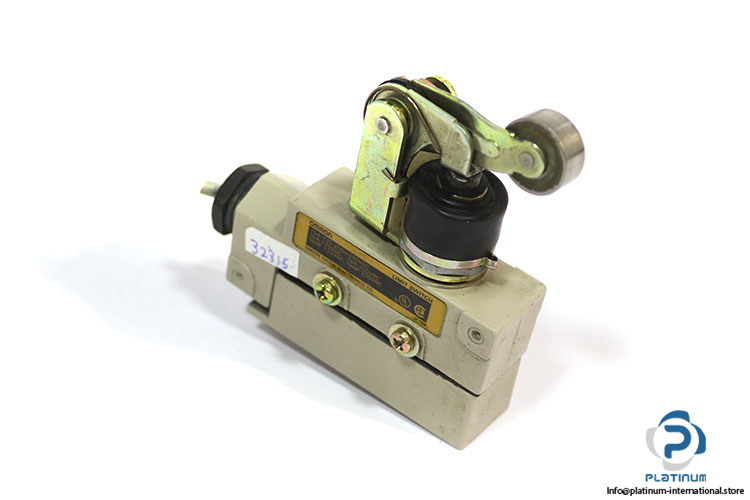

OMRON ZE-NA2-2G Roller Limit Switch
The OMRON ZE-NA2-2G is a high-reliability roller limit switch designed for precise position sensing in industrial automation systems. Built with a durable roller lever actuator and SPDT output, it ensures accurate mechanical detection and long operational life. Its compact body, IP65 protection, and versatile mounting options make it suitable for machinery, conveyors, and safety automation applications.
Manufacturer: OMRON
Type: Roller Limit Switch
Model: ZE-NA2-2G
Technical Information
- Actuator Type: Roller Lever, Ø19.1 mm
- Output Configuration: SPDT
- Contact Current (Max): 10 A
- Switched Voltage: Max. 250 V AC / Max. 250 V DC
- Connection: G 1/2″
- IP Rating: IP65
- Body Dimensions: 25 × 34.5 × 86 mm
- Number of Mounting Holes: 2
- Operating Temperature: ˆ’10 / +80 °C
- AC Contacts Rating @R (Resistive Load): 10 A / 250 V AC
- DC Contacts Rating @R (Resistive Load): 10 A / 30 V DC
- Mounting Holes Pitch: 25 mm
