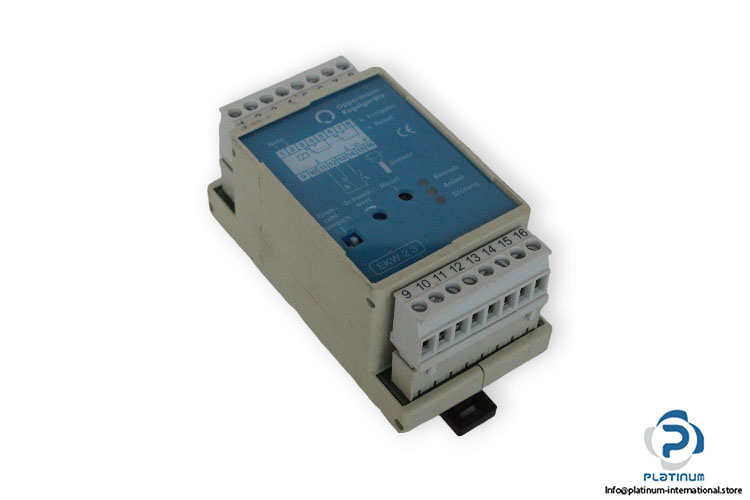

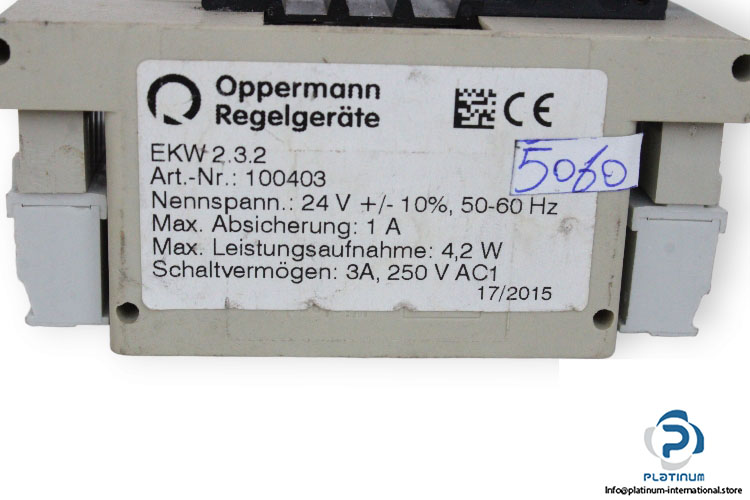

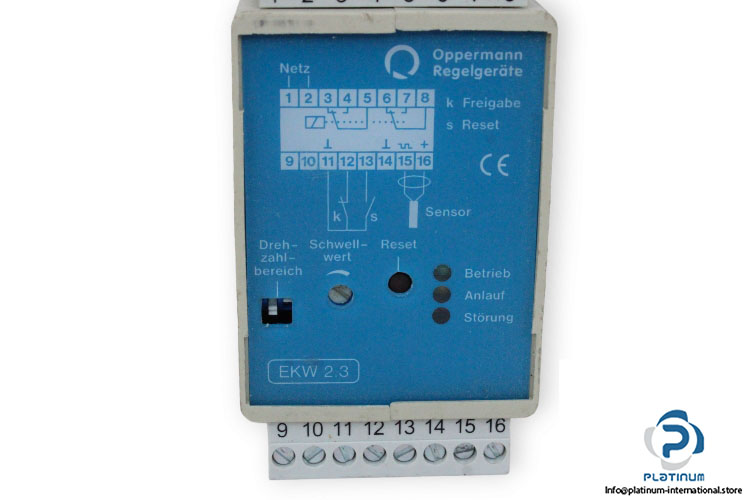

Manufacture: Oppermann Regelgerate
Type: Electronic V-belt monitoring
Model: EKW 2.3.2
Art. No.: 100403

Supply voltage: 24 V
Frequency: 50 … 60 Hz
Power consumption: 50 mA
Contacts type: 2 Changeover contacts (Single pole double through)
switching capacity: 3A, 250 V AC
External fuse protection: max. 1 A
Power max.: 4.2 W
Working range: 100 … 9.000 rpm
Setting range: 100 … 6.000 rpm
Operating principle: lower deviation
Operating Temperature: 0 … +40°C
Degree of Protection: IP 40
Terminals: pluggable to the base plate
Housing: High impact polystyrene
Dimensions: 96 x 48 x 60 mm
