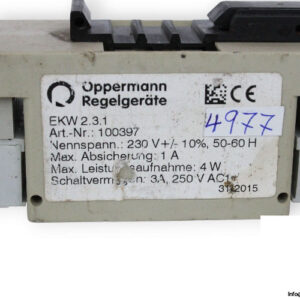

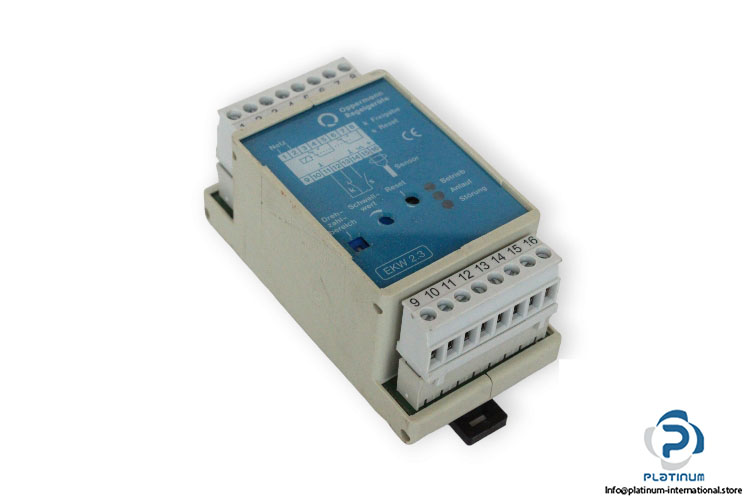

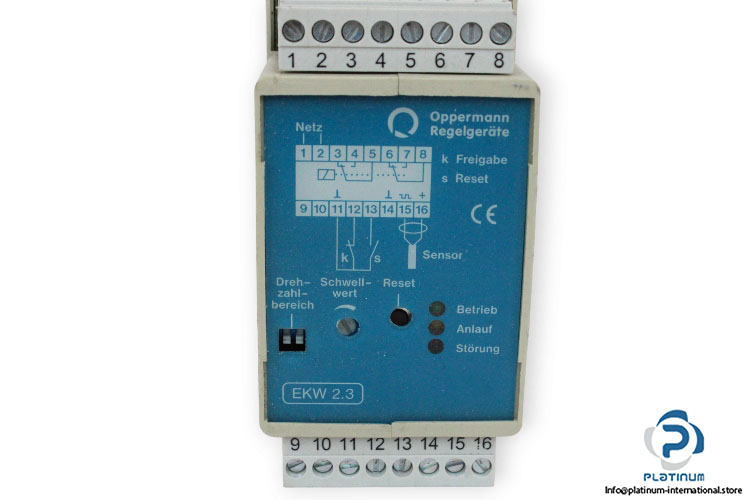

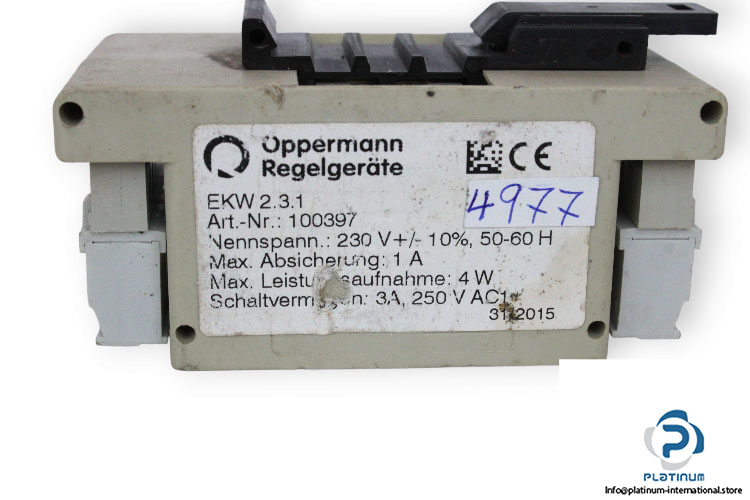

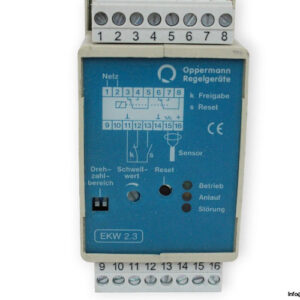

Manufacturer: Oppermann Regelgerate
Type: Electronic V-Belt Monitoring Device
Model: EKW 2.3.1
Part No: 1000397
Supply Voltage: 15 … 18 V DC
Nominal Voltage: 230 V
Power Consumption: 4 W
Contact Voltage: 250 V AC
Contact Current: 3 A
Switching Type: 2 Changeover
Housing: High Impact Polystyrene
Terminals: Pluggable to The Base Plate
Ambient Temperature: 0 … 40 °C
Dimensions: 96 X 48 X 60 mm
Protection Class: IP40
