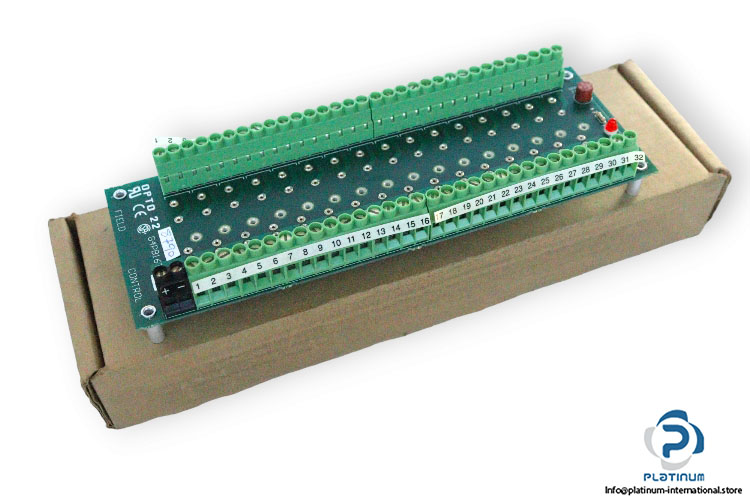

Manufacture: OPTO 22
Type: 16-channel I/O Module Rack with Terminal Strip

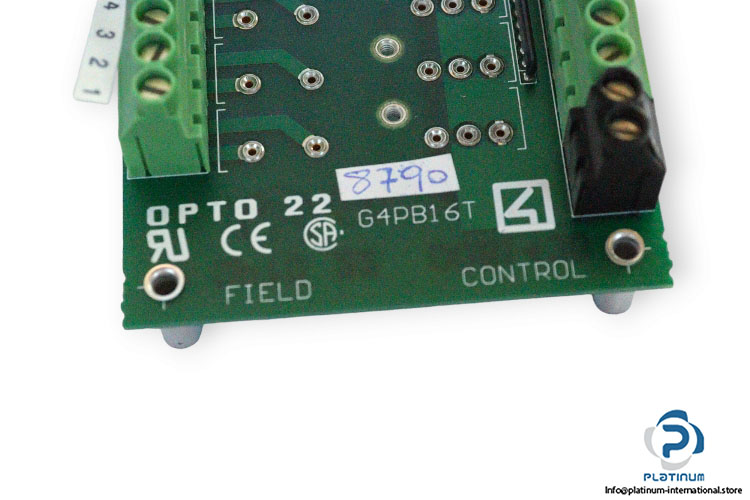

Model: G4PB16T

Features
*Requires minimum panel space
*Built-in fuse tester
*Spare fuse on board
*Screw terminals on both control and field connections
*UL recognized, CSA certified, CE and UKCA approved
*Uses a single 5, 15, or 24 VDC power supply for control power
Terminal: Screw-type barrier strip accommodates up to 10 AWG wire
No. of channels: 16
Torque: 0.6 N-m
Operating temperature: 0 … 70°C
Dimensions: 241.3 x 82.6 x 58.9 mm
