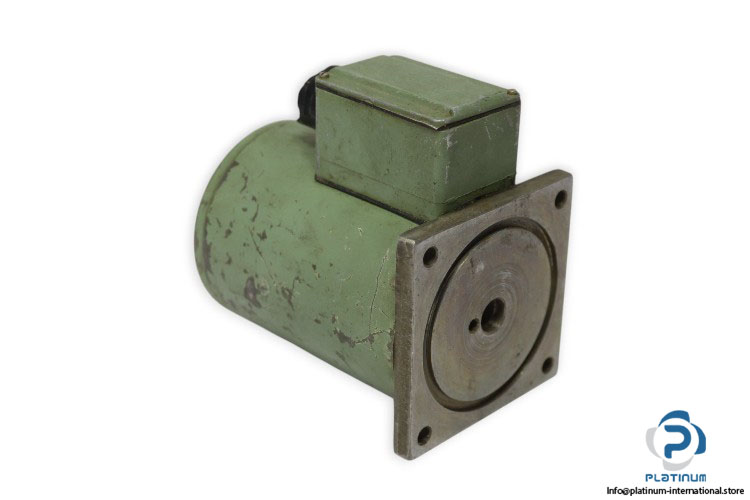

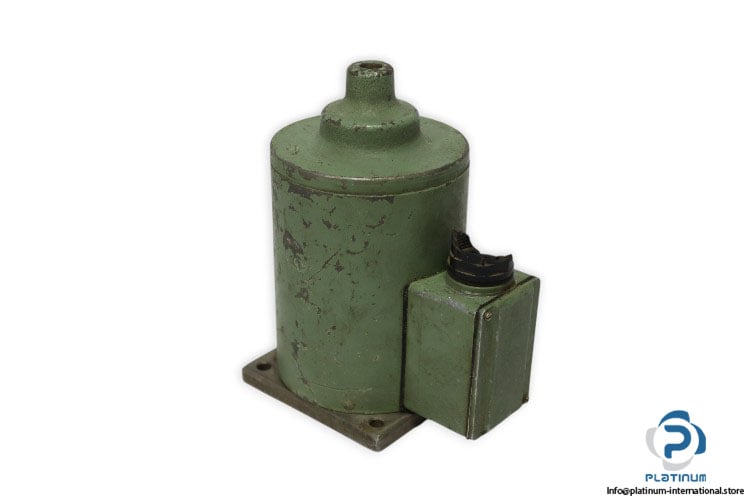

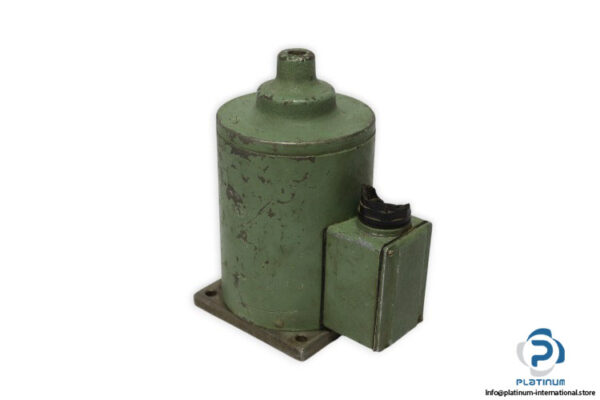

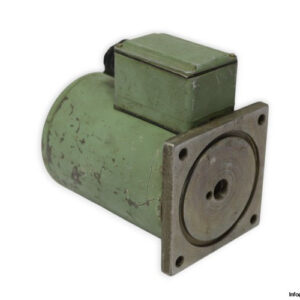

Orsta GS2W Valve Coil

The Orsta GS2W Valve Coil is a high-performance component designed for demanding hydraulic applications. With continuous duty operation, high switching frequency, and reliable force output, it ensures efficient performance in industrial environments. Its robust design and IP54 protection rating provide durability under varying conditions.

• Manufacturer: Orsta
• Type: Valve Coil
• Model: GS2W

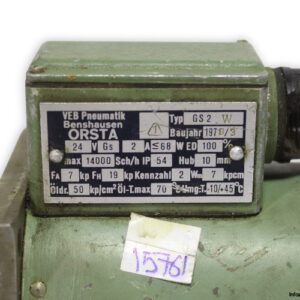

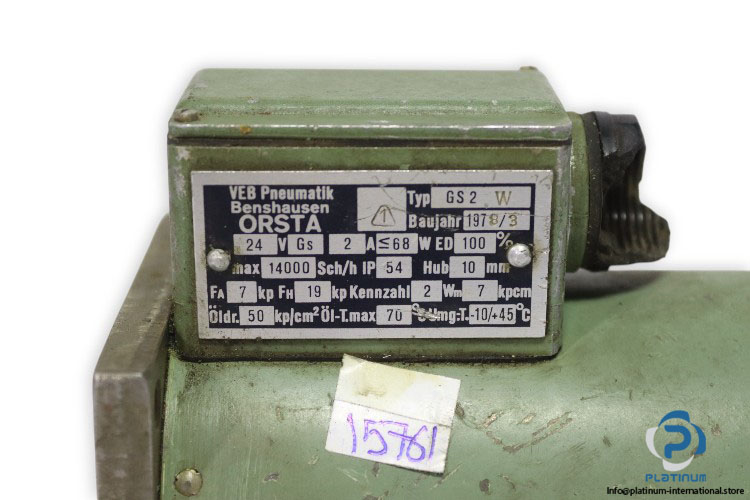

Technical Information

• Supply Voltage (Vws): 24 V DC
• Current (I): 2 A
• Power Consumption: 68 W
• Duty Cycle (ED): 100 % (continuous duty)
• Max. Switching Frequency: 14,000 switching cycles/hour
• Stroke (Hub): 10 mm
• Force (Fa): 7 kp (approx. 69 N)
• Holding Force (Fh): 19 kp (approx. 186 N)
• Performance Factor (Kennzahl): 2 Wm / 7 kp·cm
• Operating Pressure: 50 kp/cm²
• Oil Temperature Limit: 70 °C
• Ambient Temperature Range: -10 °C to +45 °C
• Protection Rating: IP54
