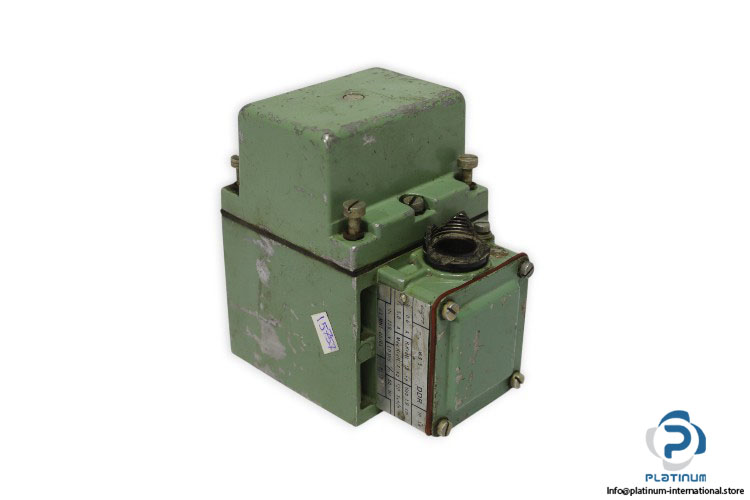

Orsta WS 5 Valve Coil

The Orsta WS 5 Valve Coil is a robust and reliable coil unit designed for continuous duty operation in demanding industrial applications. Built with a flange-type base and IP54 protection, it ensures durability, efficient switching performance, and long service life.

• Manufacturer: Orsta
• Type: Valve Coil
• Model: WS 5

Technical Information

• Rated Voltage (Un): 220 V AC
• Current: 0.6 A
• Magnet Current: 5.0 A
• Holding Force (H. Kraft): 19 kp (‰ˆ 186 N)
• Magnetic Force (Mag. Kraft): 7 kp (‰ˆ 69 N)
• Stroke (Hub): 1.0 cm (10 mm)
• Duty Cycle (ED): 100 % (Continuous Duty)
• Frequency: 50 Hz
• Switching Rate: 120 switching cycles/hour

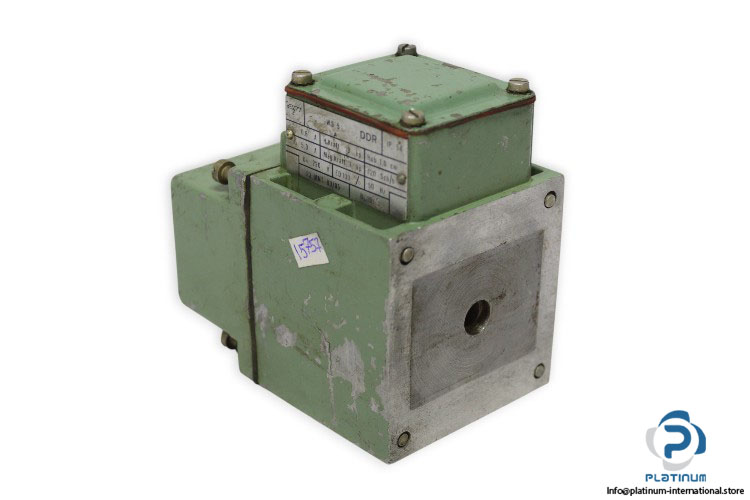

• Mounting: Flange-type base with central bore

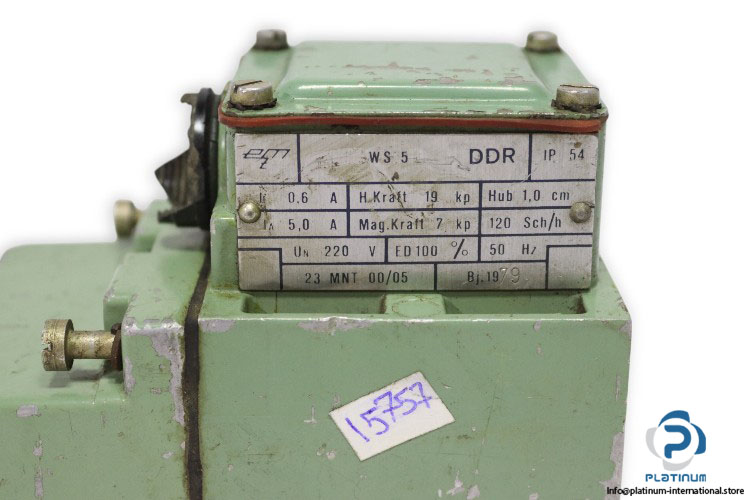

• Weight Code (from plate): 23 MNT 00/05
• Protection Class: IP54
