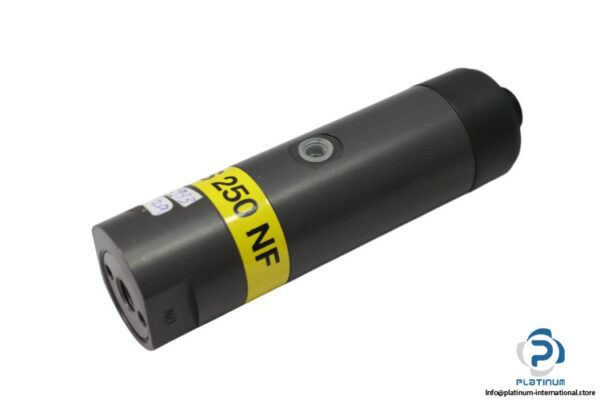

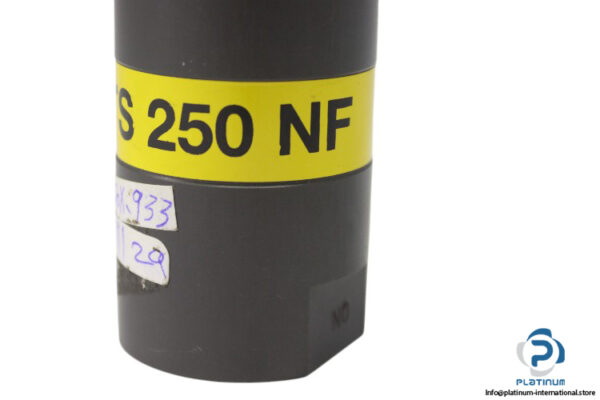

NETTER VIBRATION NTS 250 NF Pneumatic Linear Vibrator
The NETTER VIBRATION NTS 250 NF Pneumatic Linear Vibrator is designed for precise and efficient material flow, compacting, and conveying applications. Built for high performance and reliability, this vibrator operates with compressed air, making it ideal for industrial settings requiring consistent vibration output.
- Manufacturer: NETTER VIBRATION
- Type: Pneumatic Linear Vibrator
- Model: NTS 250 NF
Technical Information
- Pressure Max.: 2 / 6 bar
- Nominal Frequency: 2,328 / 3,894 min»¹
- Centrifugal Force: 119 / 251 N
- Unbalance: 0.402 / 0.542 cm/kg
- Air Consumption: 20 / 99 l/min
- Sound Level: 68 / 72 dB (A)
- Material: Aluminium (AL)
- Port Size: G 1/8 & G 1/4
- Dimensions (L × D): 141 × 41.5 mm
