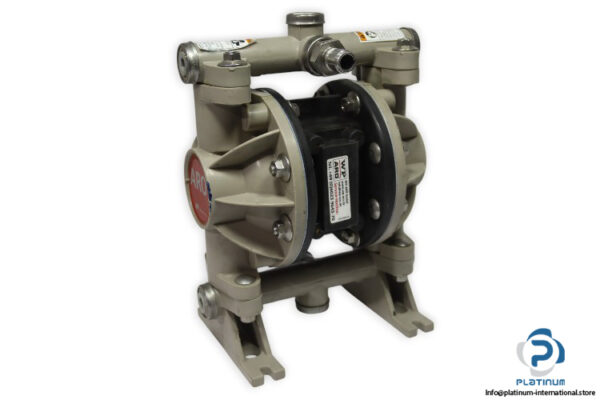

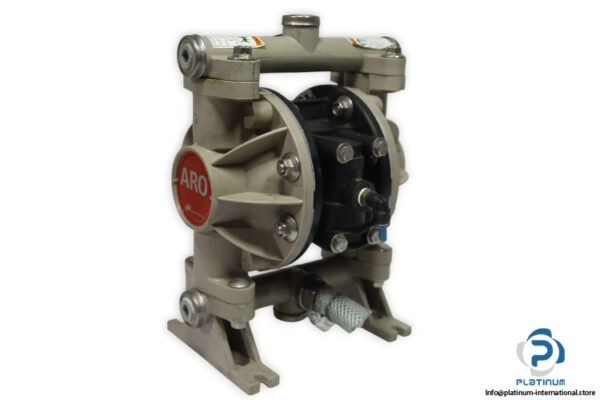

WP-ARO 66605J344 DOUBLE DIAPHRAGM PUMP

Heavy-duty double diaphragm pump engineered for high reliability and efficient fluid handling. With a durable polypropylene construction and no-stall air valve system, it ensures stable performance in industrial and chemical transfer applications.

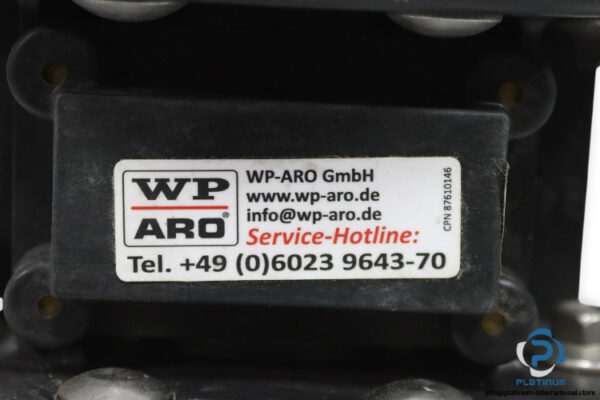

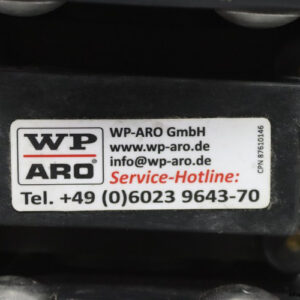

• Manufacturer: WP-ARO
• Type: Double Diaphragm Pump

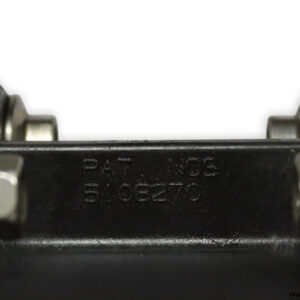

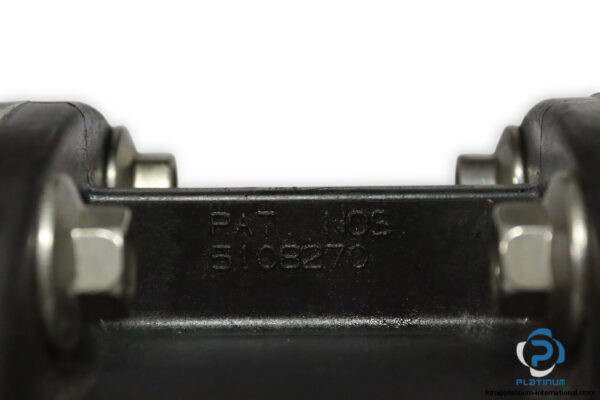

• Part No.: 5108270

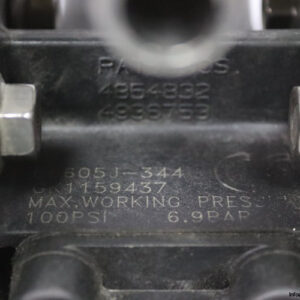

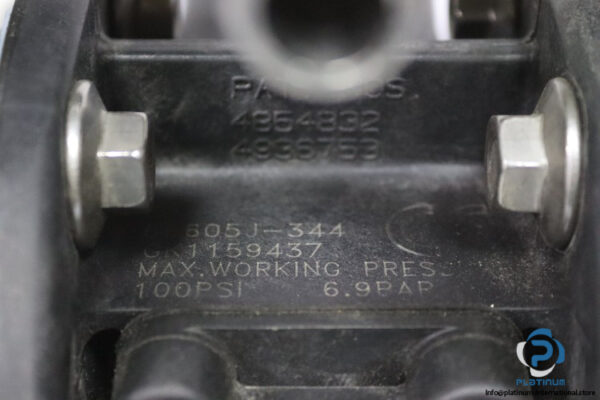

• Model: 66605J344
• Ref. Code: NOS / GK1159437

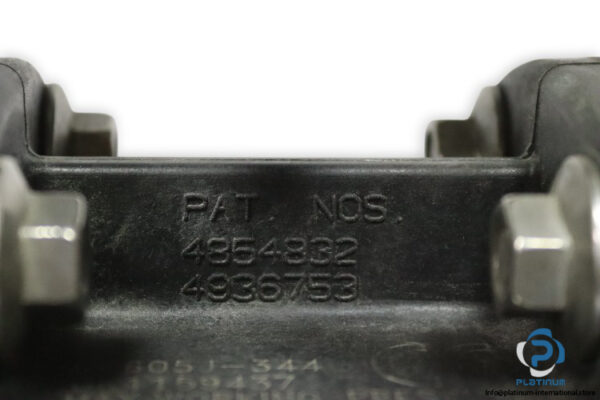

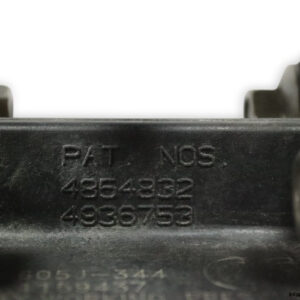

• Ref. No.: 4854832, 4936753

Technical Information

• Maximum Flow Rate: 49.2 l/min
• Max. Working Pressure: 6.9 bar / 100 PSI
• Maximum Solid Diameter: 2.4 mm
• Dry Suction Height Max.: 4.5 m
• Air Connection: 0.25 inch female NPT thread
• Material Inlet: 0.5 inch female thread NPT
• Material Outlet: 0.5 inch female thread NPT
• Wetted Housing Parts: Polypropylene “ Grey
• Gear Ratio: 1/1
• Valve Style: Unbalanced air valve “ no-stall, reliable shift
