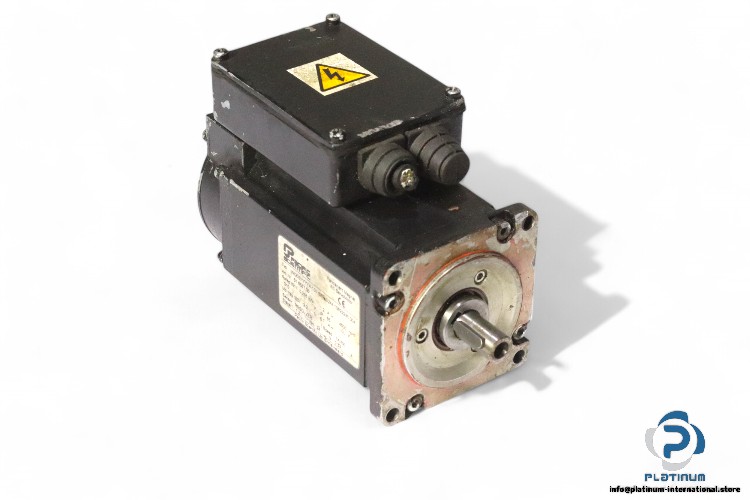

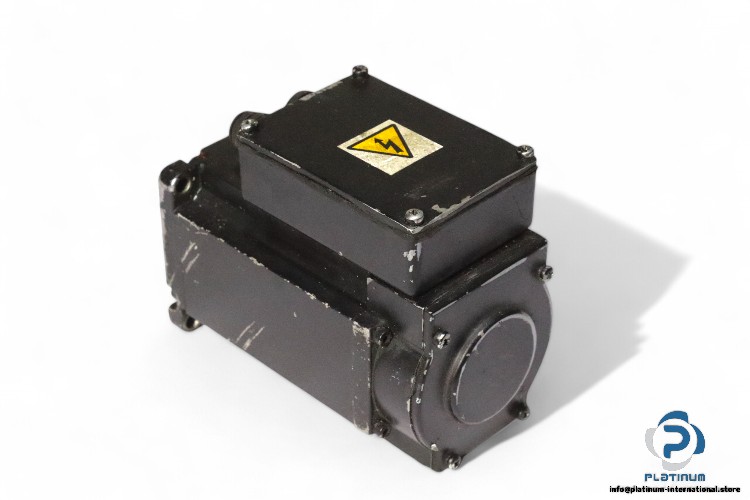

PACIFIC SCIENTIFIC AC Servo Motor MK20EYYYYA-101
The PACIFIC SCIENTIFIC AC Servo Motor MK20EYYYYA-101 is designed for high-performance motion control applications. With a rated power of 0.236 kW and a rated speed of 4500 rpm, it offers reliable operation and high efficiency in demanding systems. The motor is also equipped with a brake and offers a high protection class (IP65) to ensure durability and reliability in various environments.
Manufacturer: PACIFIC SCIENTIFIC
Type: AC Servo Motor
Model: MK20EYYYYA-101
Art No.: 81.6587.00

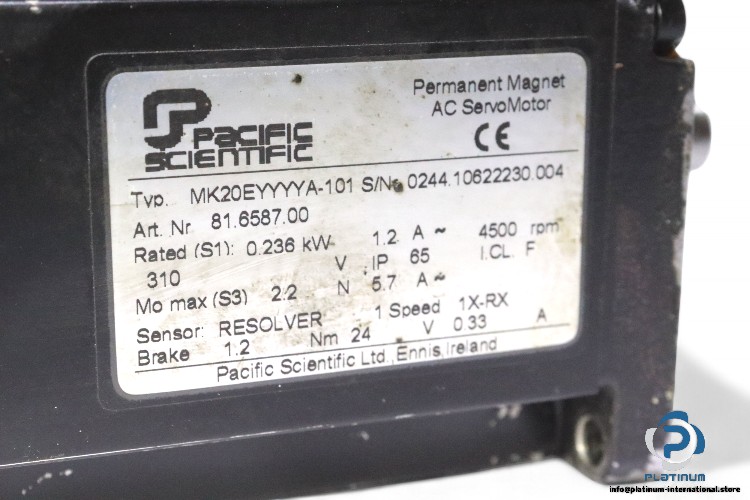

Technical Specifications
- Rated Voltage [V]: 310
- Rated Power [kW]: 0.236
- Rated Current [A]: 1.2
- Rated Speed [rpm]: 4500
- Stall Max. Torque [Nm]: 2.2
- Stall Max. Current [A]: 5.7
- Duty: S1Cont. / S3
- Protection Class [IP]: 65
- Insulation Class: F
- Brake Voltage [V]: 24
- Brake Current [A]: 0.33
- Brake Torque [Nm]: 1.2
