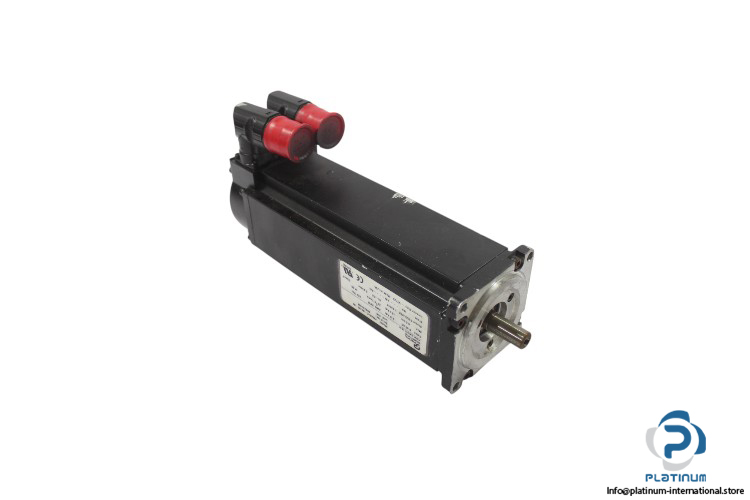

Pacific Scientific PMA24C-00100-00 Servomotor
The Pacific Scientific Servomotor PMA24C-00100-00 is designed for high-performance applications, providing precise motion control with a rated voltage of 320V and a rated power of 0.69 kW. With a smooth shaft and IP65 protection class, it ensures durability and reliability in industrial environments.
Manufacturer: Pacific Scientific
Type: Servomotor
Model: PMA24C-00100-00
Technical Information:
- Frame Size: 70 mm motor body square
- Shaft: Smooth Shaft
- Brake: No Brake

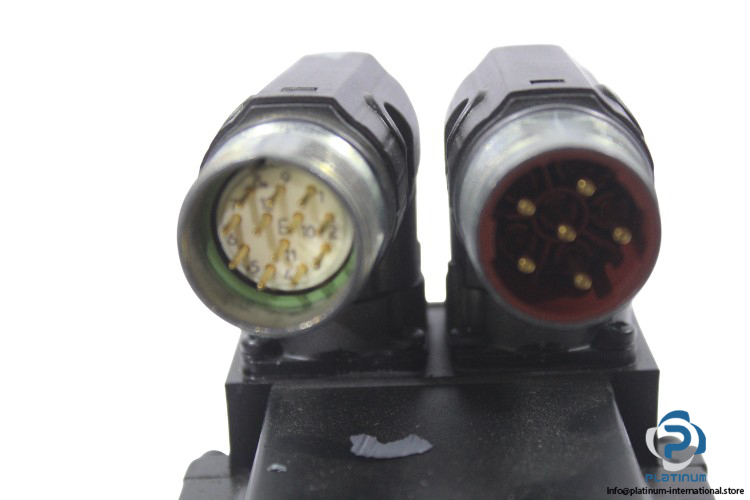

- Connector: 6 Pole Power
- Sensor: Alignment Resolver
- Rated Voltage: 320 V
- Rated Power: 0.69 kW
- Rated Current: 2.9 to 13.2 A
- Rated Speed: 3000 rpm
- Torque: 9.6 Nm
- Temperature: 25° C
- Factory Assigned: Standard Motor
- Protection Class: IP 65
- Insulation Class: F
