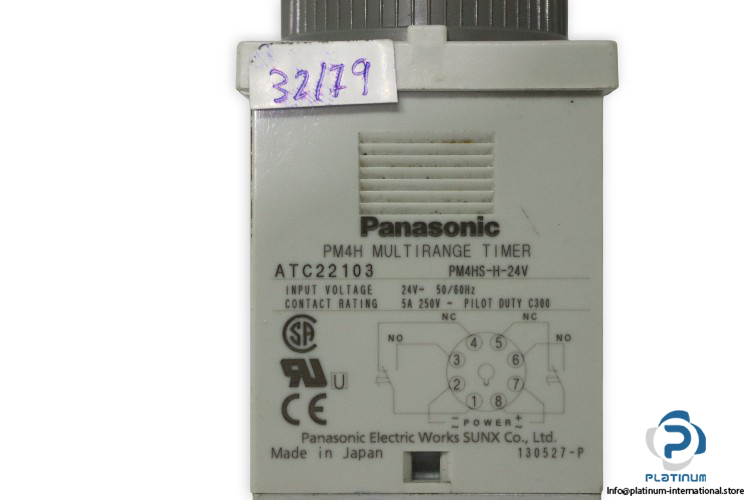

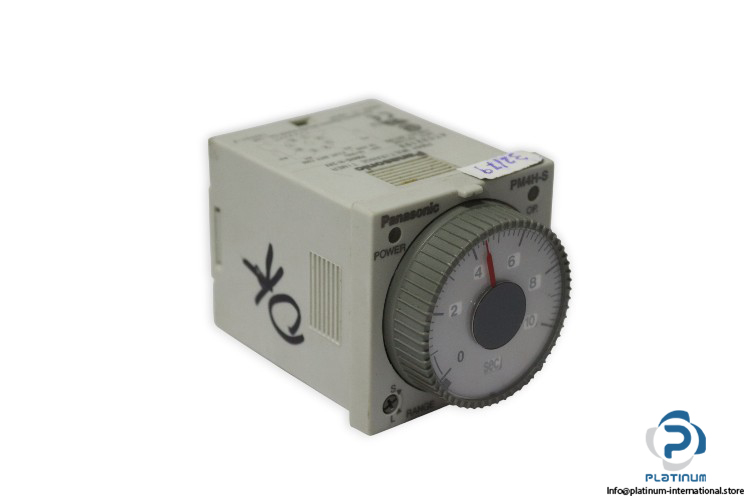

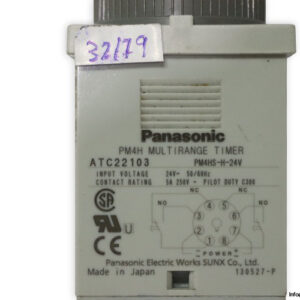

PANASONIC ATC22103 Multi-Range Timer

The PANASONIC ATC22103 Multi-Range Timer is a reliable and compact timing device designed for precise control in industrial automation. With easy setup, LED indication, and an 8-pin base connection, it delivers stable operation for various timing applications.

Manufacturer: PANASONIC
Type: Multi-Range Timer
Model: ATC22103
Product Number: PM4HS-H-24V
Series: PM4H-S
Code: 130527-P

Technical Information

• Input Voltage: 24 V AC, 50/60 Hz
• Output / Contact Rating: 5 A 250 V AC
• Pilot Duty: C300
• Timer Range: 0 to 10 seconds

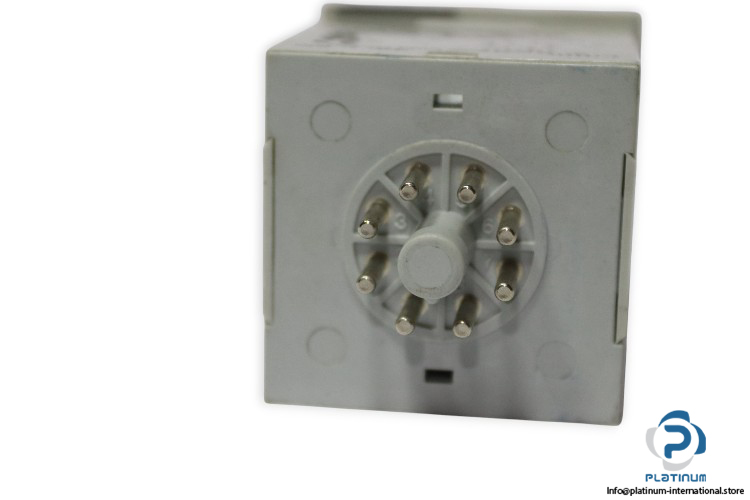

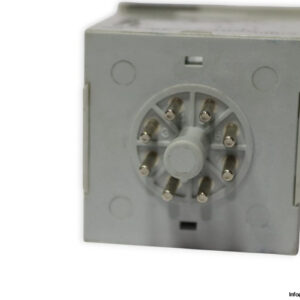

• Socket Type: 8 pin round base (octal socket)

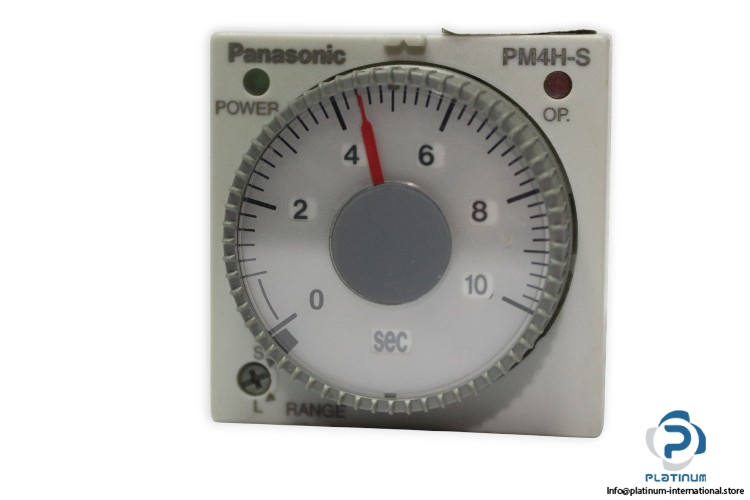

• Indicators: Power LED, Output LED
• Terminals Include: NC (normally closed), NO (normally open), COM
