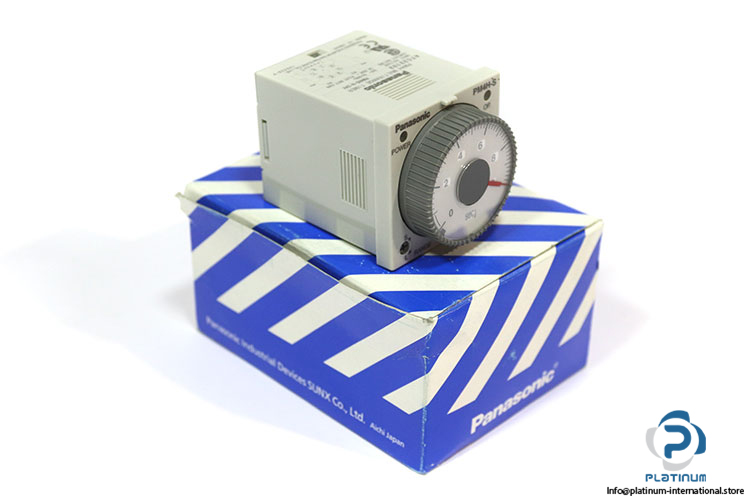

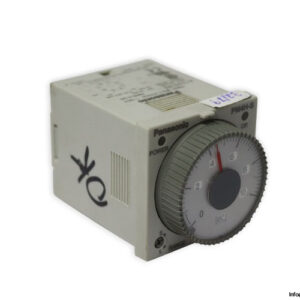

PANASONIC ATC22103 Multi-Range Timer
The PANASONIC ATC22103 is a compact and reliable multi-range timer designed for precise timing control in automation, machinery, and panel-building applications. Part of the PM4H-S series, it offers stable timing performance, easy installation with an 8-pin octal socket, and clear status indication through built-in LED indicators. With a fast 0“10 second range and robust contact rating, this timer ensures dependable operation in a wide range of control systems.
Manufacturer: PANASONIC
Type: Multi-Range Timer
Model: ATC22103

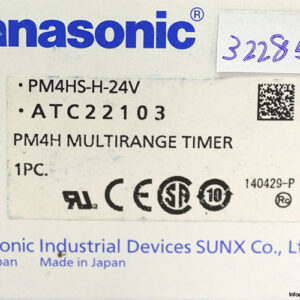

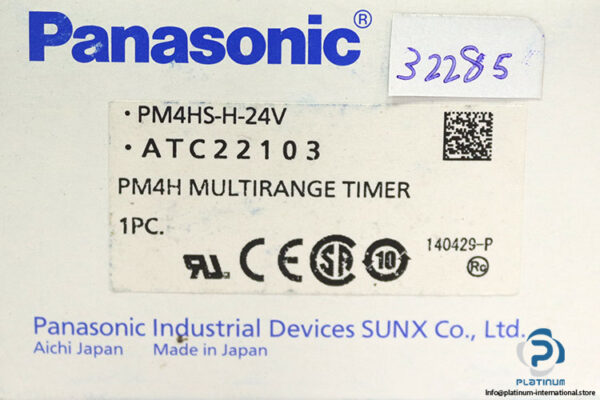

Product Number: PM4HS-H-24V
Series: PM4H-S
Code: 140429-P

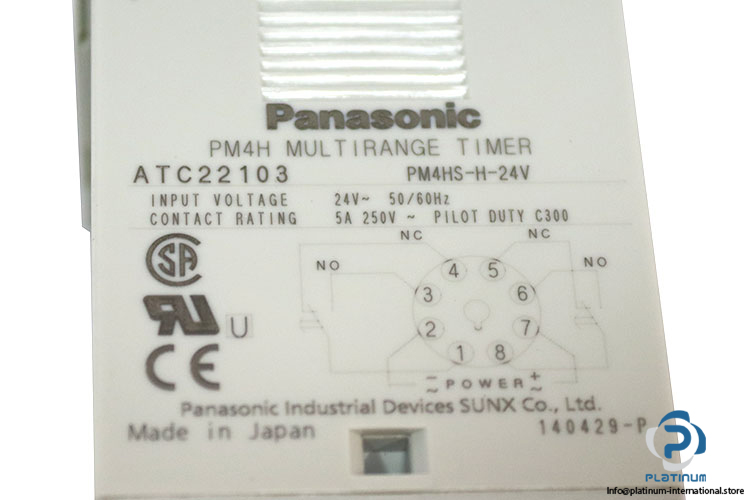

Technical Information

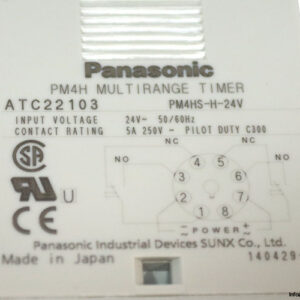

- Input Voltage: 24 V AC, 50/60 Hz
- Output / Contact Rating: 5 A 250 V AC
- Pilot Duty: C300

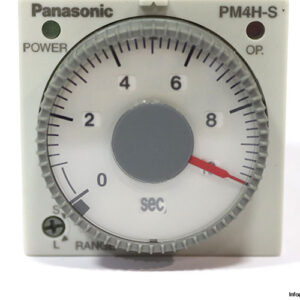

- Timer Range: 0 to 10 seconds

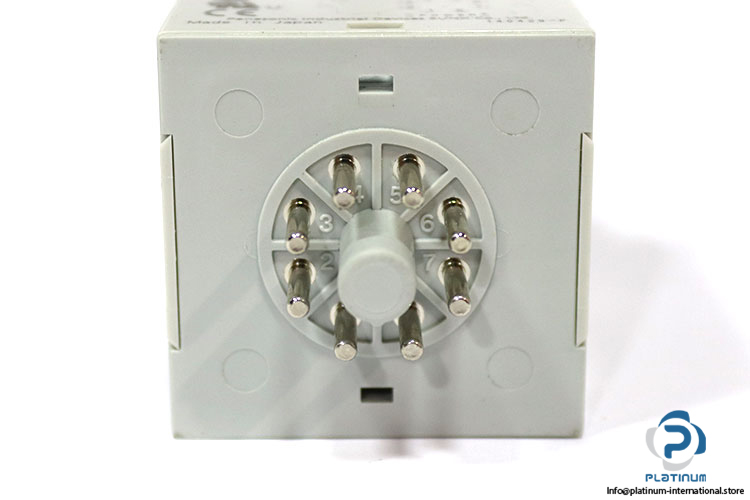

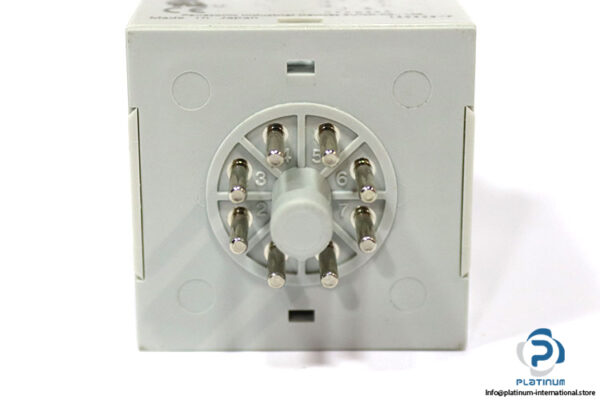

- Socket Type: 8-pin Round Base (Octal Socket)

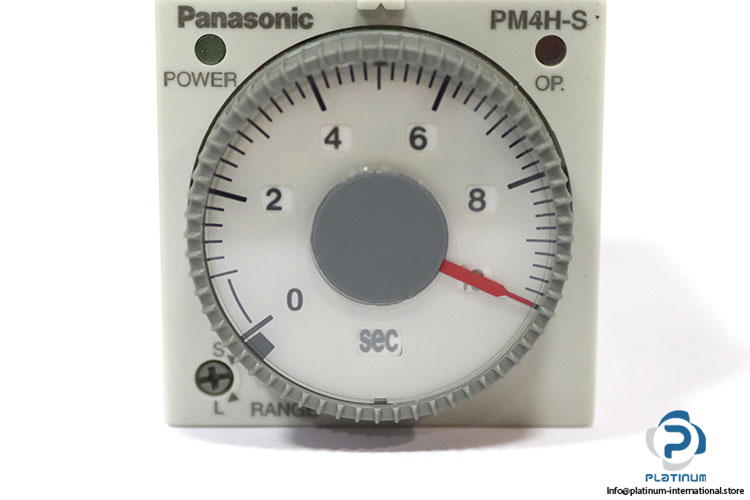

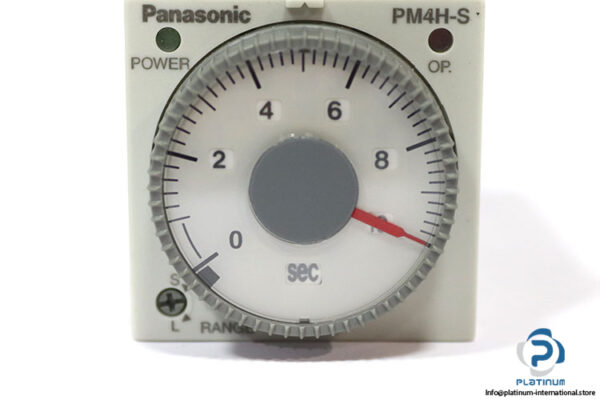

- Indicators: Power LED, Output LED
- Terminals Include: NC (Normally Closed), NO (Normally Open), COM
