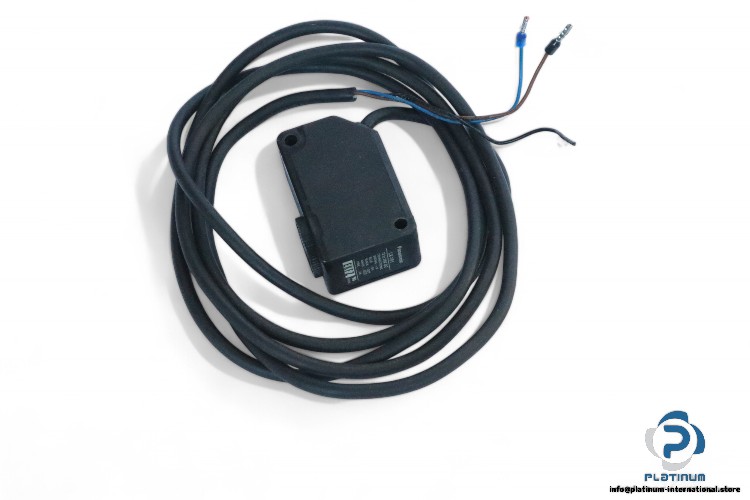

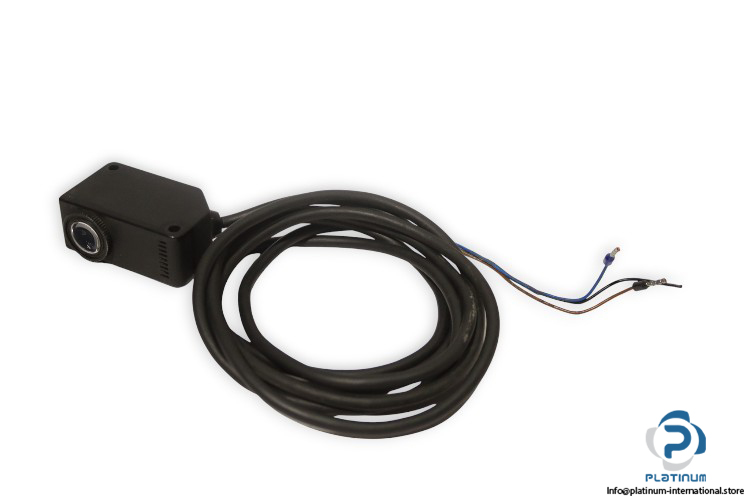

Panasonic LX-101 Contrast Sensor

The Panasonic LX-101 Contrast Sensor provides high-precision color and contrast detection for a wide range of industrial automation and quality control applications. Designed for durability and performance, this sensor delivers fast and reliable response even in challenging environments, featuring multi-color LED detection and a compact IP67-rated housing.

Manufacturer: Panasonic
Type: Contrast Sensor
Model: LX-101

Technical Information

Setting Distance: 10 mm ± 3 mm
Supply Voltage: 12 to 24V DC ±10%
Degree of Protection: IP67 IEC
Current Consumption:
– Normal Mode: 750 mW or less (30 mA or less at 24V)
– EOC Mode: 600 mW or less (25 mA or less at 24V)
Output Signal: NPN
Mark Mode: Light-ON / Dark-ON
Color Mode: Coincidence-ON / Non-coincidence-ON

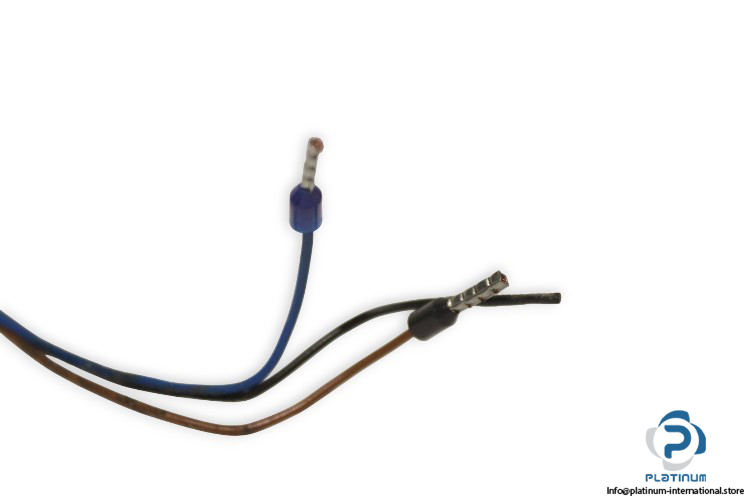

Cable: 0.2 mm² 5-core cabtyre cable, 2 m long
Timer Function: OFF-delay / ON-delay timer, switchable
Emitting Element: Red / Green / Blue LED

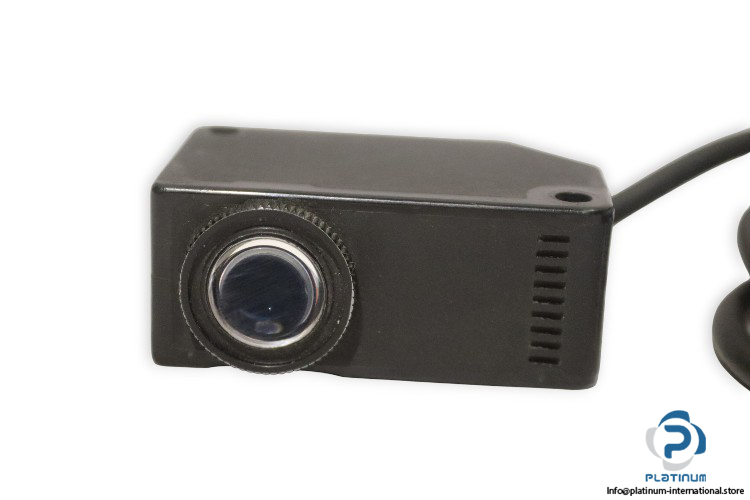

Material: Enclosure: PBT, Display: Polycarbonate, Buttons: Silicon Rubber, Lens: Glass
Ambient Temperature: -10 / 55 °C
