PARKER 3169 04 10 PNEUMATIC PUSH-IN FITTING

Pneumatic Push-In Fitting

The PARKER Legris 31690410 LF 3000 fitting is a 90° elbow push-in connector for 4 mm tubes and G 1/8 ports, made from durable polymer with stainless steel gripping ring and NBR seals, suitable for compressed air systems.

SKU: 1083631 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 4 pcs
Low stock
Only 4 items remaining.
Add to quote

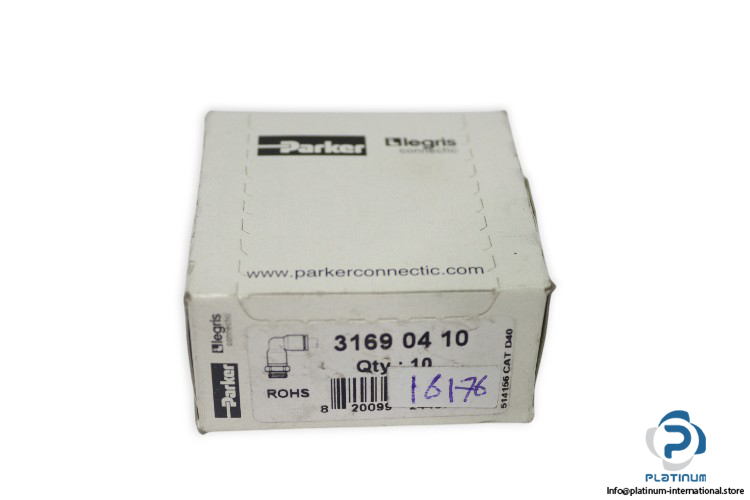

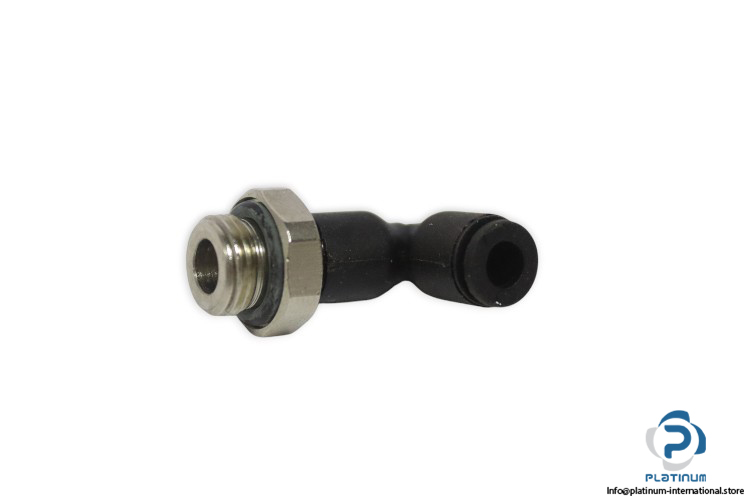

PARKER Legris 31690410 Pneumatic Push-In Fitting

The PARKER Legris 31690410 from the LF 3000 series is a high-quality pneumatic push-in fitting designed for fast and reliable connection of tubes and ports. Its 90° elbow design and durable polymer construction ensure long service life in industrial pneumatic systems.

Manufacturer: PARKER Legris
Type: Pneumatic Push-In Fitting
Part No.: 31690410
Series: LF 3000
Ref Code: 514156 CAT D40

Technical Information

  • Product Style: Stud Fitting
  • Shape: Elbow 90°
  • Configuration: Tube to Port
  • Connection 1 Type: Tube
  • Connection 1 Size: 4 mm Tube O.D.
  • Connection 2 Type: Male BSPP
  • Connection 2 Size: G 1/8 inch Thread
  • Hex Size: 13
  • Hex Type: Hexagon Metric
  • Vacuum Pressure Rating: 755 mm-Hg
  • Maximum Operating Temperature: 80 °C
  • Minimum Operating Temperature: -20 °C
  • For Fluid Type: Air (Compressed Air), Other Fluids: Please Consult Us
  • Body Material: Technical Polymer
  • Seal Material: NBR
  • Gripping Ring Material: Stainless Steel
Weight0,02 kg
