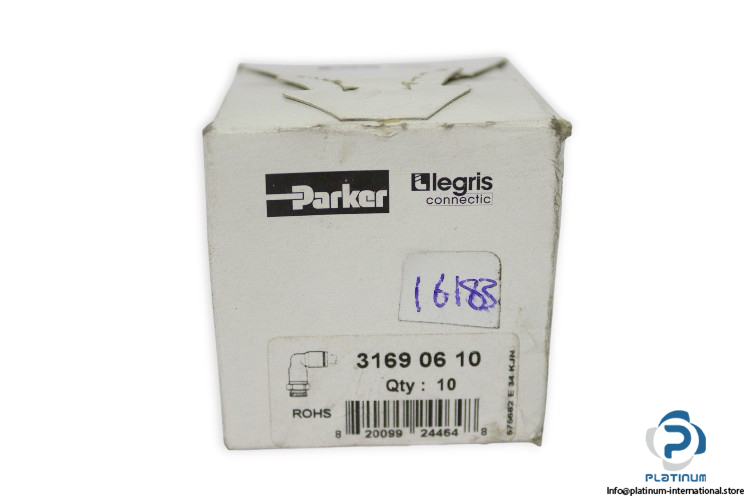

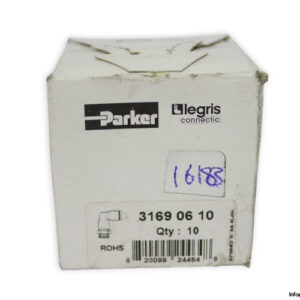

PARKER Legris 3169 06 10 Pneumatic Push-In Fitting

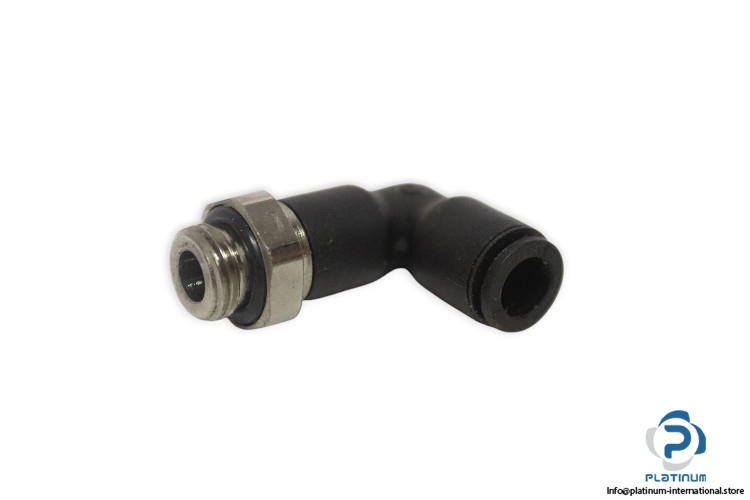

The PARKER Legris 3169 06 10 is a 90° elbow pneumatic push-in fitting from the LF 3000 series, designed for quick and reliable connections in compressed air systems. It offers exceptional sealing performance and long service life under demanding operating conditions.
Manufacturer: PARKER Legris
Type: Pneumatic Push-In Fitting
Part No.: 3169 06 10
Series: LF 3000
Ref Code: 575682 E 34 KJN
SN: 8 20099 244648
Technical Information
- Connection 1 Type: Tube
- Connection 1 Size: 6 mm Tube O.D.
- Connection 2 Type: Male BSPP
- Connection 2 Size: G 1/8 inch Thread
- Configuration: Tube to Port
- Shape: Elbow 90°
- Vacuum Pressure Rating: 755 mm-Hg
- Hex Size: 13
- Hex Type: Hexagon Metric
- Maximum Operating Temperature: 80 °C
- Minimum Operating Temperature: -20 °C
- For Fluid Type: Air (Compressed Air), Other Fluids: Please Consult Us
- Body Material: Technical Polymer
- Seal Material: NBR
- Gripping Ring Material: Stainless Steel
