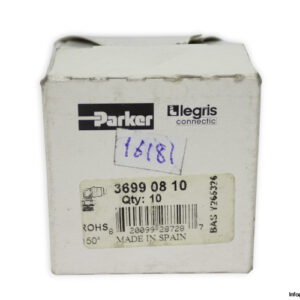

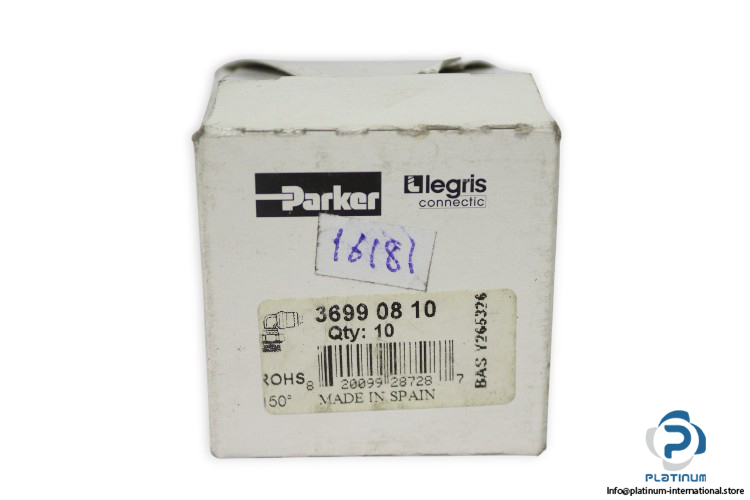

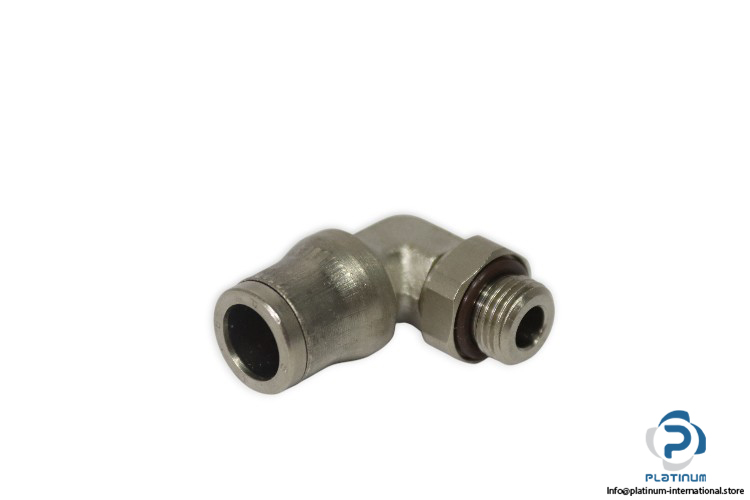

PARKER Legris 36990810 LF 3600 Chemical Nickel-Plated Brass Push-In Fitting

The PARKER Legris 36990810 LF 3600 Push-In Fitting is a high-quality chemical nickel-plated brass connector designed for secure and durable pneumatic and fluid applications. It offers excellent resistance to corrosion and high temperatures, ensuring reliable performance in demanding environments.

Manufacturer: PARKER Legris
Type: Chemical Nickel-Plated Brass Push-In Fitting
Part No.: 36990810
Series: LF 3600
Ref Code: BAS Y265326
SN: 8 20099 28728 7

Technical Information

• Connection 1 Size: 8 mm (O.D.)
• Connection 1 Type: Tube to Port
• Connection 2 Size: G 1/8
• Connection 2 Type: Male BSPP
• Product Style: Stud Fitting – Adjustable
• Shape: Elbow 90°
• Seal Material: FKM
• Body Material: Brass, FDA Chemical Nickel-Plated
• For Fluid Type: Water, Air (Compressed Air), Lubricants (Grease)
• Vacuum Pressure Rating: 755 mm-Hg
• Maximum Operating Pressure: 20 bar
• Minimum Operating Temperature: -25 °C
• Maximum Operating Temperature: 150 °C
• Division: Low Pressure Connectors Europe Division
