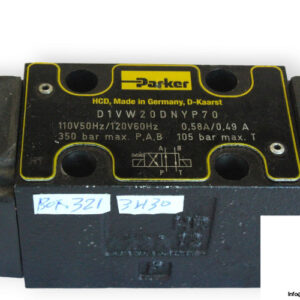

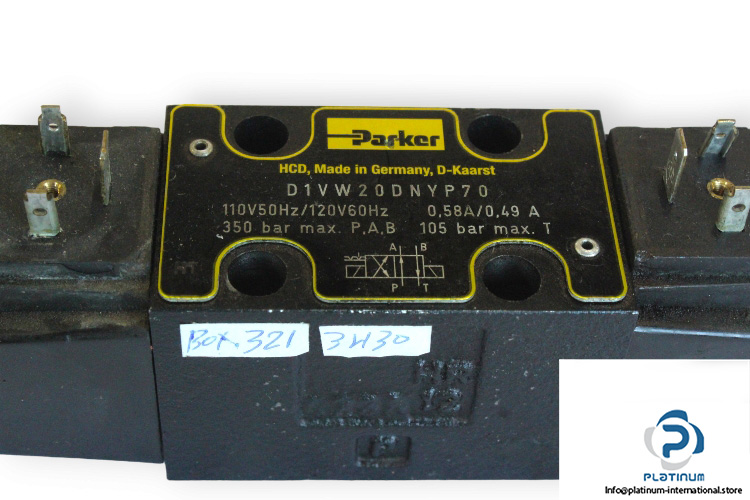

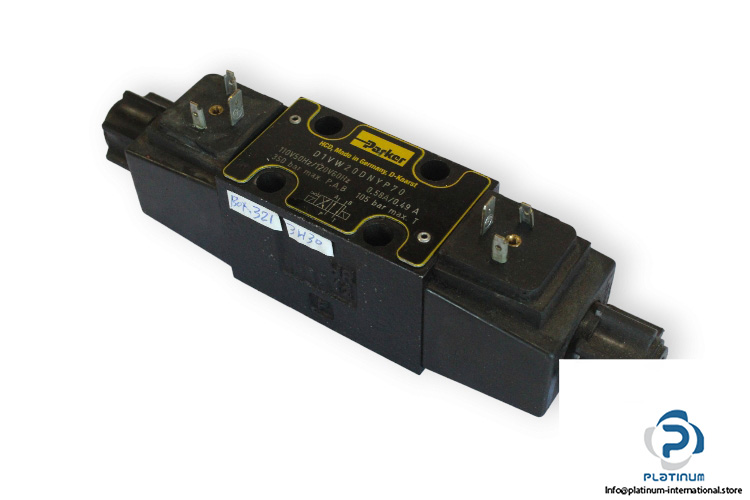

Manufacturer: Parker
Type: Direct Operated Directional Control Valve
Model: D1VW20DNYP70
Nominal Size: NG 6
Type of Actuation: Electrically
Max. Working pressure (Port P, A, B): 350 bar
Max. Pressure (Port T): 105 bar
Hydraulic Connection: Sub-Plate
Fluid Temperature Range: -20 ….. +60 °C

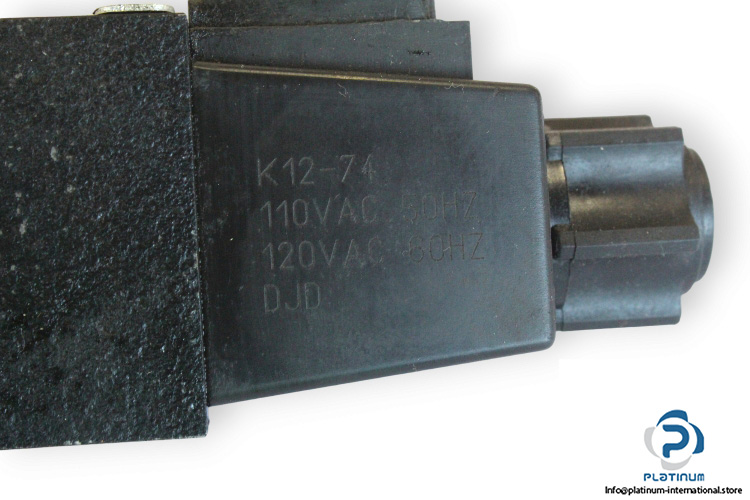

Recommended Nominal voltage per Coil: 110 … 120 VAC,at 50 … 60 Hz
Recommended Nominal Current per Coil: 0.58 / 0.49 A (AC)
