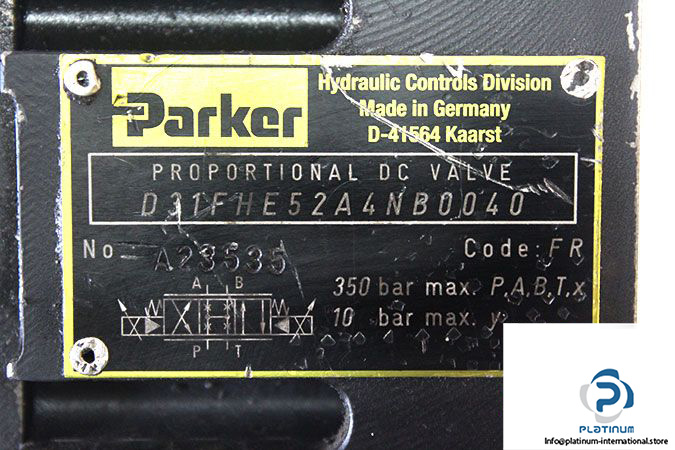

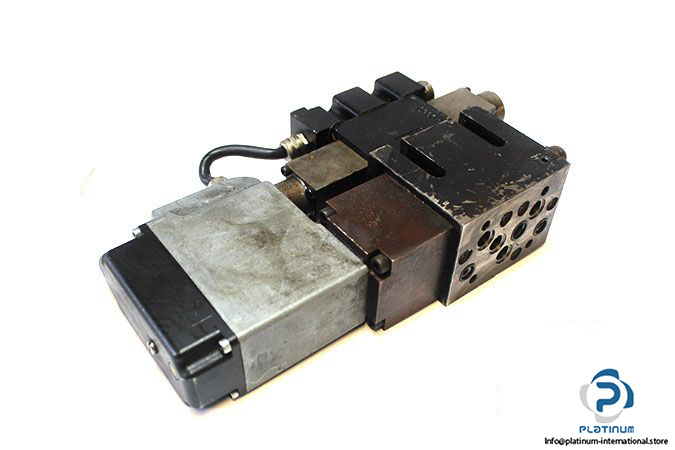

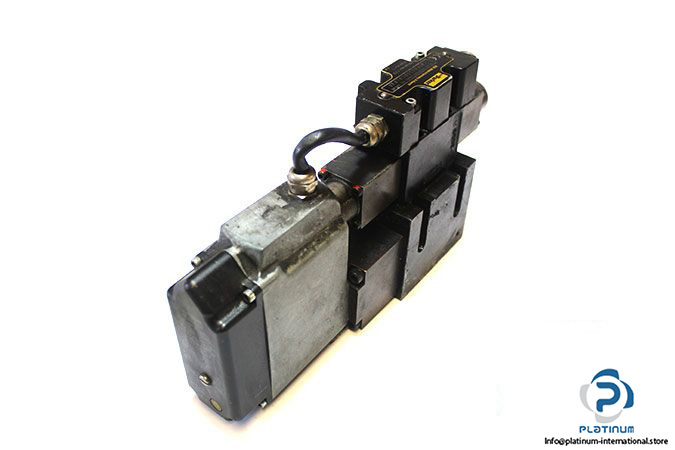

PARKER D31FHE52A4NB0040 PROPORTIONAL DIRECTIONAL CONTROL VALVE

The Parker D31FHE52A4NB0040 is a high-performance NG10 size proportional directional control valve designed for demanding industrial hydraulic systems. It ensures precise flow regulation, exceptional reliability, and consistent performance under high pressure and variable operating conditions.

Manufacturer: PARKER
Type: Proportional Directional Control Valve
Model: D31FHE52A4NB0040
Part No: A23535
Code: FR
Size: NG10

Technical Information

• Ambient Operating Temperature: -20°C to +60°C
• Maximum Operating Pressure (Ports P, A, B, T, X): 350 bar
• Maximum Operating Pressure (Port Y): 10 bar
• Flow Max.: 55 LPM
• Connection: Sub-plate
• Attachment: PARKER D1FVE50BCVLB35 (Proportional Pressure Relief Valve)

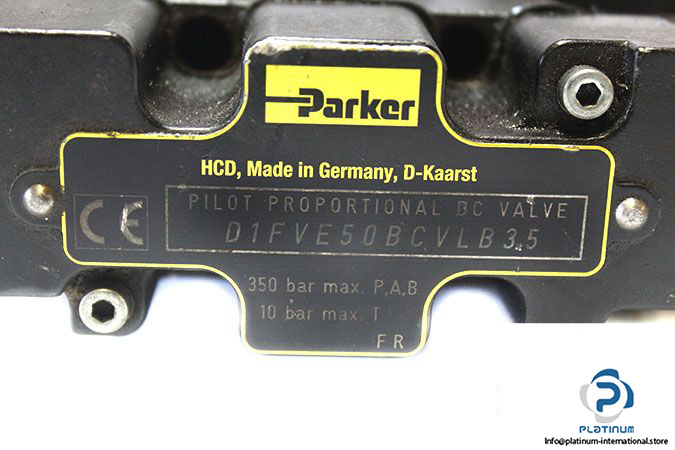

Attached Component – Proportional Pressure Relief Valve

• Manufacturer: PARKER
• Model: D1FVE50BCVLB35
• Maximum Operating Pressure (Ports P, A, B): 350 bar
• Maximum Operating Pressure (Port T): 10 bar
• Ambient Temperature: -20°C to +40°C
• Maximum Flow: 10 LPM
• Attachment: PARKER MSM GRFY035F20E27 (Solenoid Coil)

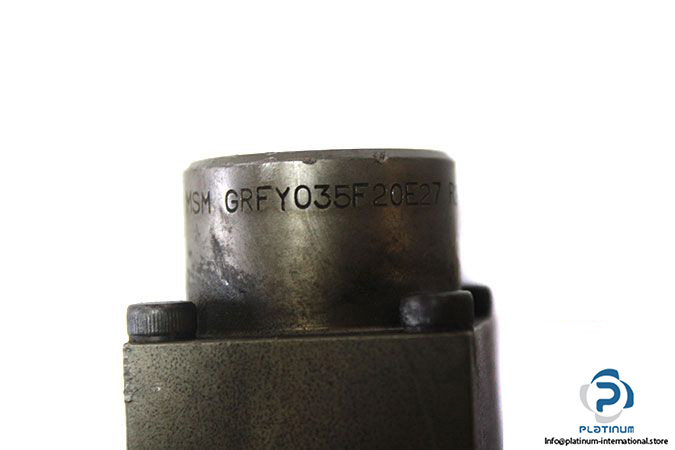

Attached Component – Solenoid Coil

• Manufacturer: PARKER
• Model: MSM GRFY035F20E27
• Current: 2.45 A
