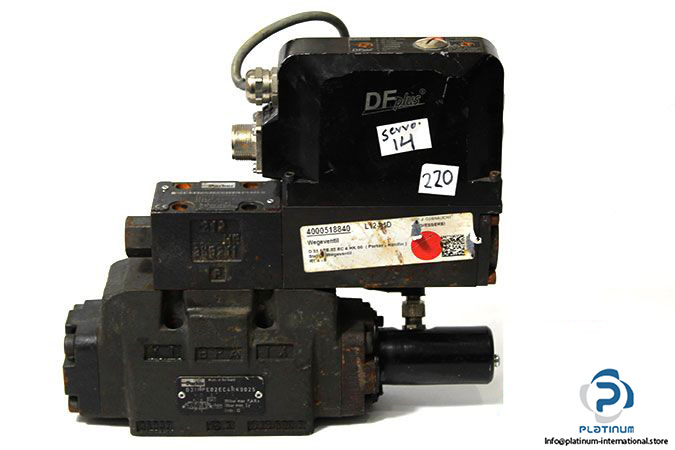

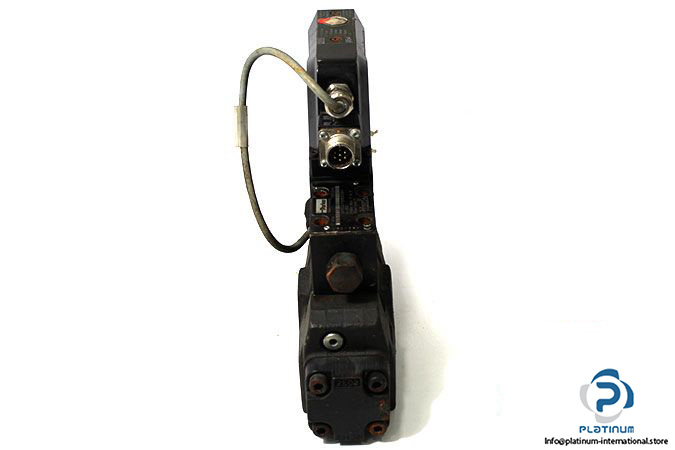

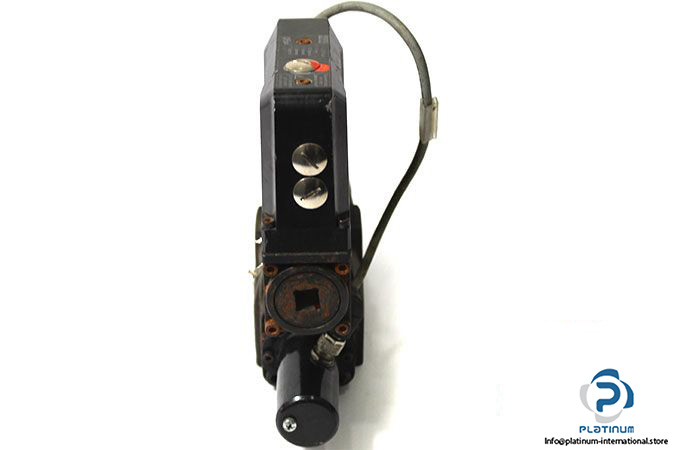

Manufacturer: PARKER

Type: SERVO CONTROL VALVE

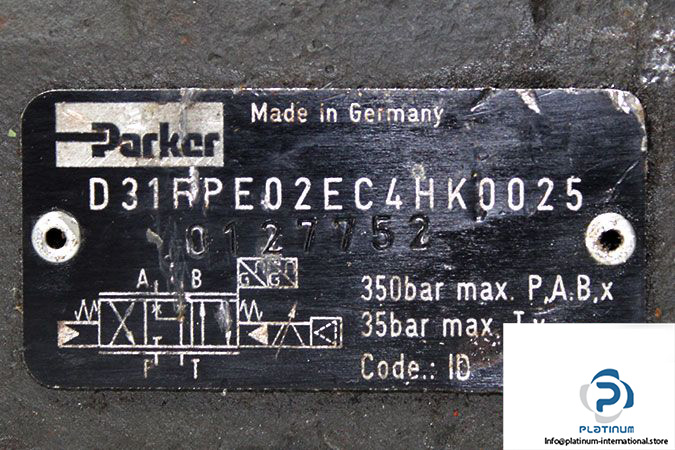

Model: D31FPE02EC4HK0025

Nominal size: NG10

Actuation: Electrical

Max. Pressure: 350 bar

Pilot Supply Pressure: 20 … 350 bar

Max. Flow Rate: 120 l/min

Pilot Flow, Step Response at 210 Bar: 10 l/min

Supply Voltage: 22 …. 30VDC

Hydraulic Connection: Sub-Plate

Fluid Temperature Range: -20 ….. +60 °C

Viscosity range: 30 … 80 mm²/s

Weight: 10.70

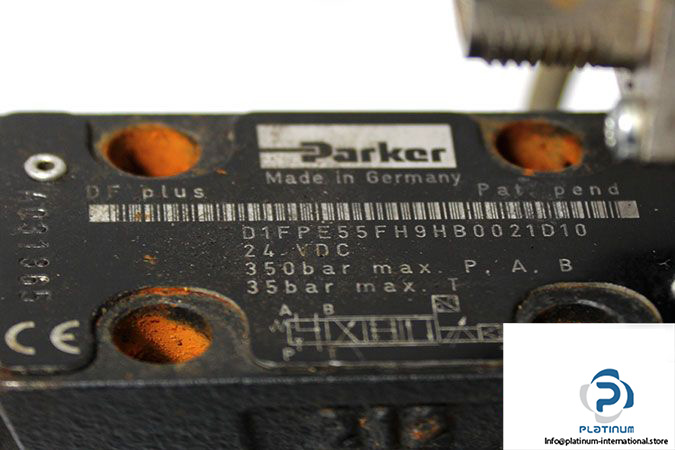

PARKER D1FPE55FH9HB0021D10 PROPORTIONAL DIRECTIONAL CONTROL VALVES

Nominal size: NG06

Actuation: Electrical

Max. Pressure: 350 bar

Max. Flow Rate: 90 l/min

Supply Voltage: 24 VDC

Fluid Temperature Range: -20 ….. +60 °C

Viscosity range: 30 … 80 mm²/s
