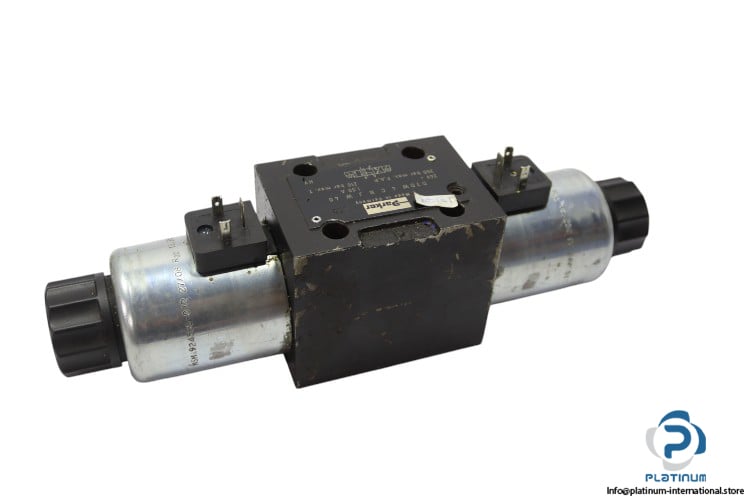

PARKER D3DW 4 C N J W 40 SOLENOID DIRECTIONAL CONTROL VALVE

The PARKER D3DW4CNJW40 is a high-performance solenoid directional control valve designed for efficient hydraulic fluid control in industrial systems. This NG10-sized valve is double solenoid and spring centered, ensuring stable operation and reliable directional switching. It includes the PARKER MSM 924585-012 solenoid coil for 24 V DC operation.

Manufacturer: PARKER

Type: Solenoid Directional Control Valve

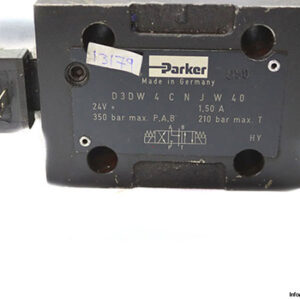

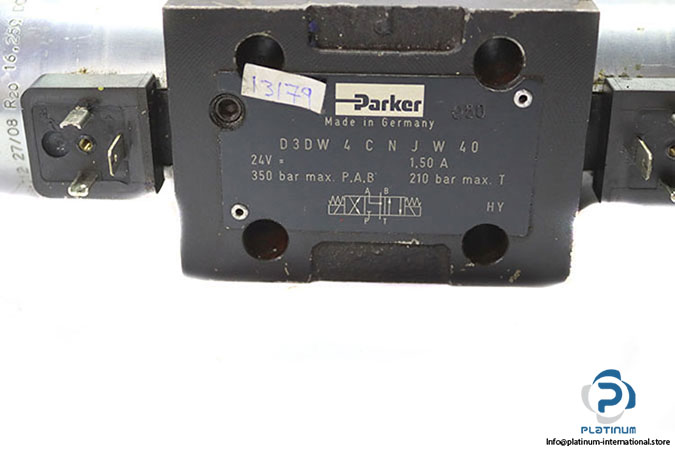

Model: D3DW 4 C N J W 40

Technical Information

Size: NG 10

Fluid: Oil

Description: Double Solenoid, Spring Centered

Type of Actuation: Electrically

Operating P.A.B Pressure Max.: 350 bar

Operating Tank Pressure Max.: 210 bar

Position No.: 3

Hydraulic Connection: Sub-Based

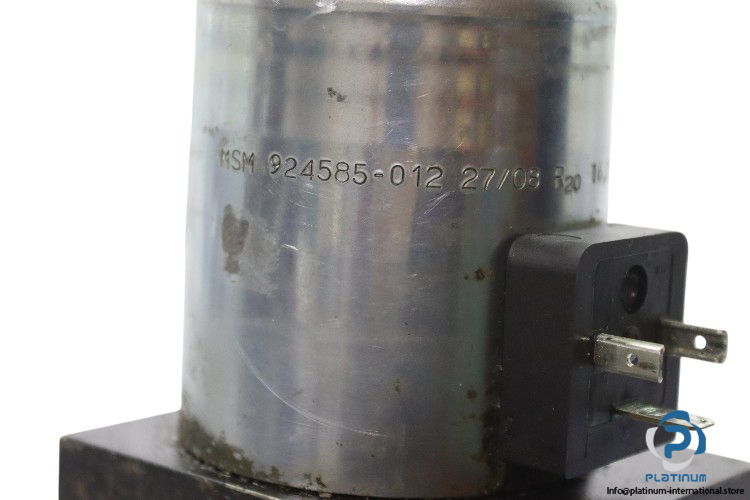

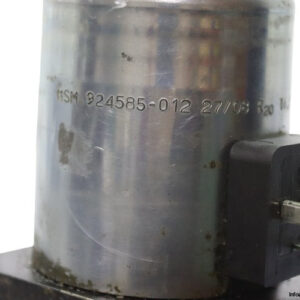

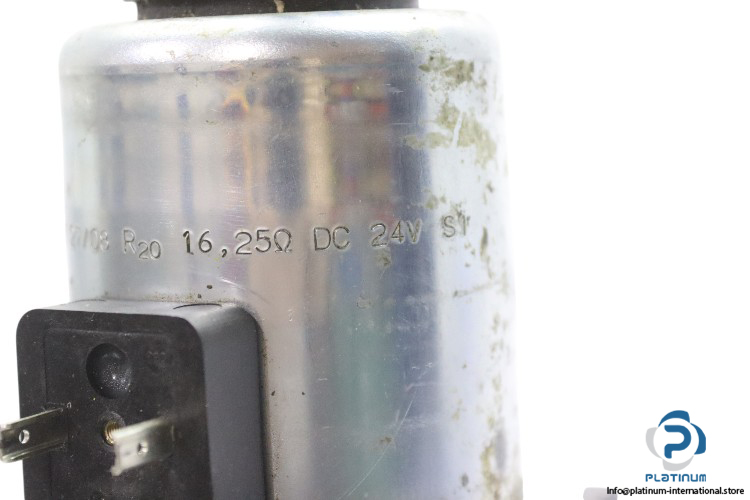

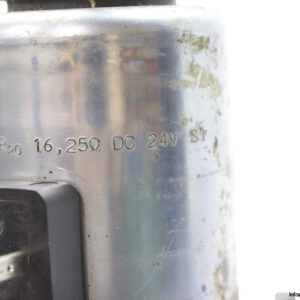

Attached Solenoid Coil

Manufacturer: PARKER

Type: Solenoid Coil

Model: MSM 924585-012

Supply Voltage: 24 V DC
