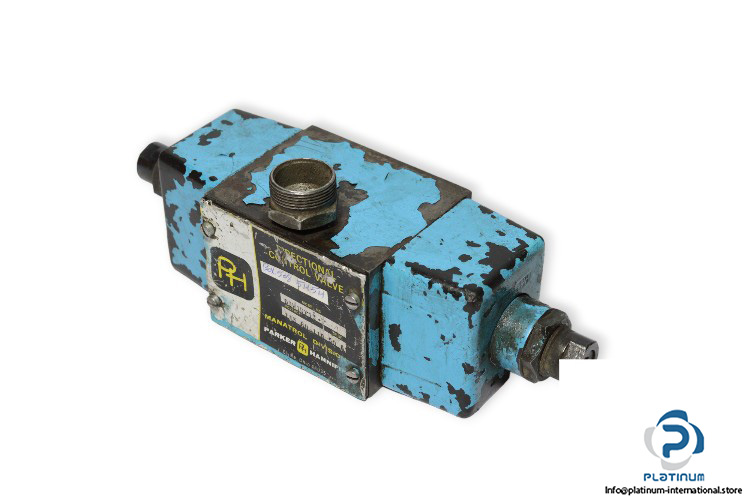

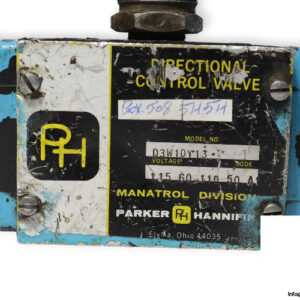

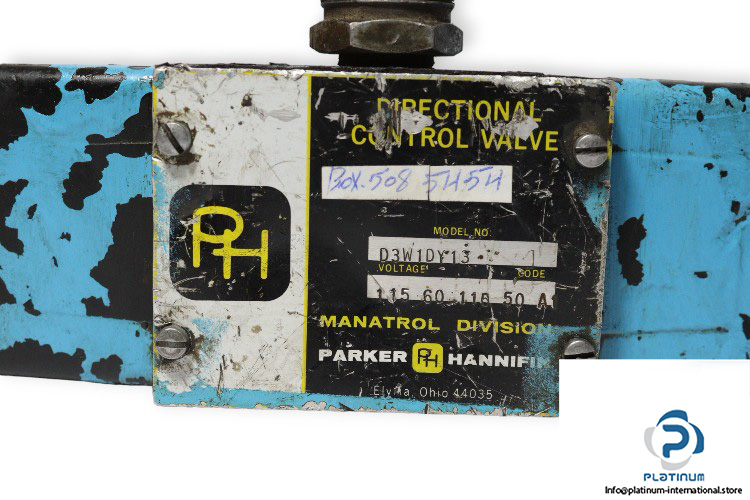

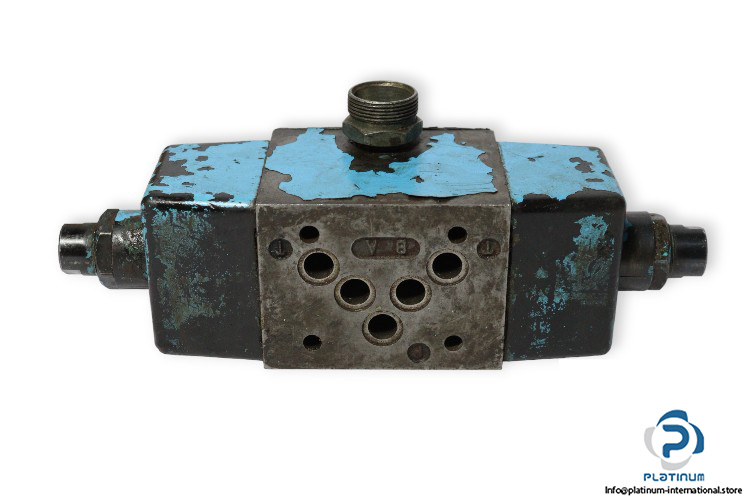

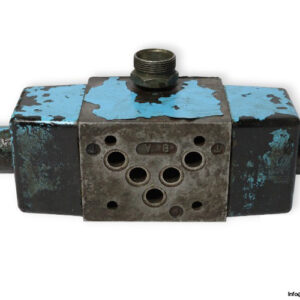

Manufacturer: PH PARKER HANNIFIN
Type: Directional Control Valve
Model: D3W1DY13
Nominal Size: NG 10
Type of Actuation: Electrically
Valve Function: 4/3 way valve
Max. Working Pressure(Ports P,A,B): 350 bar
Max. Working Pressure(Ports T): 210 bar
Max. Flow: 115 l/min
Hydraulic Connection: Sub-Plate,28 mm
Spool Position: 2-position
Nominal Voltage per Coil: 115 VAC@60 Hz
Fluid Temperature Range: –20 … 70°C
