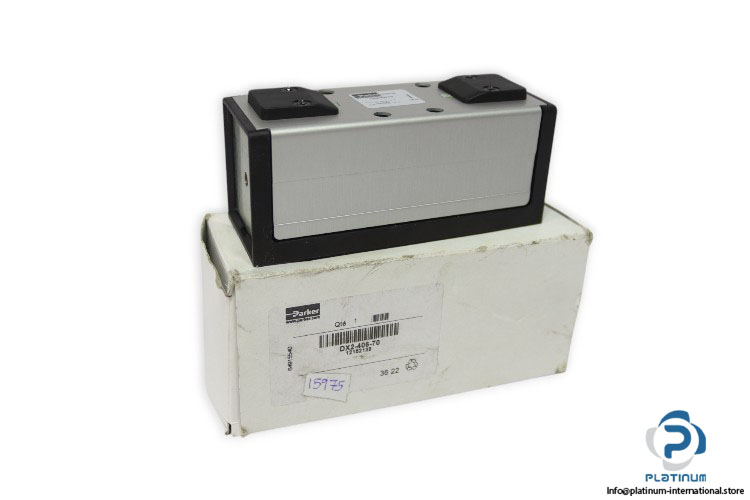

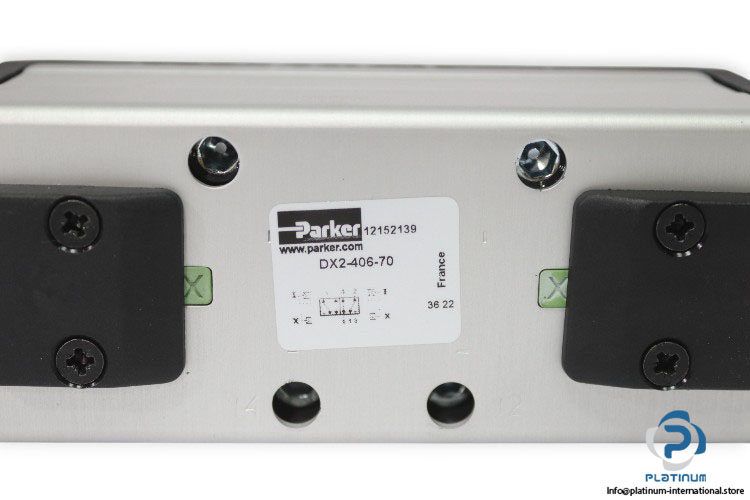

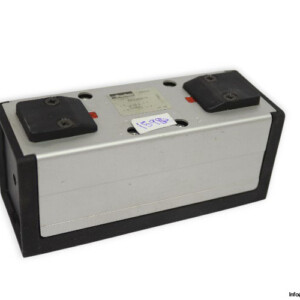

Parker DX240670 Double Solenoid Valve

The Parker DX240670 Double Solenoid Valve is a high-performance component designed for precise control of pneumatic systems. Built from durable materials and engineered to ISO standards, it ensures reliable operation, long service life, and excellent flow capacity for demanding industrial applications.

• Manufacturer: Parker
• Type: Double Solenoid Valve
• Model: DX240670
• Part No.: 12152139
• Ref. No.: 36 22 / 64915540
• Series: DX2

Technical Information

• Size: 70 mm
• Function: 5/2 Way
• Media: Air
• Actuator: Electrical
• Standard Subbase: ISO 5599-1 and NFE 49-080
• Operating Pressure: -0.9 to 12 bar
• Piloting Pressure: 2 to 12 bar
• Flow Rate: 4320 Nl/mn
• Material:
  • Valve member – seat: Self-lubricating acetal – ceramic
  • Body: Polyamide reinforced fiberglass
  • Casing / End plates: Anodized aluminum – Painted zinc plated steel
  • Valve plate: Zamak
  • Seals: Nitrile
  • Springs: Stainless steel
  • Screws: Zinc plated steel
  • Function selector top cover / Seal: Polyamide reinforced fiberglass – Polyester
• Working Temperatures: -10 to +60°C
• Connection: Sub-based
