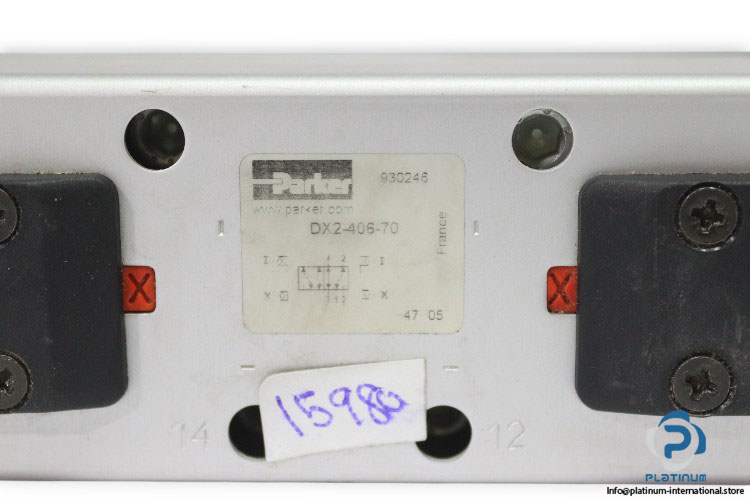

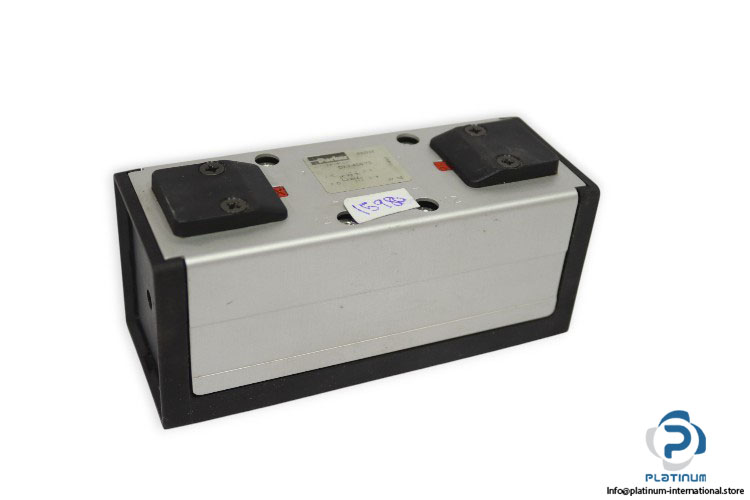

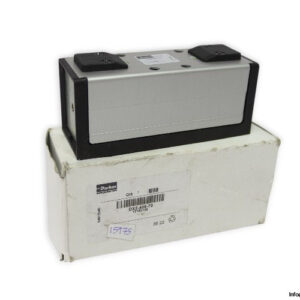

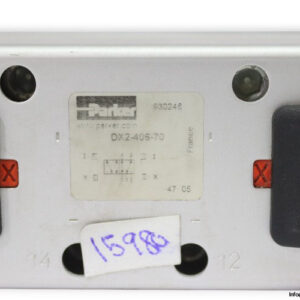

Parker DX240670 Double Solenoid Valve

The Parker DX240670 is a robust double solenoid valve from the ISOMAX DX2 series, designed for reliable pneumatic control in demanding industrial applications. Built with high-quality materials and compliant with ISO 5599-1 and NFE 49-080 standards, this valve ensures long-lasting performance, efficient airflow, and secure operation under varying conditions.

• Manufacturer: Parker
• Type: Double Solenoid Valve
• Model: DX240670
• Part No.: 930246
• Ref. No.: 47 05
• Series: ISOMAX DX2

Technical Information

• Size: 70 mm
• Function: 5/2 Way
• Media: Air
• Actuator: Electrical
• Standard Subbase: ISO 5599-1 and NFE 49-080
• Operating Pressure: -0.9 to 12 bar
• Piloting Pressure: 2 to 12 bar
• Flow Rate: 4320 Nl/mn
• Material:
  • Valve Member – Seat: Self-lubricating acetal – Ceramic
  • Body: Polyamide reinforced fiberglass
  • Casing – End Plates: Anodized aluminum – Painted zinc plated steel
  • Valve Plate: Zamak
  • Seals: Nitrile
  • Springs: Stainless steel
  • Screws: Zinc plated steel
  • Function Selector Top Cover – Seal: Polyamide reinforced fiberglass – Polyester
• Working Temperatures: -10 to +60°C
• Connection: Sub-based
