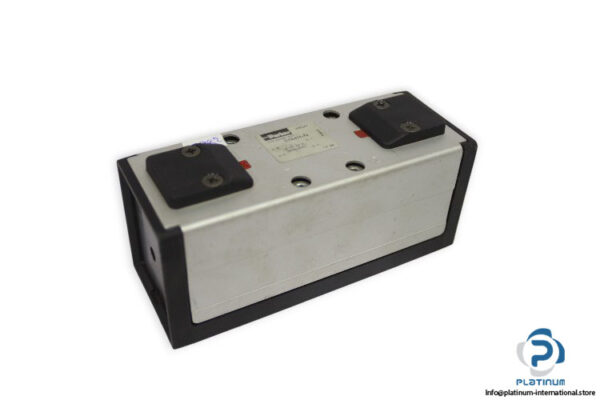

Parker DX2-411-70 Double Solenoid Valve
The Parker DX2-411-70 Double Solenoid Valve is engineered for reliable air control in industrial automation systems. With a robust construction, ISO-standard compatibility, and precise 5/3 way function, this valve ensures efficient pneumatic performance under demanding conditions.
- Manufacturer: Parker
- Type: Double Solenoid Valve

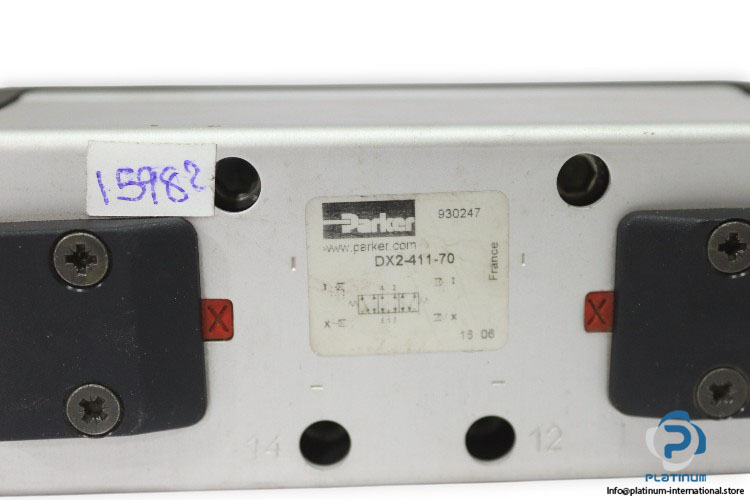

- Model: DX2-411-70 / DX2.411.70
- Part No.: 930247
- Ref. No.: 16 06
- Series: DX2
Technical Information
- Size: 70 mm
- Function: 5/3 Way
- Media: Air
- Actuator: Electrical
- Standard Subbase: ISO 5599-1 and NFE 49-080
- Operating Pressure: -0.9 to 12 bar
- Piloting Pressure: 2 to 12 bar
- Flow Rate: 4320 Nl/mn
- Material:
- Valve Member – Seat: Self-lubricating acetal – ceramic
- Body: Polyamide reinforced fiberglass
- Casing – End Plates: Anodized aluminum – Painted zinc plated steel
- Valve Plate: Zamak
- Seals: Nitrile
- Springs: Stainless steel
- Screws: Zinc plated steel
- Function Selector Top Cover – Seal: Polyamide reinforced fiberglass – Polyester
- Working Temperatures: -10 to +60°C
- Connection: Sub-based
