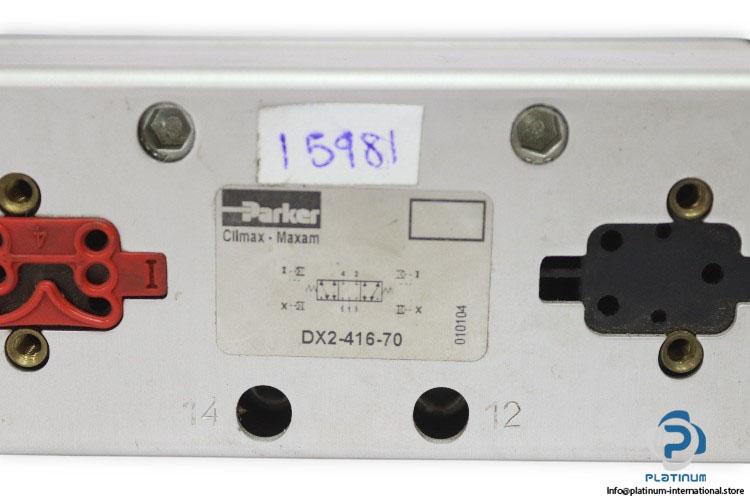

Parker DX2 Double Solenoid Valve

The Parker DX2 series double solenoid valve is a robust, high-flow pneumatic solution for demanding industrial automation. Featuring a 5/3 way function, ISO 5599-1 sub-base compatibility, and durable construction materials, it delivers reliable switching performance across a wide operating pressure and temperature range.

• Manufacturer: Parker
• Type: Double Solenoid Valve
• Model: DX241670 / DX2.416.70
• Part No.: 010104
• Series: DX2

Technical Information

• Size: 70 mm
• Function: 5/3 Way
• Media: Air
• Actuator: Electrical
• Standard Subbase: ISO 5599-1 and NFE 49-080
• Operating Pressure: -0.9 to 12 bar
• Piloting Pressure: 2 to 12 bar
• Flow Rate: 4320 Nl/mn
• Material “ Valve Member / Seat: Self-lubricating acetal / Ceramic
• Material “ Body: Polyamide reinforced fiberglass
• Material “ Casing / End Plates: Anodized aluminum / Painted zinc plated steel
• Material “ Valve Plate: Zamak
• Material “ Seals: Nitrile
• Material “ Springs: Stainless steel
• Material “ Screws: Zinc plated steel
• Material “ Function Selector Top Cover / Seal: Polyamide reinforced fiberglass / Polyester
• Working Temperatures: -10 to +60°C
• Connection: Sub-based
