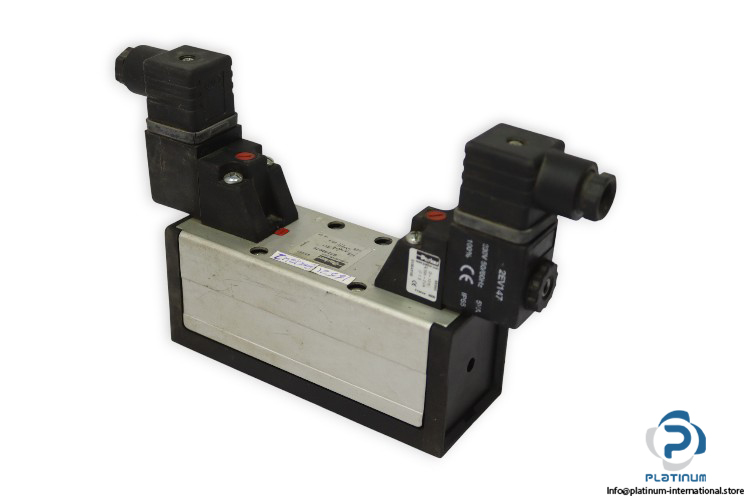

PARKER DX2-606-70 Double Solenoid Valve
The PARKER DX2-606-70 Double Solenoid Valve is a durable electro-pneumatic valve built for precision air control and reliable switching in industrial automation systems. Its robust construction ensures consistent performance under demanding conditions.
Manufacturer: PARKER
Type: Double Solenoid Valve

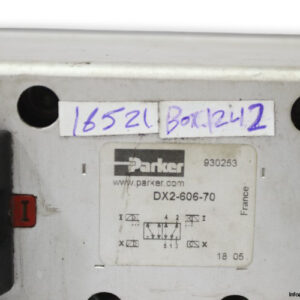

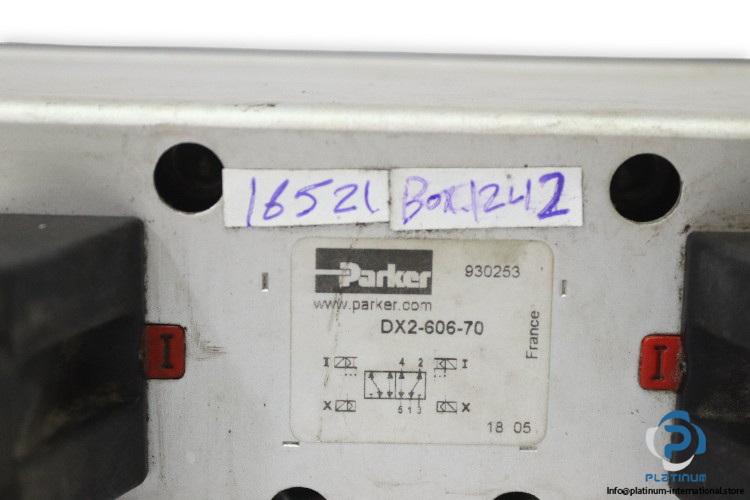

Model: DX2-606-70
Reference Number: 930253
Size: 2
Technical Information
- Type of Actuation: Electro-Pneumatic
- Maximum Operating Pressure: 10 bar
- Function: 5 by 2
- Fluid: Air
- Connection: Sub based
- Body: Polyamide reinforced fibreglass
- Casing and End Plates: Anodised aluminium, painted zinc, plated steel
- Ambient Temperature: minus 10 to 60 degree Celsius

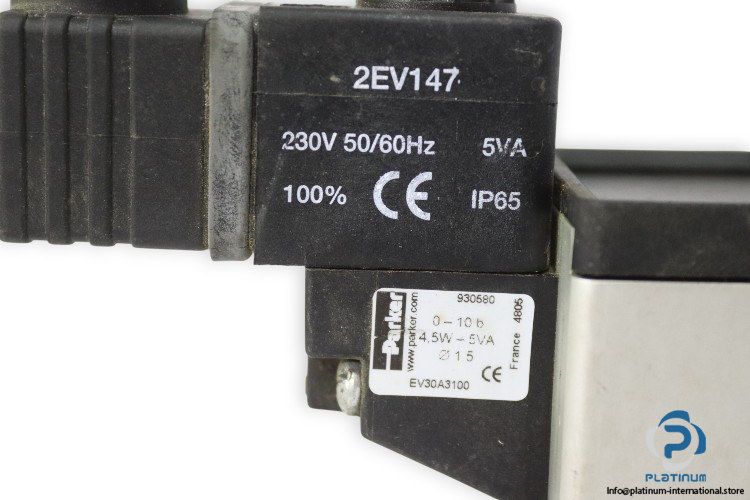

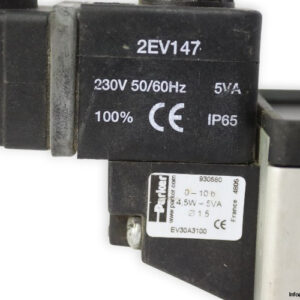

- Attached With: 2EV147 Solenoid Coil
- Valve Model: EV30A3100
- Reference Number: 930580
- Operating Pressure Range: 0 to 10 bar
- Coil Voltage: 230 V AC, 50 or 60 Hz
- Power: 5 VA
- Port Size: diameter 15 millimeters
- Operation: 100 percent duty cycle
- Protection Degree: IP65
