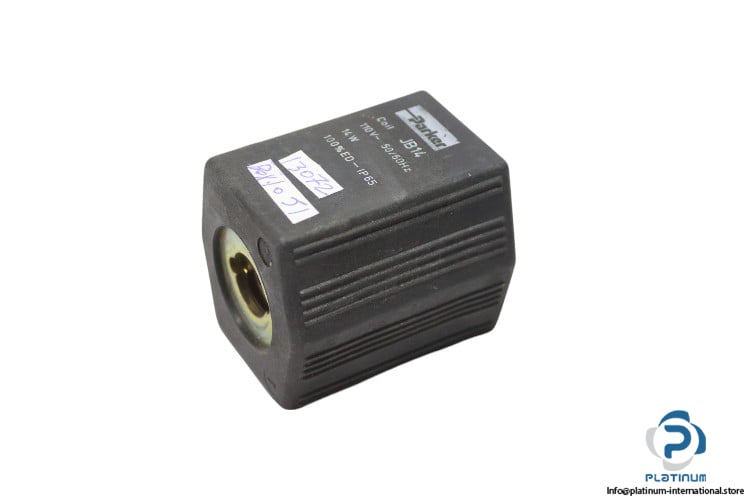

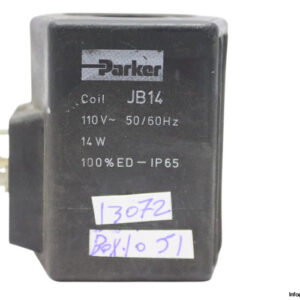

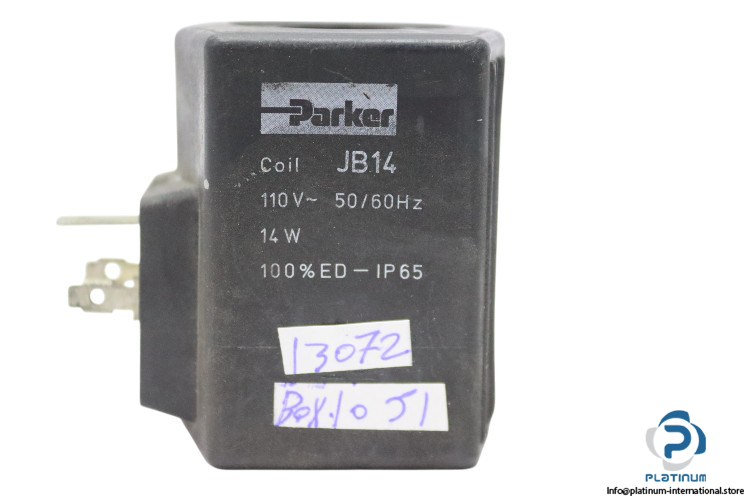

Parker JB 14 Electrical Coil

The Parker JB 14 Electrical Coil is a high-performance coil designed for industrial applications. With a voltage of 110 VAC and power consumption of 14 W, this coil offers excellent durability and high insulation class for safe and efficient operation. It is molded in thermoplastic polyester with 30% glass fiber for enhanced strength and reliability.

Manufacturer: PARKER

Type: Electrical Coil

Model: JB 14

Technical Data:

• Voltage: 110 VAC
• Frequency: 50/60 Hz
• Power: 14 W
• Electrical Connection: 3-pin
• Connector: DIN 43650 A “ PG 9 or PG 11
• Plug Design: Cylindrical
• Inner Diameter: 14.2 mm
• Length: 55 mm
• Solenoid Coil Material: Molded in thermoplastic (polyester) with 30% glass fiber
• Insulation Class: F (155°C)
• Protection Class: IP65
