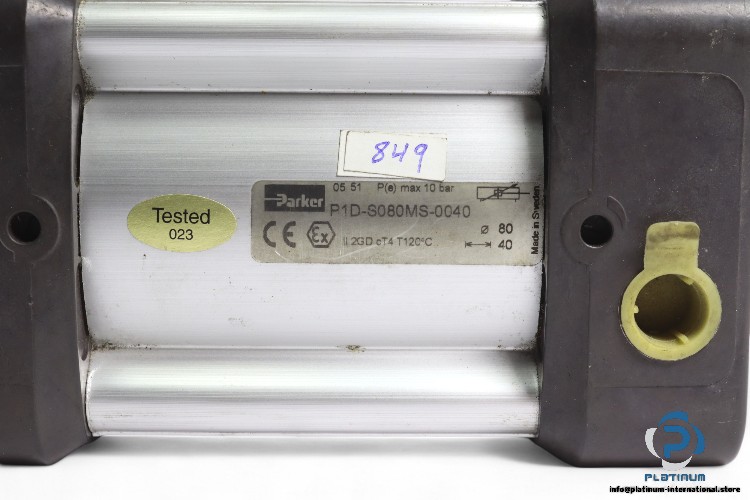

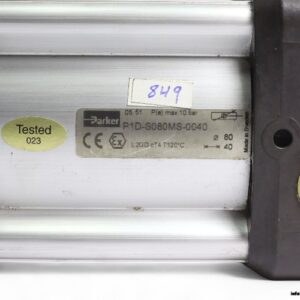

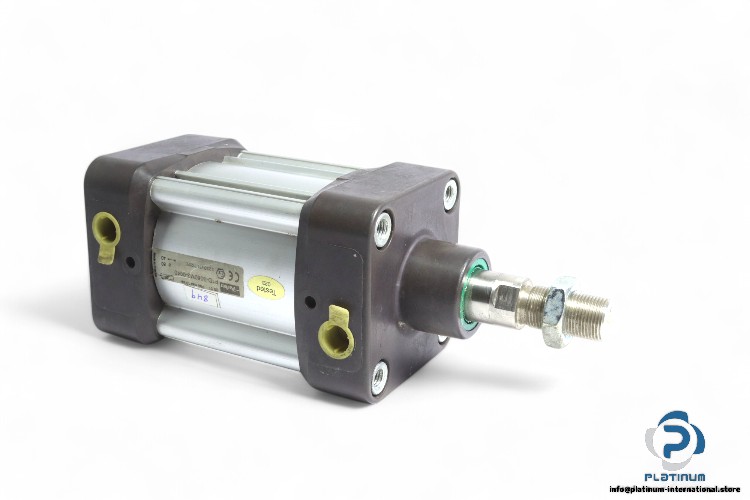

Manufacturer: PARKER
Type: ISO Cylinder
Model: P1D-S080MS-0040


Media: Compressed Air
Stroke: 40 mm
Bore diameter: 80 mm
Bore X Stroke: 80×40 mm
Rod diameter: 25 mm
Fram Dimensions: 100X200 mm
Pneumatic connection: G3/8
Max pressure: 10 bar
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Sid
