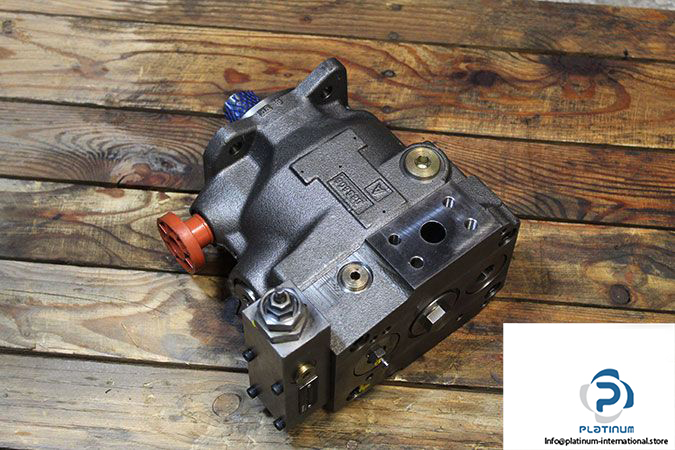

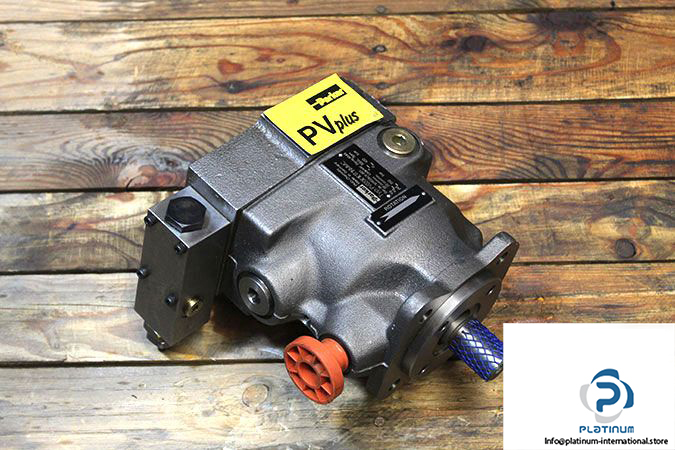

Manufacturer: Parker

Type: Axial Piston Variable Pump

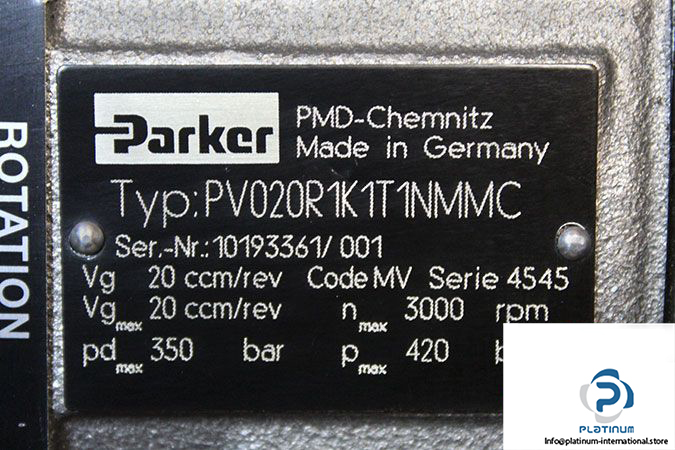

Model: PV020R1K1T1NMMC

Ser.-Nr.: 10193361/001

Size: 20

Max. Displacement: 20 cm³

Output flow at 1500 rpm: 30 l/min

Nominal Pressure: 350 bar

Max. Pressure: 420 bar

Max. Case Drain Pressure: 2 bar

Min. Inlet Pressure: 0,8 bar

Max. Inlet Pressure: 16 bar

Input Power at 1500 rpm and 350 bar: 19,5 kW

Max Speed: 3000 min^-1

Moment of Inertia: 0,0017 kgm²

Viscosity Range: 16 … 100 mm²/s

Weight: 20.4 KG

Attachment: PARKER PVCMAMCN1 COMPENSATOR

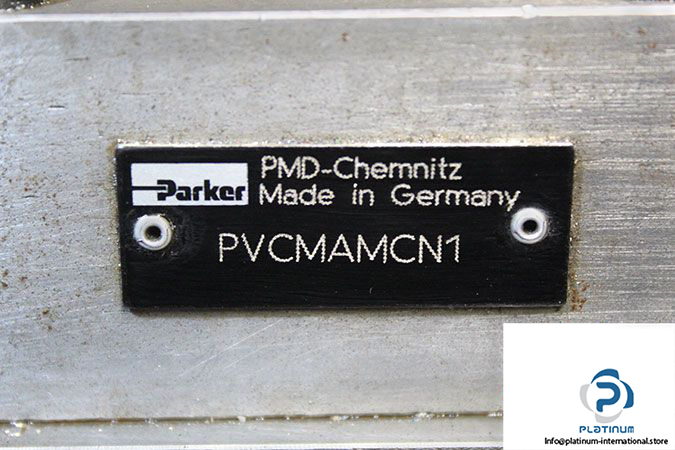

Manufacturer: Parker

Type: Compensator

Model: PVCMAMCN1
