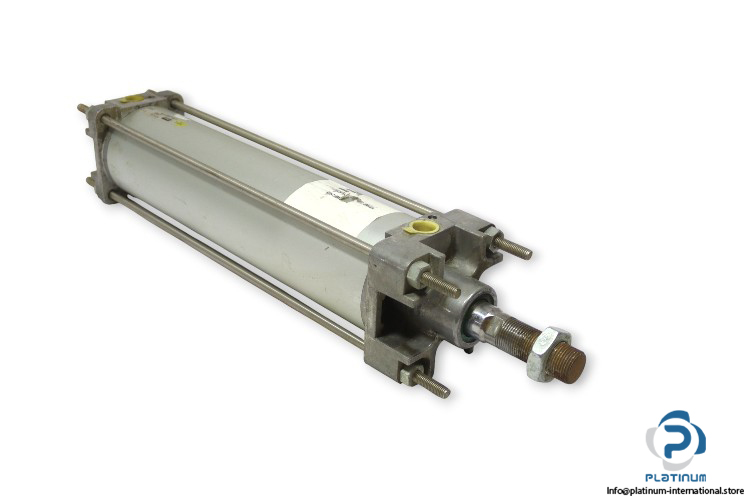

PARKER PXA-T100MCB-0350 Pneumatic Cylinder

The PARKER PXA-T100MCB-0350 Pneumatic Cylinder is a robust double-acting actuator designed for high-performance industrial automation. It provides precise linear motion and long service life for demanding pneumatic systems.

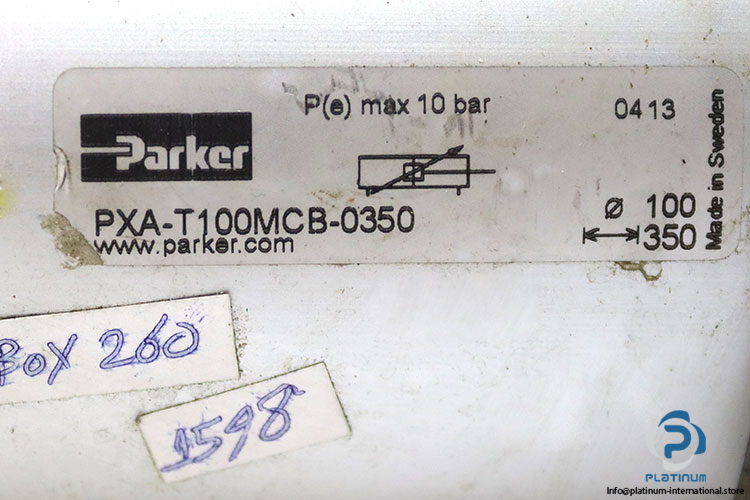

Manufacturer: PARKER
Type: Pneumatic Cylinder
Model: PXA-T100MCB-0350
Ref No.: 0413
Series: PX

Technical Information

• Media: Compressed Air
• Bore Diameter: 100 mm
• Stroke: 350 mm
• Bore x Stroke: 100 x 350 mm
• Rod Diameter: 30 mm
• Frame Dimensions: 115 x 525 mm
• Pneumatic Connection: G 1/2
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
