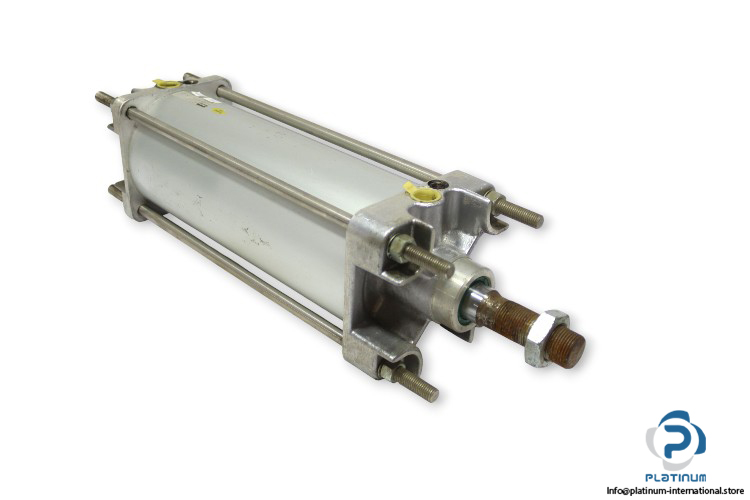

PARKER PXA-T125MTB-0270 Pneumatic Cylinder

The PARKER PXA-T125MTB-0270 Pneumatic Cylinder is a robust and precise actuator designed for efficient linear motion in industrial automation systems. Its strong construction and reliable double-acting operation ensure consistent performance and long service life.

Manufacturer: PARKER
Type: Pneumatic Cylinder

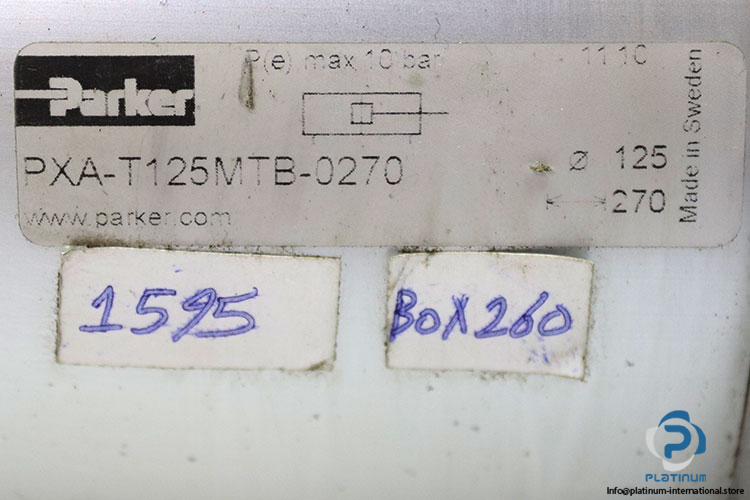

Model: PXA-T125MTB-0270
Series: PXA

Technical Information

• Media: Compressed Air
• Bore Diameter: 125 mm
• Stroke: 270 mm
• Bore x Stroke: 125 x 270 mm
• Rod Diameter: 30 mm
• Frame Dimensions: 135 x 450 mm
• Pneumatic Connection: G 1/2
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
