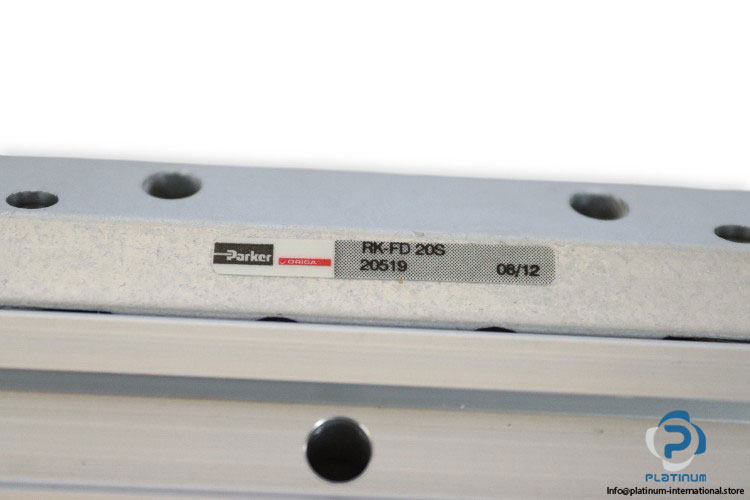

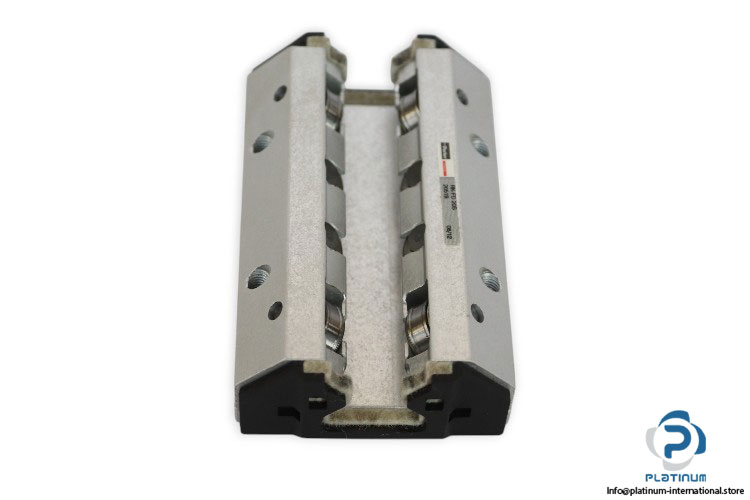

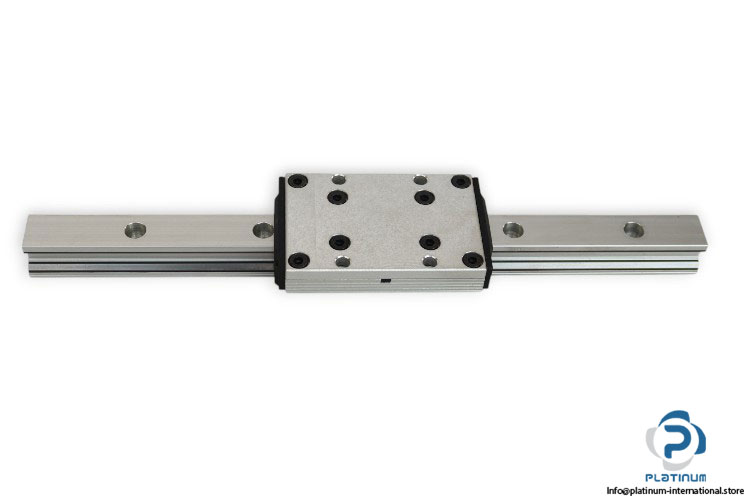

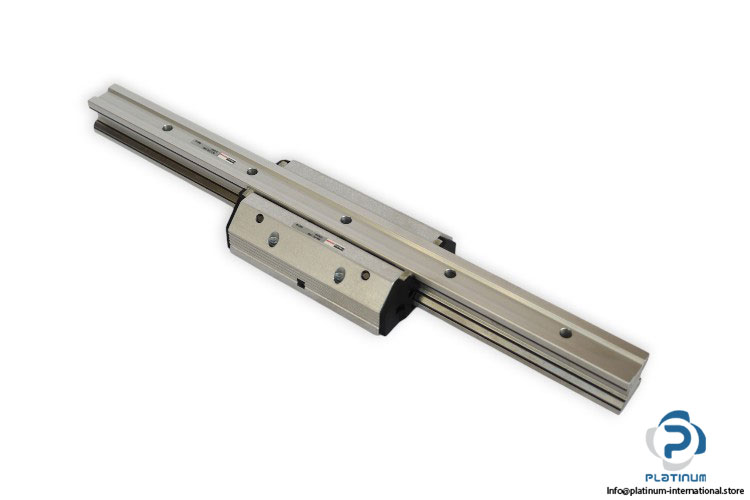

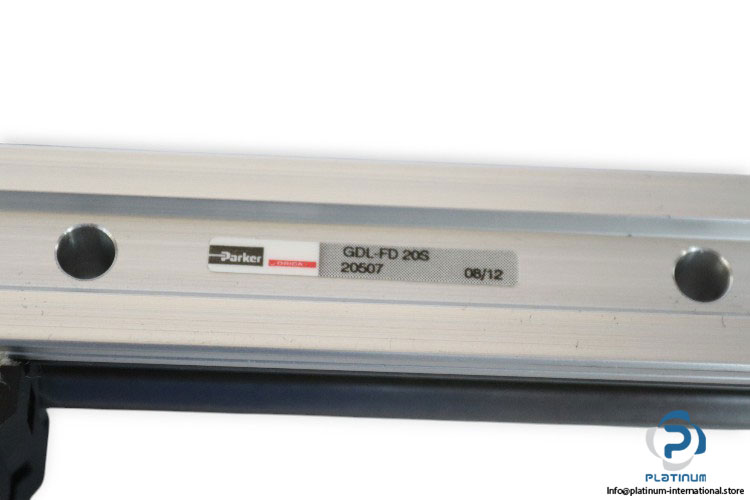

Parker Linear Roller Guide RK-FD 20S (Double Rails)
The Parker RK-FD 20S Linear Roller Guide is a precision-engineered guide designed to provide smooth and accurate linear motion. With double rails for enhanced stability, this 20 mm size guide is ideal for high-load applications requiring reliability and durability.
🔧 Technical Specifications:
- Manufacturer: Parker
- Type: Linear Roller Guide (Double Rails)
- Model: RK-FD 20S
- Size: 20 mm

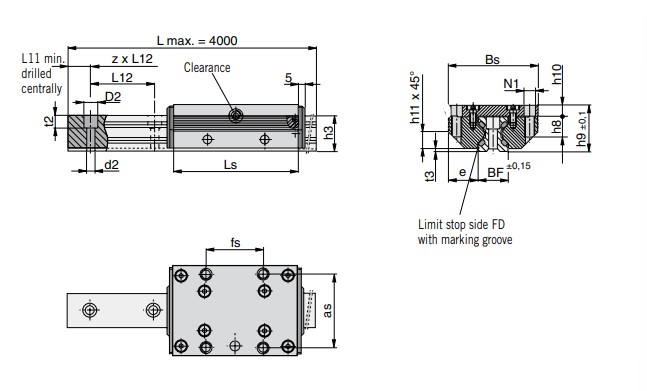

- Total Height h9: 30 mm
- Block Width Bs: 63 mm
- Block Length Ls: 92 mm
- Rail Height h3: 22.6 mm
- fs: 40 mm
- BF: 21 mm
- d2: 5.5 mm
- D2: 10 mm
- Basic Load Ratings, Linear:
- Dynamic Cr: 5400 N
- Static C0r: 5400 N
With its robust build and precision-guided design, the Parker RK-FD 20S is ideal for industrial and automation applications.
