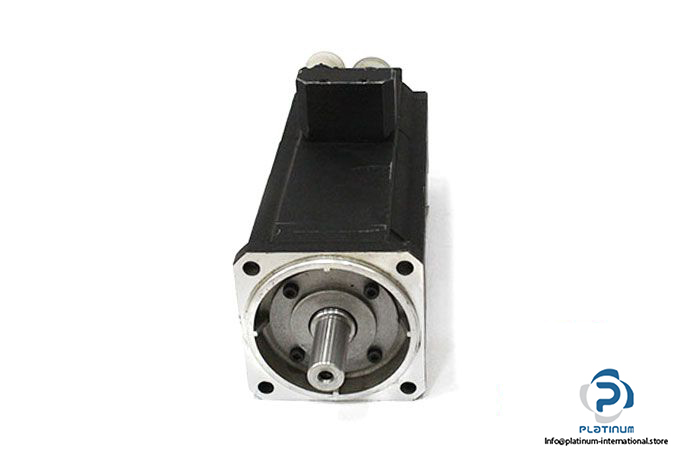

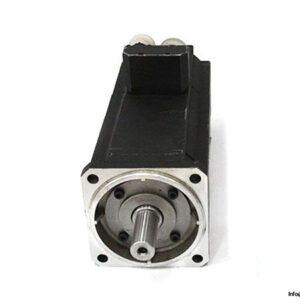

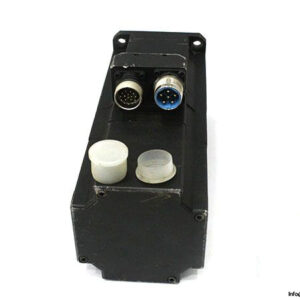

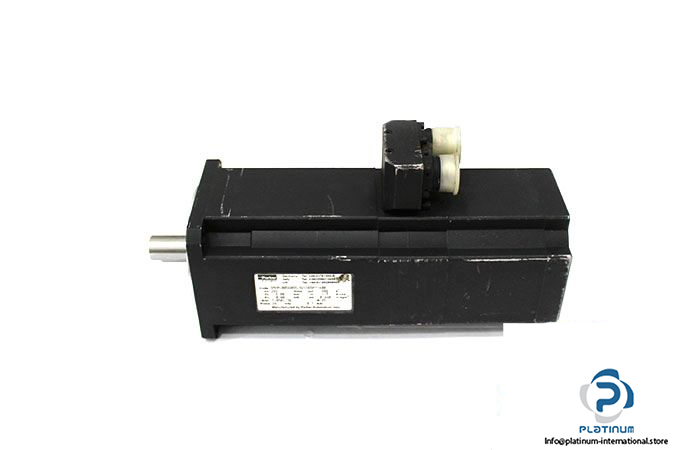

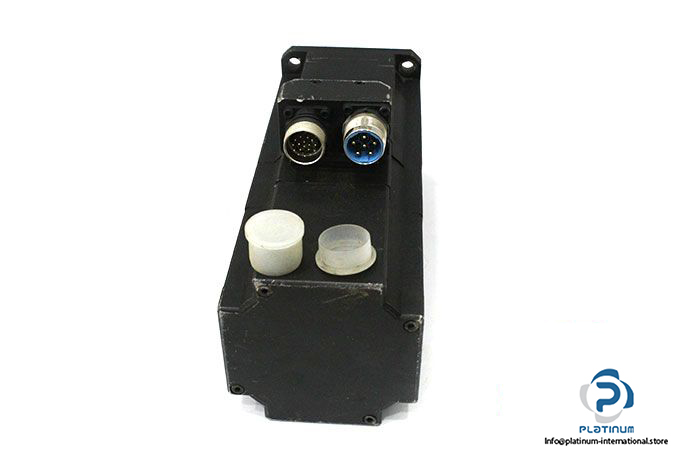

Parker SMH A 100 56 06 5 19 2ID 65 A7 Servomotor with Resolver

The **Parker SMH A 100 56 06 5 19 2ID 65 A7** servomotor is designed for precision motion control in demanding applications. Featuring a resolver for precise feedback, this servomotor offers robust performance with a rated voltage of 293 V AC and 6 Nm of rated torque. With an IP65 protection class, it provides high reliability in harsh industrial environments.

Manufacturer: PARKER

Type: Servomotor with Resolver

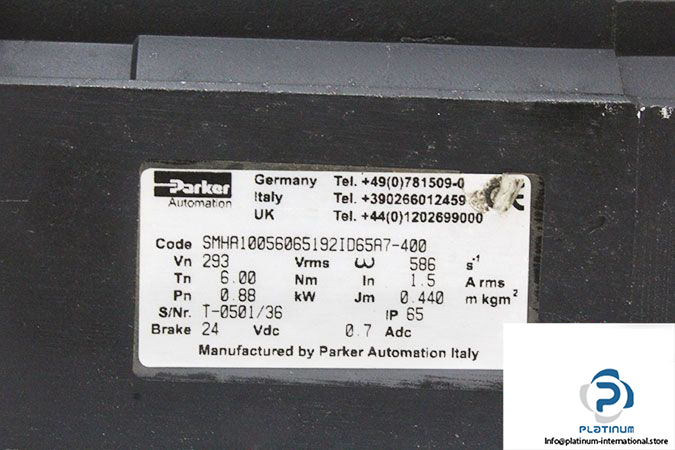

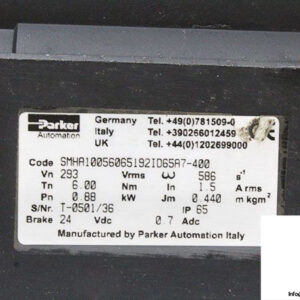

Order Code: SMH A 100 56 06 5 19 2ID 65 A7 – 400

Ref No: T-0501/36

Technical Data:

• Frame Size: 100
• Rated Voltage: 293 V AC
• Rated Current: 1.5 A rms
• Angular Velocity: 586 S-1
• Rated Torque: 6 Nm
• Power Consumption: 0.88 kW
• Rotor Inertia: 0.44 m kgm²
• Brake Voltage: 24 VDC
• Brake Current: 0.7 A
• Protection Class: IP65
