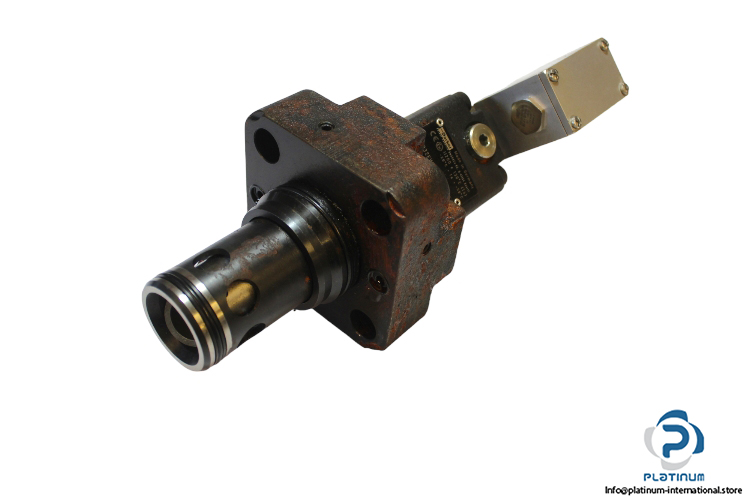

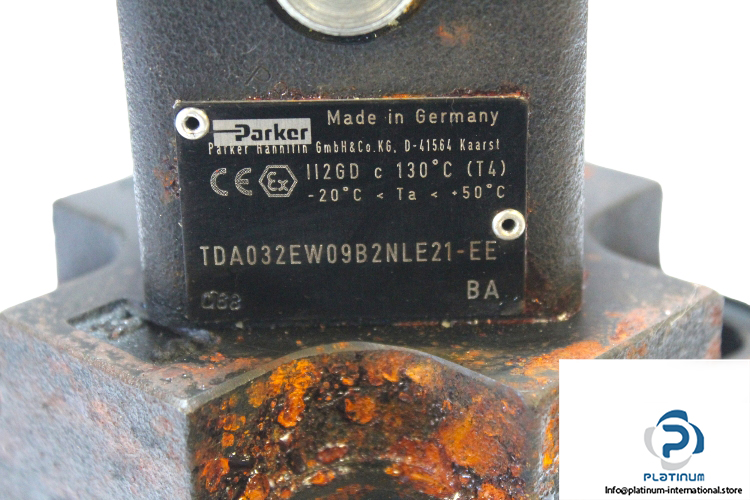

Parker TDA032EW09B2NLE21-EE Proportional Throttle Valve
The Parker TDA032EW09B2NLE21-EE Proportional Throttle Valve is a high-performance hydraulic control component designed for precision flow regulation. With a nominal flow of 950 LPM and a robust design capable of handling up to 350 bar pressure, this valve ensures efficient and reliable operation in demanding industrial applications.
- Manufacturer: Parker
- Type: Proportional Throttle Valve
- Model: TDA032EW09B2NLE21-EE
- Size: NG32
Technical Information
- Ambient Temperature: -20 to +80 °C
- Maximum Operating Pressure Ports A, B, X: 350 bar
- Maximum Operating Pressure Port Y: 10 bar
- Nominal Flow: 950 LPM
- Fluid: Hydraulic Oil
- Hydraulic Connection: Sub-plate
- Attachment: Parker GRFE035AEME01 Solenoid Coil

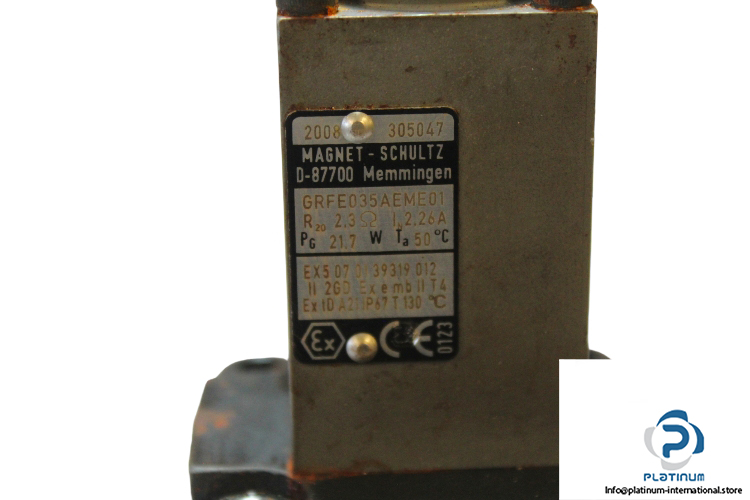

Parker GRFE035AEME01 Solenoid Coil
- Manufacturer: Parker
- Type: Solenoid Coil
- Model: GRFE035AEME01
- Temperature: 50°C
- Current: 2.26 A
Designed for precision hydraulic applications, the Parker TDA032EW09B2NLE21-EE throttle valve ensures optimal control, making it a reliable choice for industrial hydraulic systems.
