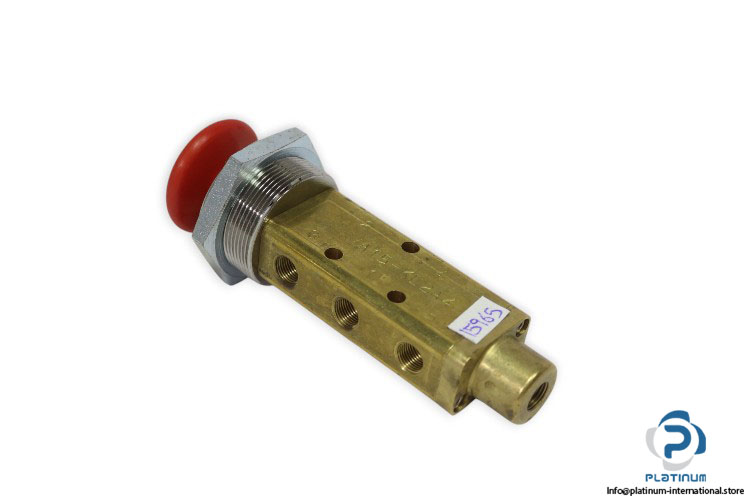

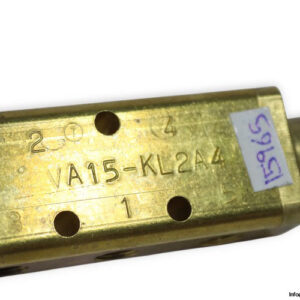

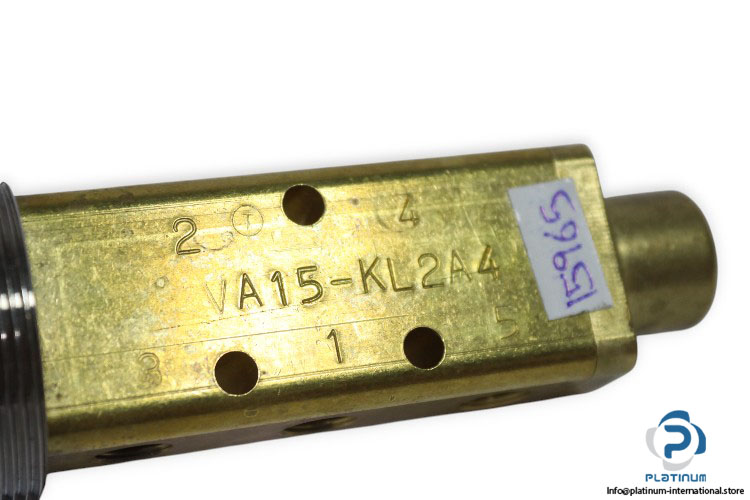

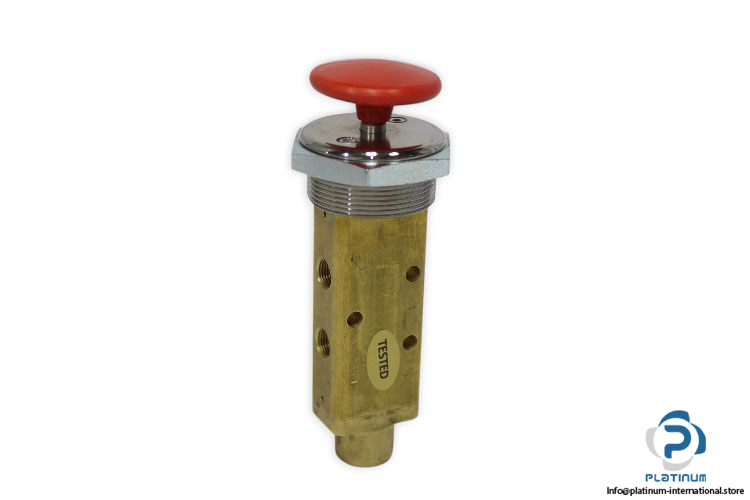

Parker VA15KL2A4 Directional Control Valve
The Parker VA15KL2A4 is a high-quality directional control valve from the VA15 series, designed for efficient and reliable pneumatic applications. With hand actuation and panel mounting, it ensures precise control and long-lasting performance in demanding industrial environments.
- Manufacturer: Parker
- Type: Directional Control Valve
- Model: VA15KL2A4
- Series: VA15
Technical Information
- Type of Actuation: Hand actuated (Knob, Red, two position)
- Return: Knob / Air signal
- Mounting: Panel mounted
- Changeover Force at 6 bar: 8 N
- Connection: G1/8
- Working Temperature: -20 to +70 °C
- Working Pressure: Max 10 bar
- Flow Rate (C): 0.9 Nl/s, bar
- Flow Rate Qn (P1=6 bar, Δp=1 bar): 3.6 l/s
- Flow Rate Qmax: 6.3 l/s
- Cv: 0.21
