Manufacturer: Pepperl+Fuchs

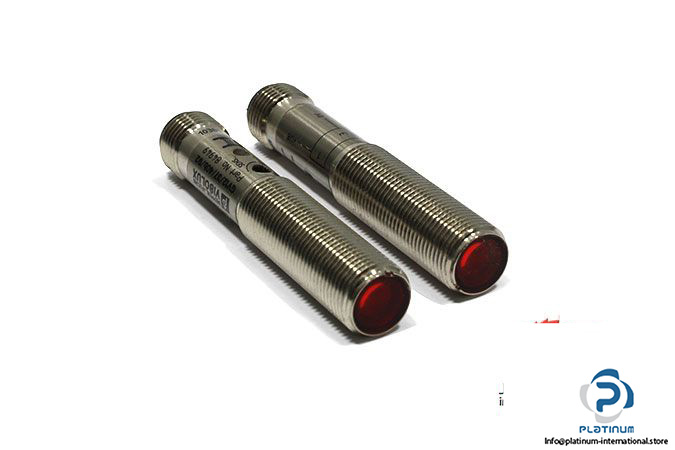

Type: Thru-Beam Sensor

Model: G12/GV12/37/40b/92

Part No.: 084942

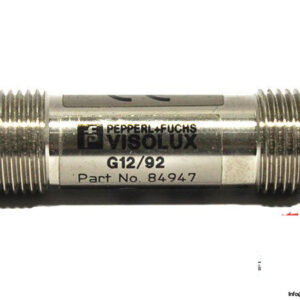

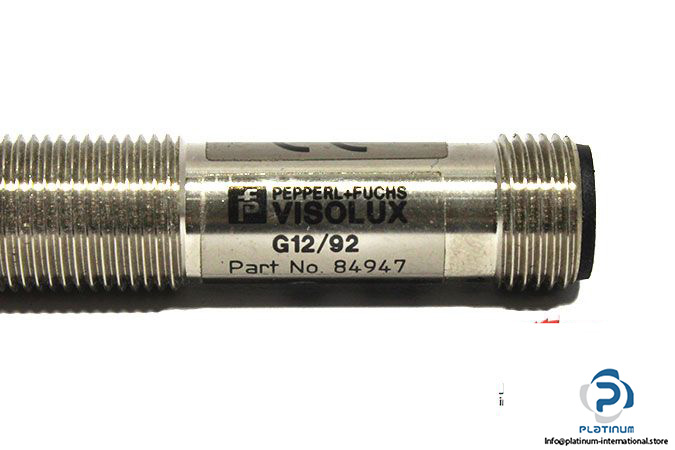

Emitter: G12/92

Part No. Emitter: 84947

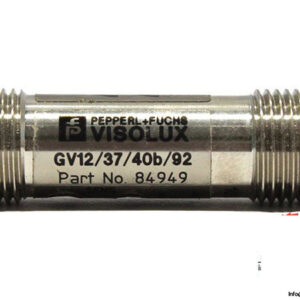

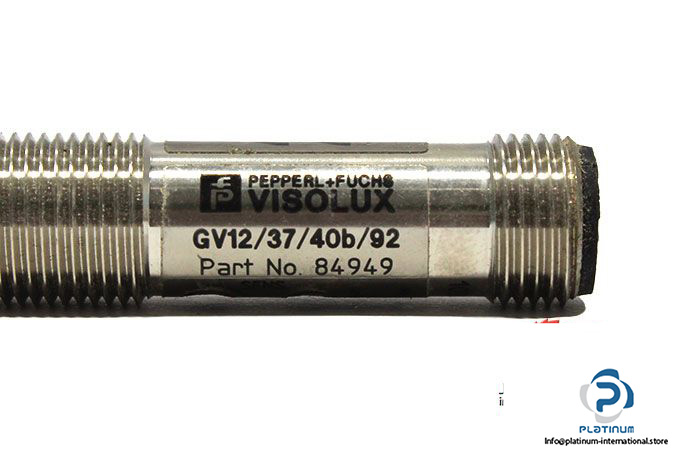

Receiver: GV12/37/40b/92

Part No. Receiver: 84949

Effective Detection Range: 0 … 5000 mm

Operating Voltage: 10 … 30 V DC

Switching Current: Max. 300 mA

No-Load Supply Current I₀: ≤ 20 mA

Voltage Drop U_d: ≤ 3 V

Signal Output: PNP

Switching Type: Light on / Dark on

Control Input: Light on +UB / Dark on: 0V

Switching Frequency f: ≤ 500 Hz

Control Elements: Sensitivity Adjustment

Light Source: LED

Protection Degree: IP67

Ambient Temperature: -25 … 55 °C

Material: Housing: Brass, Nickel-Plated, Optical Face: PMMA

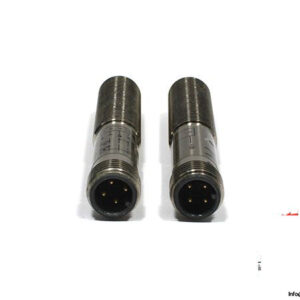

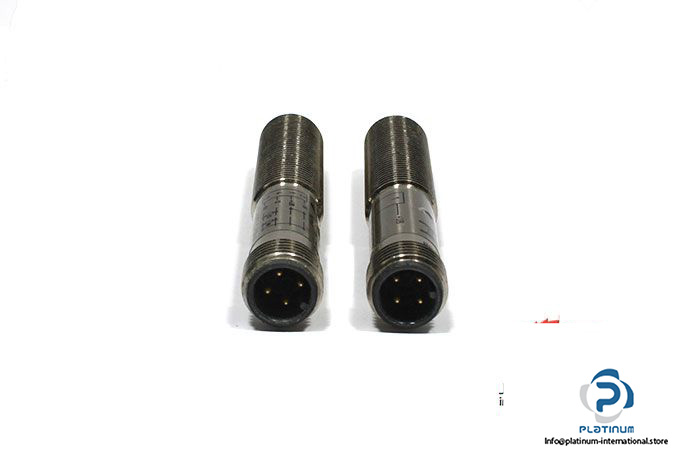

Connection: 4-Pin, M12 x 1 Connector

Diameter, Length: 12, 65 mm

Weight: 0.08 kg
